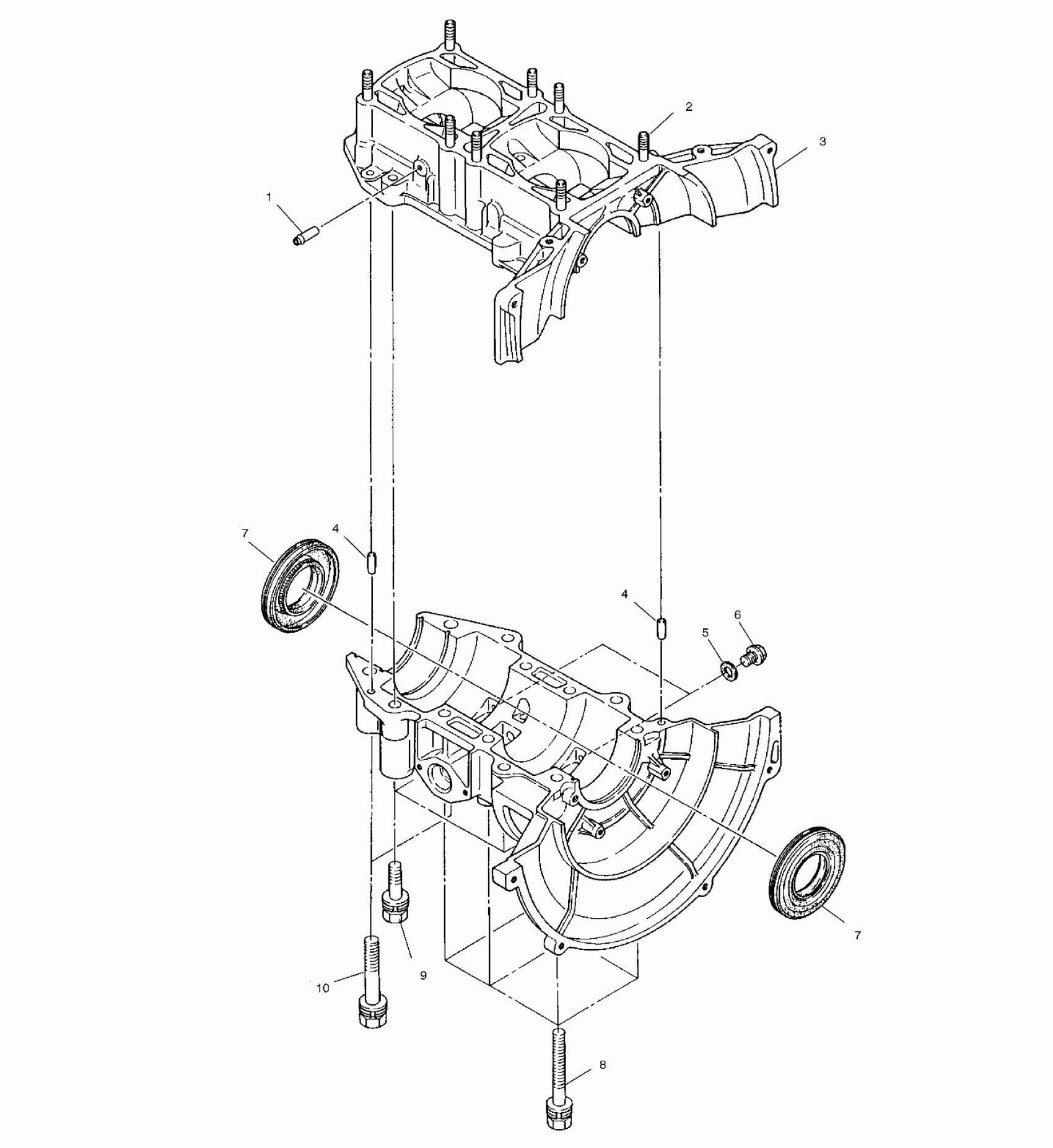

Polaris INDY 340 DELUXE - S02LD3AS CRANKCASE - S02LD3AS (4968406840B14) Diagram

#

Description
Price

1

PIPE, PULSE

3083798

$9.52

2

Stud

3083564

$11.90

3

Asm., Crankcase (Incl. 1-4,8-10)

3083980

Unavailable

4

Pin, Dowel

3080103

$7.14

4

Pin, Dowel

3080103

$7.14

5

Gasket

3082758

$1.19

6

Bolt, Flange

3083568

$3.85

7

Seal, Oil

3083045

$36.41

7

Seal, Oil

3083045

$36.41

8

Bolt and Washer

3080739

$6.39

9

Bolt and Washer

3083566

$1.54

10

Bolt and Washer

3083565

$3.98
