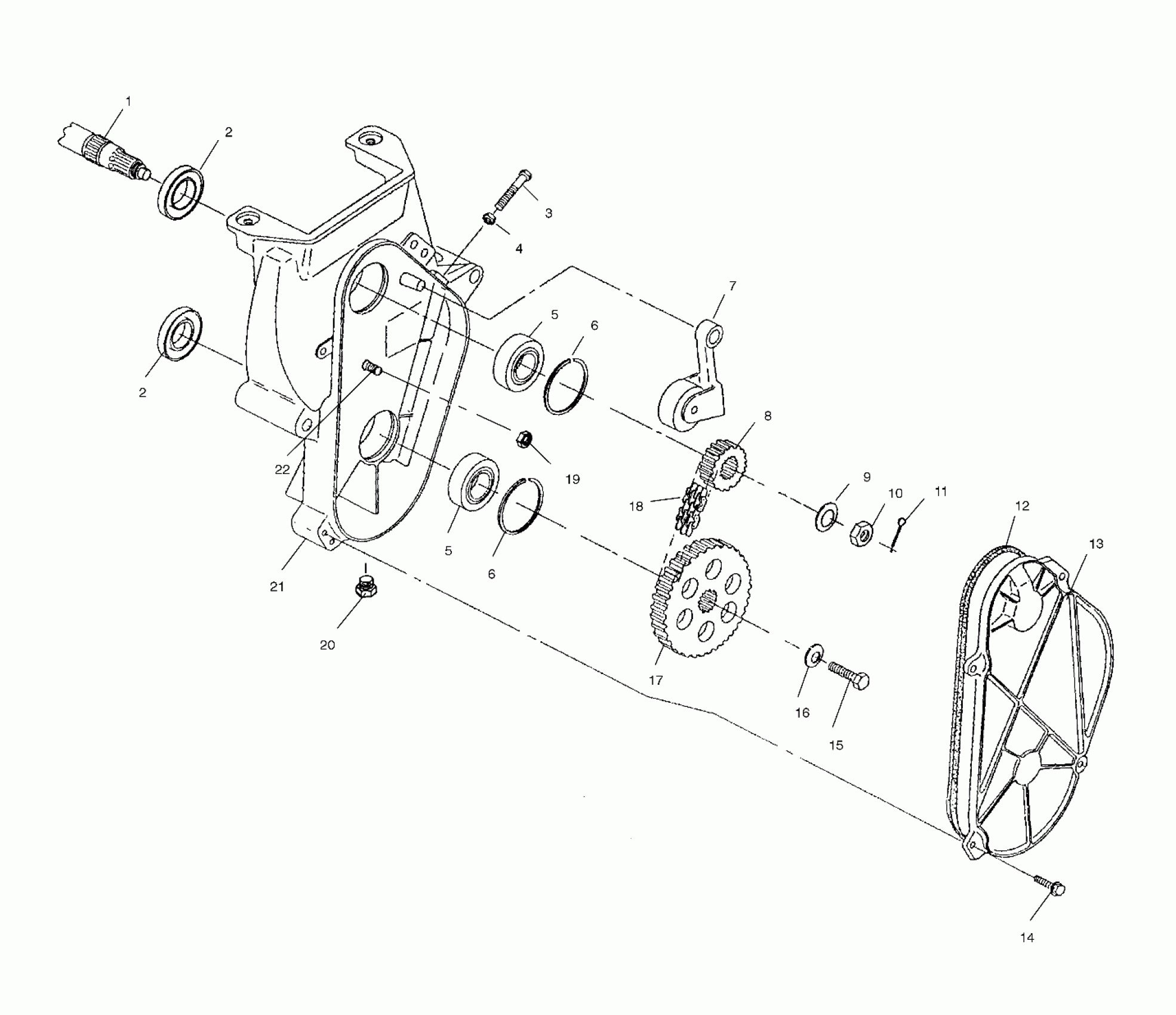

Polaris INDY 340 DELUXE - S02LD3AS CHAINCASE - S02LD3AS (4968406840B03) Diagram

#

Description
Price

1

Asm., Jackshaft (See Drive Train Pg. B4, Ref. 14)

-------

Unavailable

2

SEAL-OIL

3610030

$20.22

2

SEAL-OIL

3610030

$20.22

3

Screw

7515551

$6.39

4

NUT

7542404

$1.59

5

BEARING, BALL

3514309

$15.87

5

BEARING, BALL

3514309

$15.87

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

Pin, Chain Tightener

7662210

Unavailable

7

Bearing, Chaincase Idler

3553002

$11.99

7

Wheel, Idler

5630123

Unavailable

7

WASHER, THRUST

7558702

$1.59

7

Tightener, Gearcase

1332213

$159.99

7

Block, Tightener

-------

Unavailable

8

Sprocket, 17T, 3/4W

3221093

$44.99

9

Washer, Spring

7571620

$7.19

10

Nut, FLEXLOC

7542811

Unavailable

11

PIN, COTTER

7661401

$1.49

12

Gasket, Chaincase

5410277

$24.99

13

Cover, Chaincase

5630968

Unavailable

14

SCREW

7512242

$2.39

15

Bolt

7517979

$3.99

16

Washer, Spring

7571618

$6.39

17

Sprocket, 41T, 3/4W

3222101

$40.46

18

Chain, Silent, 66P

3221113

$124.99

19

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

20

PLUG

7052115

$5.65

21

Chaincase

5132158

Unavailable

22

Screw

7515477

$34.99
