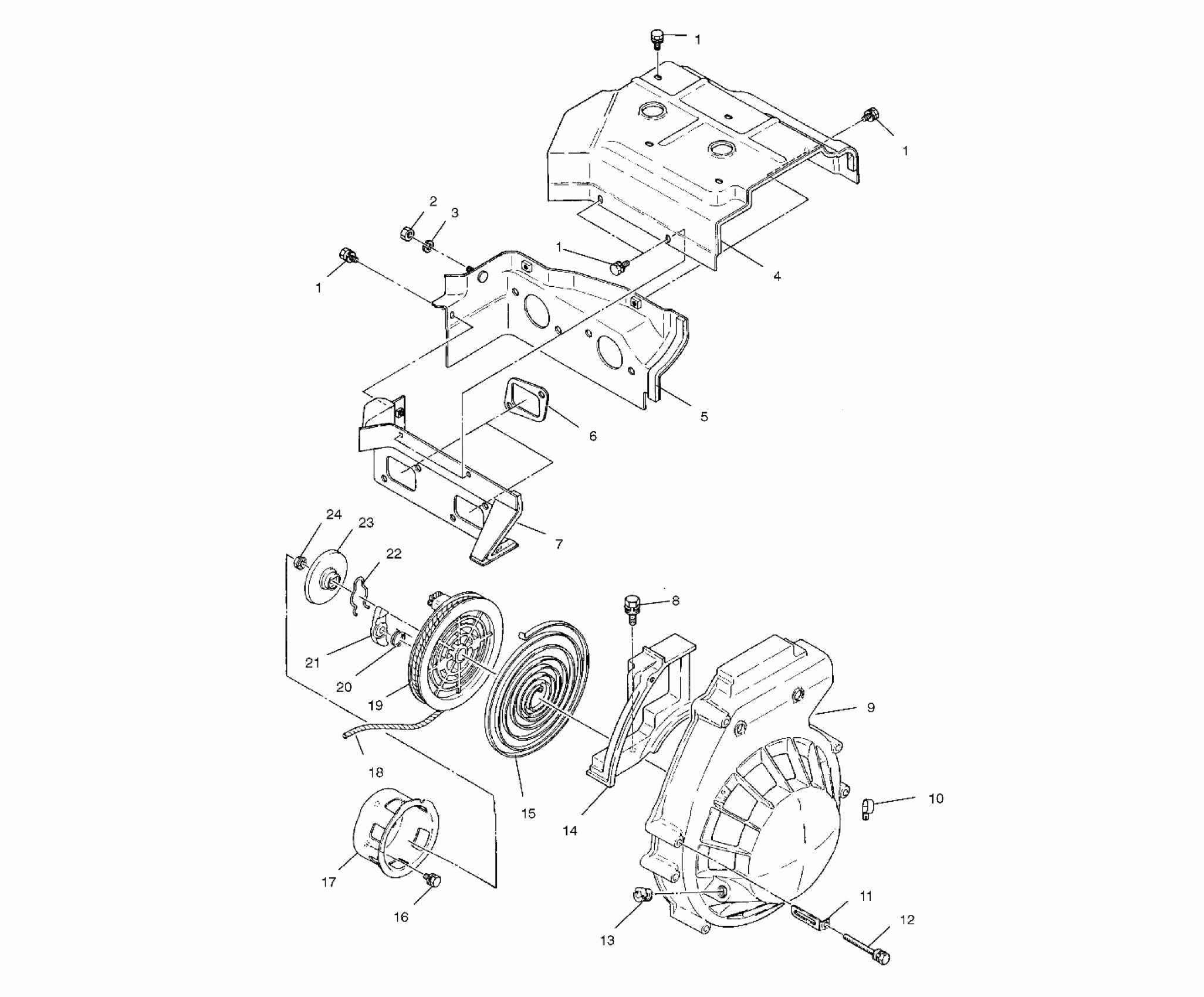

Polaris INDY 340 DELUXE - S02LD3AS BLOWER HOUSING and RECOIL - S02LD3AS (4968406840C03) Diagram

#

Description
Price

1

Bolt and Washer

3083715

$0.63

1

Bolt and Washer

3083715

$0.63

1

Bolt and Washer

3083715

$0.63

1

Bolt and Washer

3083715

$0.63

2

Nut

3084375

$2.99

3

Washer, Spring

3080077

$2.39

4

Cylinder Baffle No. 1

3084420

Unavailable

5

Cylinder Baffle No. 2

3084421

$79.03

6

Gasket, Intake

3085846

Unavailable

7

Cylinder Baffle No. 3 (Incl. 6-7)

3085847

$81.17

8

Bolt and Washer

3081663

$1.49

9

Starter Case

3083589

$148.79

9

Asm., Recoil Starter (Incl. 9,13,15,18-24)

3083588

Unavailable

10

CLAMP-CABLE

7080367

$2.39

11

Clamp

3083590

$3.99

12

Bolt and Washer

3083729

$3.49

13

Guide, Rope

3083107

Unavailable

14

Blower Housing 2

3083591

$17.43

15

Spring, Spiral

3083376

$179.11

16

Bolt and Washer

3081665

$3.19

17

Pulley, Starting

3083108

$29.52

18

Rope, Starter (Bulk, Cut to Fit)

2870621

$34.99

19

Reel

3083377

$56.65

20

Spring, Return

3083463

$4.03

21

Ratchet

3083378

$20.22

22

Spring, Friction

3083379

$24.27

23

Plate, Friction

3083464

$28.32

24

Nut, Flange

3083381

$2.99
