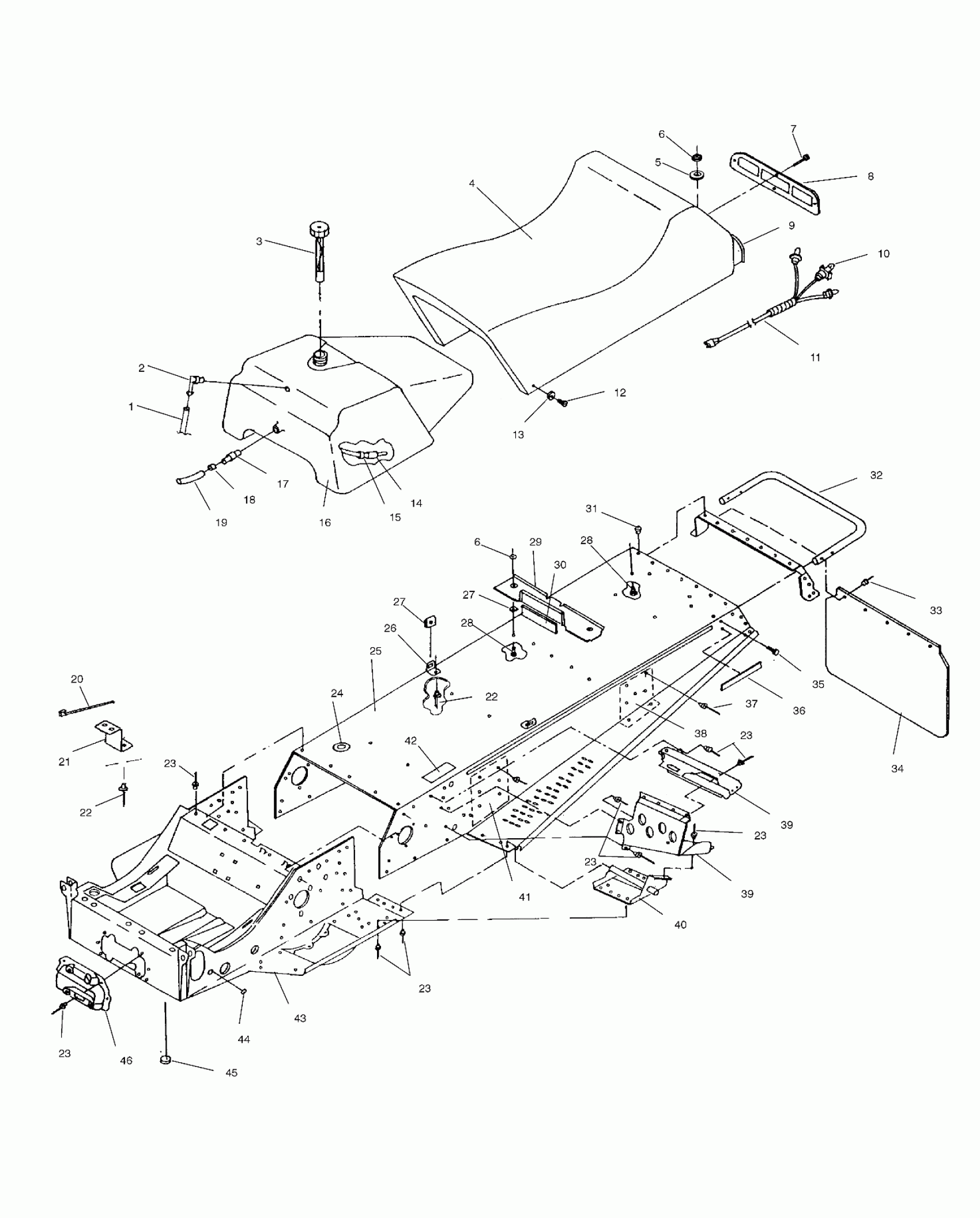

Polaris INDY 340 DELUXE - S00LD3AS TUNNEL and SEAT - S00LD3AS (4953535353a005) Diagram

#

Description
Price

1

FUELLINE,3MMX7MM

8450061-600

Unavailable

2

FITTING,90 DEG,1/8,(10)

7052095

$4.79

3

CAP,GAS,W/GAUGE

2511245

Unavailable

4

CUSHION,SEAT,ASM. (Incl. 7-11)

2682512

Unavailable

4

COVER,SEAT ASM.

2682513

Unavailable

5

WASHER,WROUGHT(10)

7558302

$1.59

6

NUT-LOCK(10)

7542122

$1.49

6

NUT-LOCK(10)

7542122

$1.49

7

SCREW(10)

7511840

Unavailable

8

LENS,TAILLIGHT

5430423

Unavailable

9

HOUSING-TAILLIGHT

5433341

Unavailable

10

Bulb, Brakelight

4030045

Unavailable

10

BULB,TAILLIGHT(10)

4030024

$4.84

11

Harness, Taillight

2460399

Unavailable

12

SCREW(10)

7515111

$7.19

13

WASHER(10)

7555798

$1.49

14

FUEL PICKUP,W/FILTER Substituted by 7052301

7052243

Unavailable

15

RING, COMPRESSION(10)

7080402

$1.60

16

TANK,FUEL,ASM. (Incl. 1,2,14-17)

2520179

Unavailable

17

FITTING - OUTLET(10)

7052023

$24.99

18

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

19

FUEL LINE-ESTER Substituted by 8350019-160

8350019-600

Unavailable

20

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

21

BRKT,STAND,BLK.

5220520-067

$4.13

22

RIVET(50)

7621453

$3.19

22

RIVET(50)

7621453

$3.19

23

RIVET-3/16-.090-.290

7661637

$1.49

23

RIVET-3/16-.090-.290

7661637

$1.49

23

RIVET-3/16-.090-.290

7661637

$1.49

23

RIVET-3/16-.090-.290

7661637

$1.49

23

RIVET-3/16-.090-.290

7661637

$1.49

23

RIVET-3/16-.090-.290

7661637

$1.49

24

GROMMET RUBBER

5410021

Unavailable

25

TUNNEL,SPORT LITE (Incl. 38,41)

1012939

Unavailable

26

BRKT,CONSOLE/SEAT MT.

5222452-067

$25.59

27

SPEED NUT(10)

7670021

$6.99

27

SPEED NUT(10)

7670021

$6.99

28

BOLT(10)

7512193

$2.39

28

BOLT(10)

7512193

$2.39

29

STRAP,GASTANK,BLK.

5222330-067

Unavailable

30

CUSHION,TANK H.D.

5420126

Unavailable

31

RIVET ,(50)

7661836

$0.63

32

BUMPER,REAR,XL,BLK

5224766-067

Unavailable

33

POP RIVET(50)

7621418

$1.49

34

FLAP, SNOW,SILVER Substituted by 5410394-1106

5410394

$121.02

35

SCREW(10)

7512252

Unavailable

36

REFLECTOR ASM,RED

2670133

$5.75

37

RIVET ,(50)

7661837

$1.49

38

PAD,LH,R.SUSP MT,XL

5241670-067

$5.56

38

PAD,RH,R.SUSP.MT,XL

5241671-067

$8.73

39

FOOTREST ASM,LH

1011830

$140.79

39

FOOTREST ASM,RH,(STARLITE)

1011826

Unavailable

39

FOOTREST ASM,LH

1011830

$140.79

39

FOOTREST ASM,RH,(STARLITE)

1011826

Unavailable

40

SUPPORT,LH TRLG.ARM,BLK.

1011792-067

Unavailable

40

SUPPORT,RH TRLG.ARM,BLK.

1011793-067

Unavailable

41

PAD,FR.SUSP.MT,(XL)

5211705-067

$6.63

42

Pad, Air Box

5810502

Unavailable

43

BULKHEAD,BLK

1012587-067

$649.99

44

PLUG, HOLE(10)

7080416

$5.65

45

BUSHING,OPEN/CLOSE(10)

7080399

$2.39

46

MOUNT-RADIUS ROD

5630924

Unavailable
