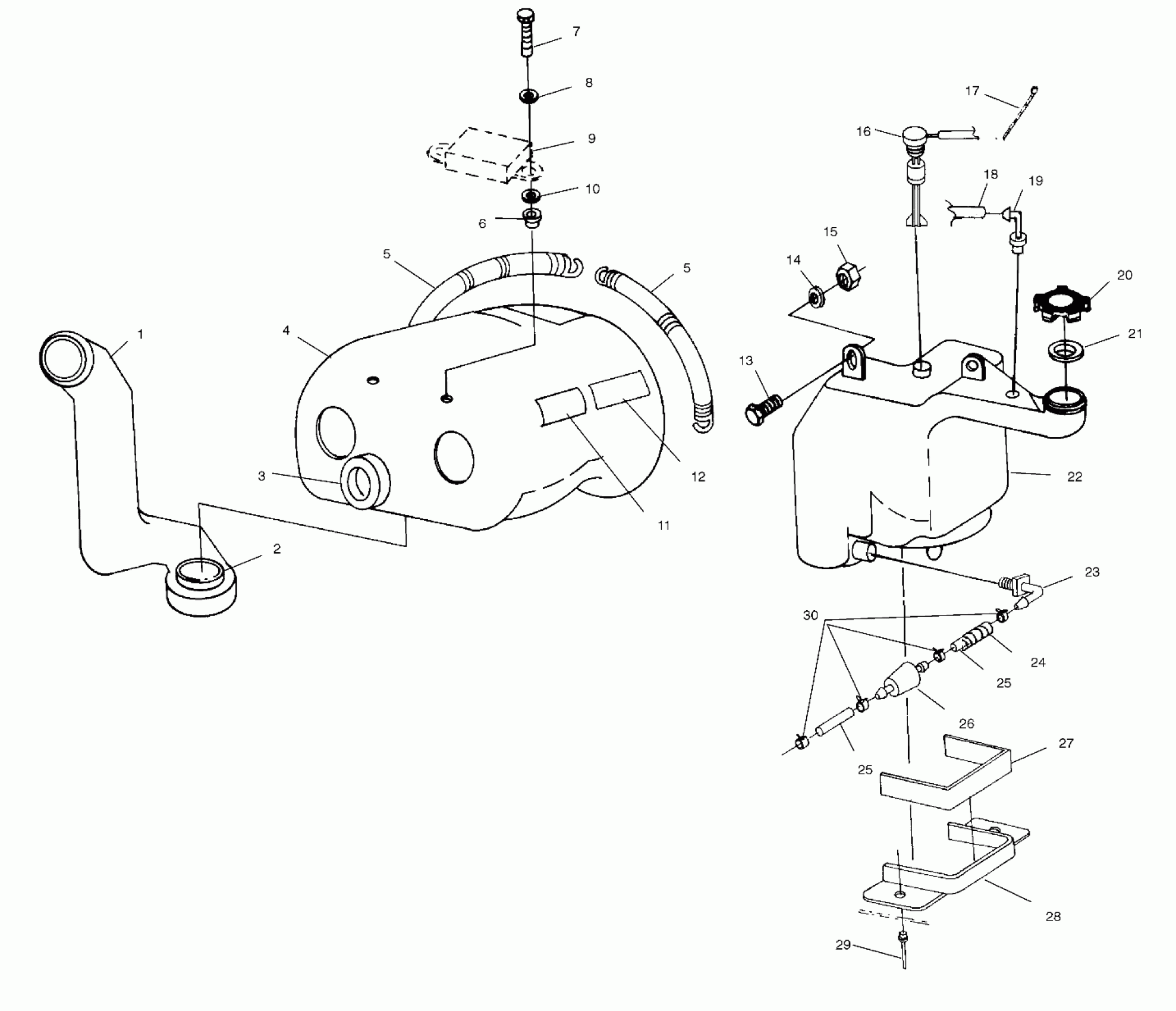

Polaris INDY 340 DELUXE - S00LD3AS OIL TANK / AIR BOX - S00LD3AS (4953535353c001) Diagram

#

Description
Price

1

DUCT, INTAKE

5431354

Unavailable

2

SEAL, O RING,(10)

5410374

$1.83

3

BOOT-SILENCER

5410311

Unavailable

4

SILENCER,INTAKE,DRILLED

5431521

Unavailable

5

SPRING,HOLDDOWN

7041244

$11.79

5

SPRING,HOLDDOWN

7041244

$11.79

6

NUT-WELL(10)

7541923

$5.59

7

SCREW(10)

7512222

$2.39

8

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

9

Asm., Fuel Pump (See Fuel Pump Pg. C6, Ref. 3)

-------

Unavailable

10

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

11

DECAL,INTAKE

7075348

Unavailable

12

DECAL, GREASING [No Longer Available]

7073426

$7.27

13

BOLT(10)

7512240

$3.99

14

WASHER,WROUGHT(10)

7558302

$1.59

15

NUT-LOCK(10)

7542122

$1.49

16

SENSOR,OIL LEVEL

4110134

$72.84

17

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

18

FUELLINE,3MMX7MM

8450061-600

Unavailable

19

FITTING,90 DEG,1/8,(10)

7052095

$4.79

20

CAP,OIL TANK

5430779

$14.56

21

GASKET-OIL CAP

5810141

$2.39

22

TANK,OIL,DRILLED

5431488

$115.99

23

FITTING, OUTLET

7052056

$6.23

24

CONDUIT-CONVOLUTED, 18 CM Substituted by 4010051-30

4010051-18

Unavailable

25

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

25

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

26

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

27

Pad, Oil Tank

5810522

$1.35

28

BRKT,LOW.OILTANK

5222673

Unavailable

29

RIVET(50)

7621453

$3.19

30

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49
