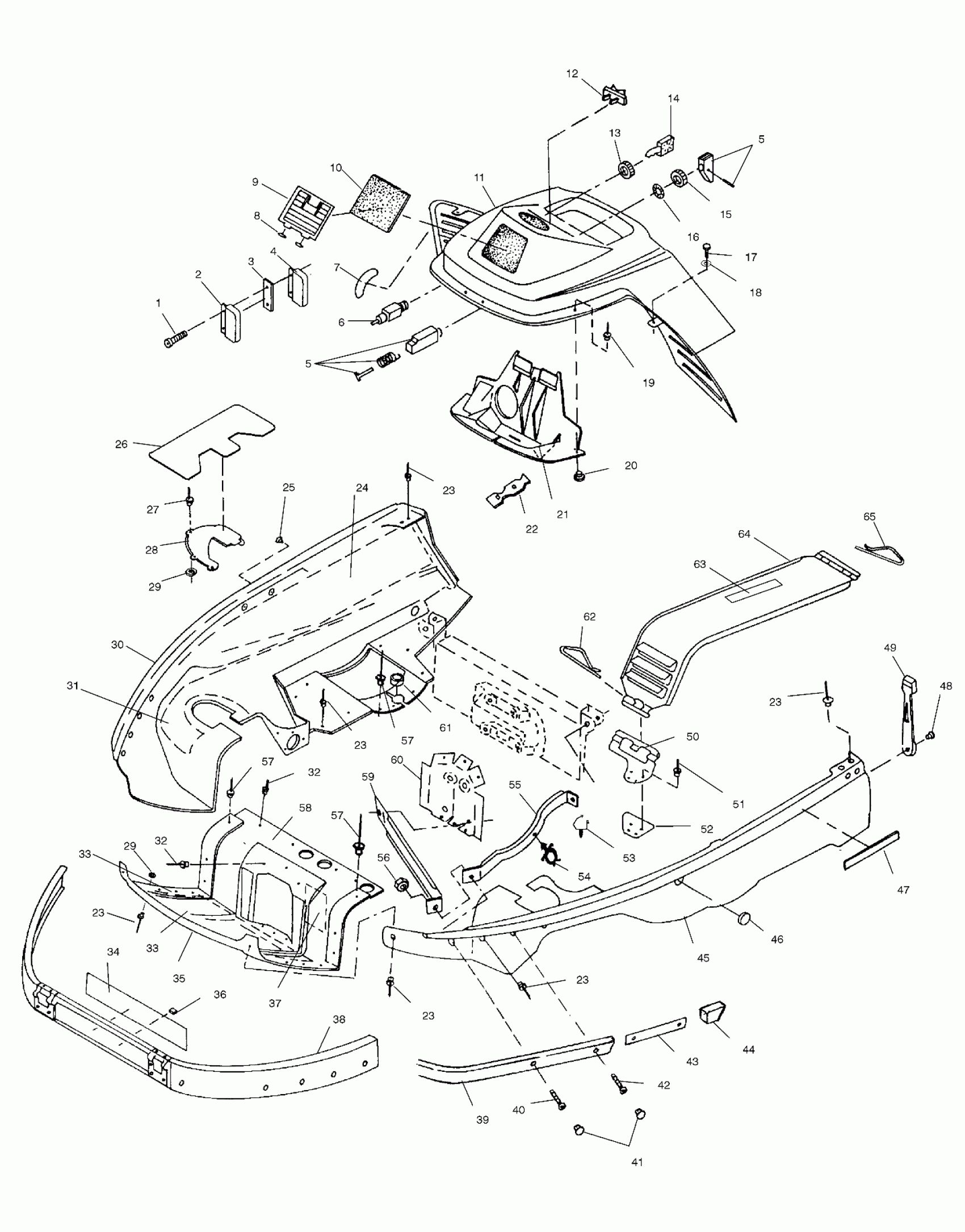

Polaris INDY 340 DELUXE - S00LD3AS NOSEPAN and CONSOLE - S00LD3AS (4953535353a007) Diagram

#

Description
Price

1

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

2

REGULATOR,14 VAC.LR-9

4060122

Unavailable

3

HEAT SINK

5210650

Unavailable

4

RECTIFIER, LR-4

4060104

Unavailable

5

KIT-CHOKE CONTROL

2200188

$24.27

5

CABLE,CHOKE

7080661

Unavailable

5

KIT-CHOKE CONTROL

2200188

$24.27

5

CABLE,CHOKE

7080661

Unavailable

6

SWITCH-E/S

4110061

Unavailable

7

DECAL-FUEL SHUT OFF

7078194

Unavailable

8

SEAL, O RING,(10)

5410374

$1.83

9

LOUVER, INTAKE

5431211-070

Unavailable

10

Foam, Intake

5810458

Unavailable

11

COSOLE-INDY RED,DELUXE

5431636-293

Unavailable

12

INDICATOR,'ACC'WARN.

4040014

Unavailable

12

PLUG,INDIC.HOLE

5430967

$5.65

12

SWITCH,ROCKER,W/INDIC.

4110195

Unavailable

13

NUT,IGNITION

7547034

Unavailable

14

KEY, IGNITION

5410378

$13.75

15

Nut

7080229

$19.99

16

WASHER-LOCK(10)

7571610

$3.99

17

BOLT(10)

7517468

Unavailable

18

WASHER(10)

7558301

$1.49

19

RIVET,(50)

7621336

$1.59

20

RIVET BURR(50)

7555727

$1.49

21

CONSOLE, INNER

5431214-070

$66.39

22

STRAP,TOOL COMPARTMENT

5410425

Unavailable

23

RIVET, BLIND(50)

7621467

$1.49

23

RIVET, BLIND(50)

7621467

$1.49

23

RIVET, BLIND(50)

7621467

$1.49

23

RIVET, BLIND(50)

7621467

$1.49

23

RIVET, BLIND(50)

7621467

$1.49

23

RIVET, BLIND(50)

7621467

$1.49

24

TAPE, FOIL

5810478

Unavailable

25

Clip, Dart

7670067

$3.99

26

TAPE, FOIL,(PAN)

5810482

Unavailable

27

RIVET(50)

7621457

$1.49

28

COVER, RH SHOCK

5431253

Unavailable

28

COVER, LH SHOCK

5431252

Unavailable

29

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

29

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

30

NOSEPAN,RH,INDY RED

5431230-293

Unavailable

31

TAPE, FOIL

5810477

Unavailable

32

RIVET(50)

7621472

$1.49

32

RIVET(50)

7621472

$1.49

33

Tape, Foil

5810475

Unavailable

33

Tape, Foil

5810475

Unavailable

34

SCREEN-FRONT,BLK

5243631-067

$21.43

35

NOSEPAN,CENTER,INDY RED

5431154-293

Unavailable

36

FASTENER-U TYPE CLIP

7670040

$3.99

37

TAPE, FOIL

5810509

Unavailable

38

HINGE,LOWER,BLK.

2635010-067

Unavailable

39

BUMPER-FRONT,INDY RED

5224434-293

Unavailable

40

SCREW(10)

7515102

$4.79

41

PLUG, BUTTON(10)

7080430

$3.51

42

SCREW(10)

7512164

Unavailable

43

PLATE,BUMPER

5222611-067

Unavailable

44

CAP,BUMPER END,LH,RED

5431250-293

$6.63

44

CAP,BUMPER END,RH,RED

5431251-293

Unavailable

45

NOSEPAN,LH,INDY RED

5431229-293

$117.37

46

PLUG,CATCH HOLE

5410582

$7.27

47

REFLECTOR AMBER

2670071

Unavailable

48

RIVET,(50)

7621601

Unavailable

49

STRAP,HOODLATCH

5431501

Unavailable

50

SUPPORT,CLUTCH GD,BLK.

5222332-067

$4.95

51

RIVET(50)

7621449

$3.19

52

PLATE,CLUTCHGUARD,BLK.

5211249-067

$3.49

53

CLIP,OIL LINE RET.(10)

5432302

Unavailable

54

CLIP, PLASTIC(10)

4020139

$4.79

55

BRKT,LH PANBRACE,BLK.

5222339-067

Unavailable

55

BRKT,RH PANBRACE,BLK.

5222340-067

Unavailable

56

NUT-LOCK(10)

7542122

$1.49

57

RIVET(50)

7621479

$1.99

57

RIVET(50)

7621479

$1.99

57

RIVET(50)

7621479

$1.99

58

TAPE, FOIL

5810476

Unavailable

59

BRKT,LH BUMP.BRACE,BLK.

5222345-067

Unavailable

59

BRKT,RH BUMP.BRACE,BLK.

5222346-067

Unavailable

60

BRKT,SUPPORT,BLK.

5222356-067

$38.19

61

SHIELD,NOSEPAN DRAIN HOLE

5811078

Unavailable

62

PIN

5224440

Unavailable

63

DECAL,ENG&CLUTCH(CPSC)

7075350

Unavailable

64

GUARD-CLUTCH

5243761

$53.59

65

PIN, FRONT

7080311

Unavailable
