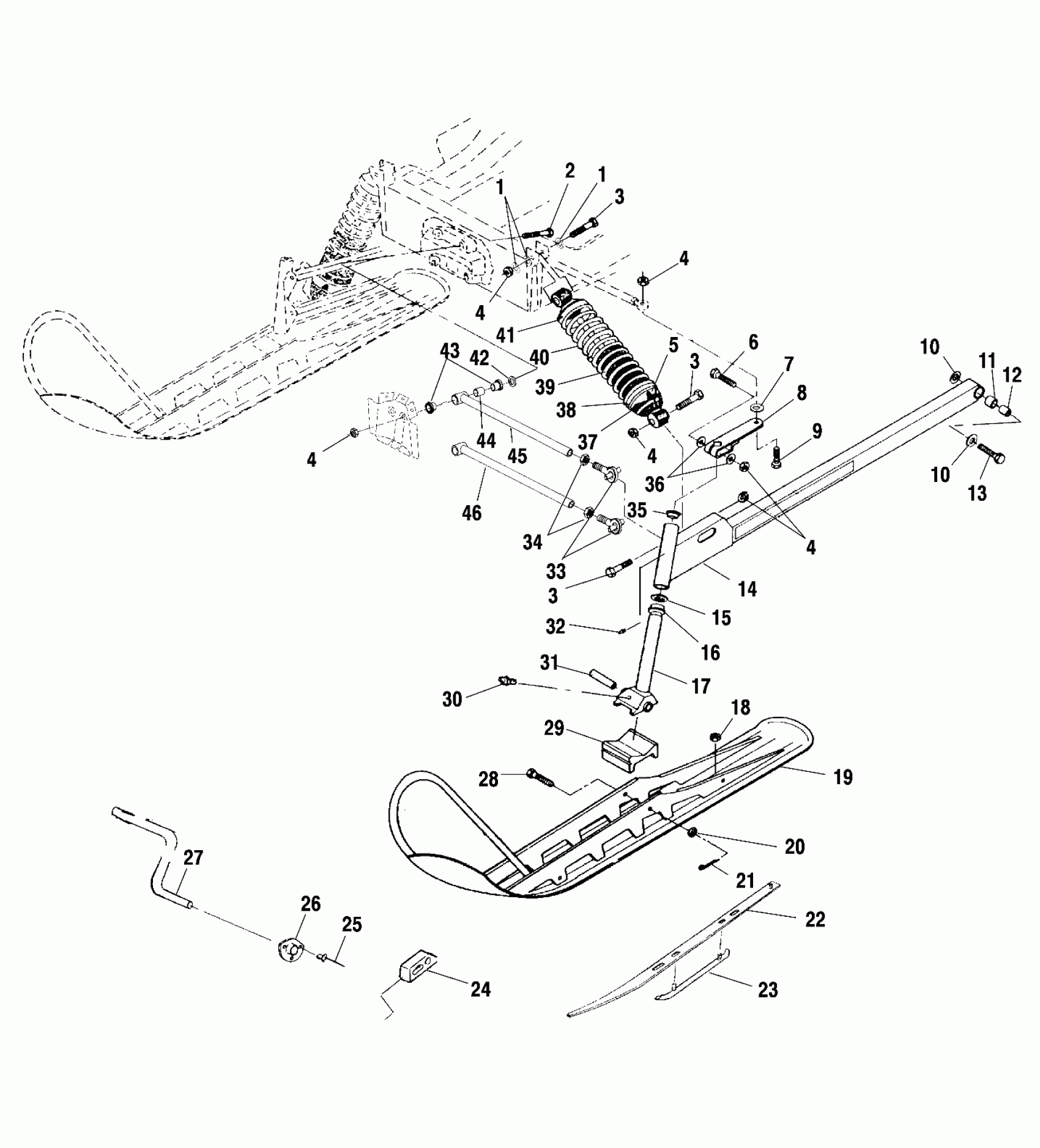

Polaris INDY 340 DELUXE - S00LD3AS FRONT SUSPENSION and SKI - S00LD3AS (4953535353b001) Diagram

#

Description
Price

1

WASHER(10)

7555806

$1.49

1

WASHER(10)

7555806

$1.49

2

BOLT(10)

7515417

$4.79

3

BOLT(10)

7515415

$1.49

3

BOLT(10)

7515415

$1.49

3

BOLT(10)

7515415

$1.49

4

NUT-LOCK(10)

7542439

$1.49

4

NUT-LOCK(10)

7542439

$1.49

4

NUT-LOCK(10)

7542439

$1.49

4

NUT-LOCK(10)

7542439

$1.49

4

NUT-LOCK(10)

7542439

$1.49

5

SHOCK-IFS,NITREX

7041788

Unavailable

6

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

7

WASHER ,(10)

7555976

$3.99

8

Arm, Steering

5220326-067

Unavailable

9

BOLT(10)

7515528

$8.79

10

WASHER(10)

7555721

$1.49

10

WASHER(10)

7555721

$1.49

11

PIVOT-TRAILING ARM

5410382

Unavailable

12

TUBE,TRAILING ARM

5010187

Unavailable

13

BOLT(10)

7512557

$7.60

14

ARM,LH TRLG,BLK.

1823136-067

Unavailable

14

ARM,RH TRLG,BLK.

1823137-067

$266.49

15

WASHER SPECIAL(10)

7556509

$1.59

16

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

17

SPINDLE, BLK.

6230073-067

Unavailable

18

NUT-5/16-18 NYLOK-Y

7542324

$1.49

19

SKI, BLK.

1820333-067

Unavailable

20

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

21

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

22

Plate, Skag

1011829-067

$54.99

23

SKAG, BLK.

1820318-067

$49.99

24

SLIDE-SWAYBAR

5410384

Unavailable

25

RIVET,(50)

7621477

$1.19

26

BUSHING-SWAYBAR

5410383

Unavailable

27

SWAY BAR,9/16,BLK

5243397-067

$53.59

28

BOLT(10)

7515462

$8.79

29

Stop, Rubber

5521231

Unavailable

30

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

31

BUSHING,PIVOT,(10)

5010158

$19.99

32

ZERK,FITTING,THREADED(10)

7080433

$1.49

33

ROD END,RH,WIDEBORE Substituted by 7061069

7060157

Unavailable

34

NUT JAM(10)

7542520

$2.39

35

BUSHING-FLANGE

3573909

$2.39

36

WSHR-.813X.406X.105-Y

7555832

$2.39

37

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

38

RING,SPRING PRELOAD ADJ.

5431734

$52.60

39

SPACER,SHOCK RETAINER(10)

5210953

$6.39

40

SPRING,COMP.,BLK.

7041261-067

$164.99

41

RETAINER-TOP

5220225

$10.39

42

WASHER(10)

7555797

$3.99

43

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

44

Bushing

5010252

$1.59

45

RADIUS ROD,UPPER,BLK

1820658-067

Unavailable

46

RADIUS ROD,LOWER,BLK

1820660-067

Unavailable
