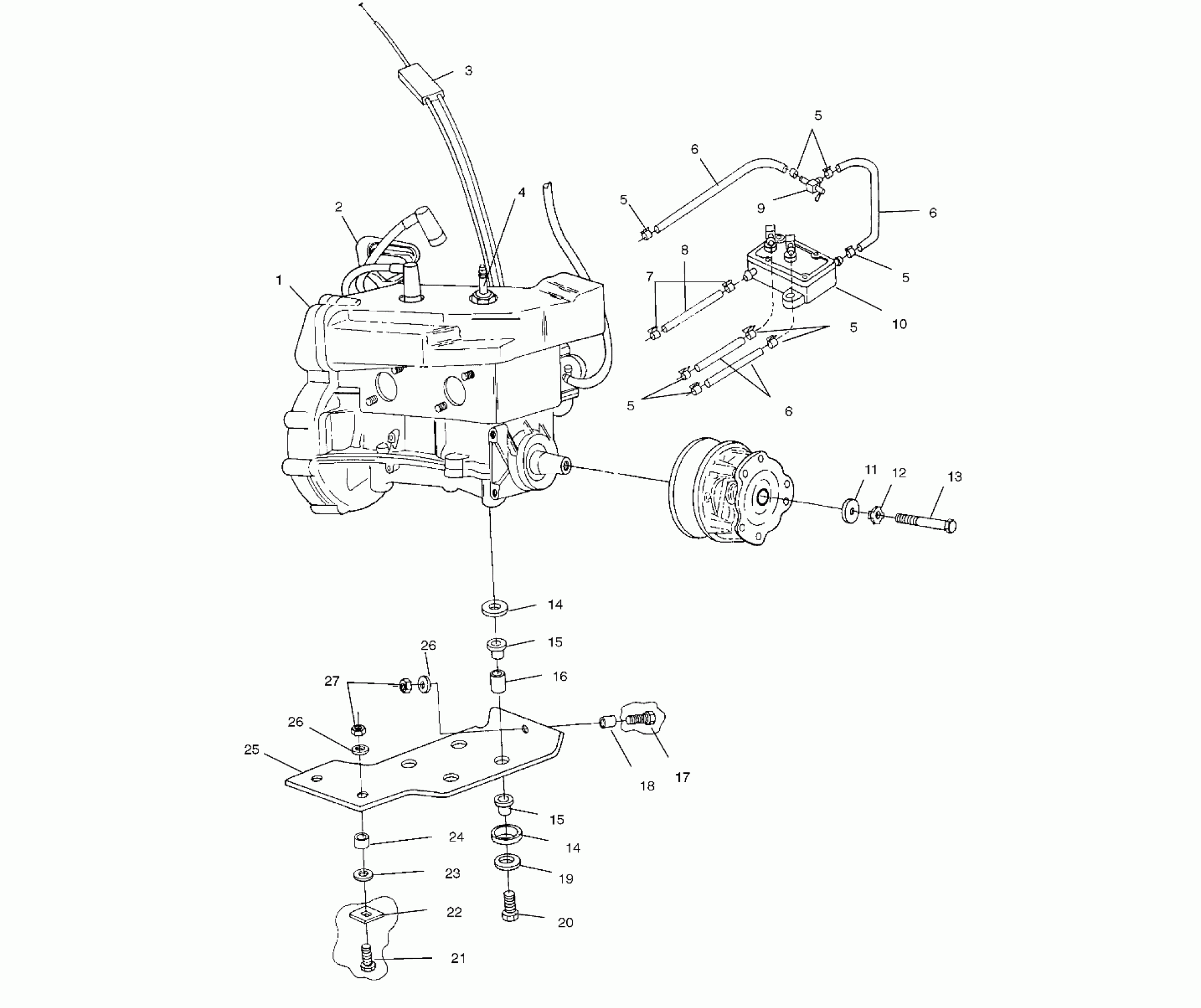

Polaris INDY 340 DELUXE - S00LD3AS ENGINE MOUNTING - S00LD3AS (4953535353b013) Diagram

#

Description
Price

1

ENG.(S.B.)EC34-2PM-02/04 (EC34-2PM02A) (See Footnote) Note: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior a

3084620

Unavailable

2

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

3

CABLE, THROTTLE

7080557

$154.99

4

SPARKPLUG (10)

3070156

$3.99

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

6

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

6

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

6

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

7

HOSE CLAMP, RED

7080003

$1.49

8

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

9

VALVE,FUEL SHUT-OFF

7052060

Unavailable

10

Asm., Fuel Pump (See Fuel Pump Pg. C6, Ref. 3)

-------

Unavailable

11

WASHER,CLUTCH RETAINER

5010278

Unavailable

12

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

13

BOLT(10)

7512566

$30.79

14

CAP

5221901

Unavailable

14

CAP

5221901

Unavailable

15

DAMPNER-VIB.

5410320

Unavailable

15

DAMPNER-VIB.

5410320

Unavailable

16

BUSHING-MOTOR MT.

5010163

Unavailable

17

BOLT(10)

7515503

$5.43

18

BUSHING,THREADED

5020840

$9.03

19

WASHER LOCK(10)

7553101

$3.99

20

BOLT(10)

7512515

$3.19

21

BOLT(10)

7515510

$3.59

22

Plate, Spacer

5211201

$4.95

23

WASHER(10)

7555823

$3.99

24

BUSHING,THREADED

5020562

$3.83

25

PLATE,MOTOR MT,W/HOLE

5224836

Unavailable

26

WASHER(10)

7555761

$2.39

26

WASHER(10)

7555761

$2.39

27

NUT LOCK(10)

7542403

$3.99
