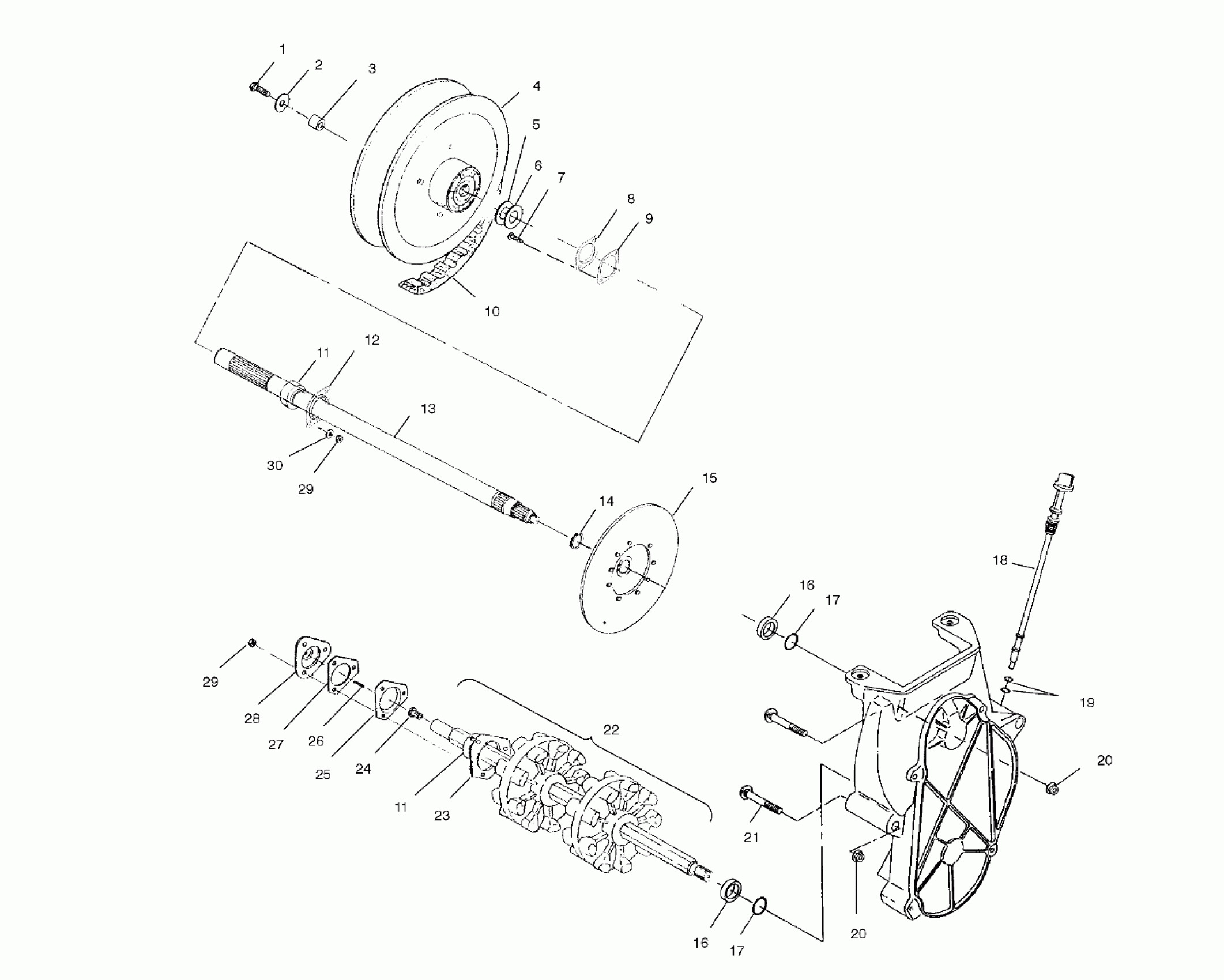

Polaris INDY 340 DELUXE - S00LD3AS DRIVE TRAIN - S00LD3AS (4953535353b006) Diagram

#

Description
Price

1

SCREW(10)

7517581

$1.59

2

WASHER FLAT(10)

7555701

$3.99

3

SPACER,DRIVEN CLUTCH

5020645

Unavailable

4

Asm., Driven Clutch (See Footnote) (See Driven Clutch Pg. B12, Ref. 10)

-------

Unavailable

5

BUSHING(10)

7555864

$2.39

6

WASHER SPECIAL(10)

7556509

Unavailable

7

BOLT(10)

7512377

$4.79

8

FLANGETTE,(GREASABLE)

5222647

$24.27

9

GASKET,JACKSHAFT,2-BOLT

5830135

$2.83

10

BELT, DRIVE(5)

3211058

$79.99

11

BEARING

3514525

$31.99

11

BEARING

3514525

$31.99

12

FLANGETTE, (2-BOLT)

5222393

Unavailable

13

JACKSHAFT,P-90,15T,W/BRG (Incl. 14)

1332172

$161.89

14

RING, RETAINING(10)

7710422

$3.99

15

BRAKE DISC,SNOW,6385 CR,ASM.

1910403

Unavailable

16

SLEEVE, SEAL

5020588

$23.99

16

SLEEVE, SEAL

5020588

$23.99

17

O RING,(10)

5410613

$1.99

17

O RING,(10)

5410613

$1.99

18

DIPSTICK Substituted by 1332143

5431419

Unavailable

19

O-RING

5410675

$1.60

20

NUT(10)

7542423

$3.99

20

NUT(10)

7542423

$3.99

21

BOLT(10)

7515428

$4.79

22

DRIVESHAFT ASM,2 DR,W/BRG,XHS (Incl. 23,24)

1590283

Unavailable

23

ASM.-FLANGETTE,W/SCREWS

1012945

$114.99

24

BUSHING METAL SPEEDO

3280019

$11.99

25

FLANGETTE-OFFSET,W/HOLE

5243529

$13.75

26

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

27

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

28

ADAPTER,DRIVE,W/ZERK

3280116

$101.17

29

NUT-5/16-18 NYLOK-Y

7542324

$1.49

29

NUT-5/16-18 NYLOK-Y

7542324

$1.49

30

WASHER-.344X.688X.063 FL-Y

7558402

$1.49
