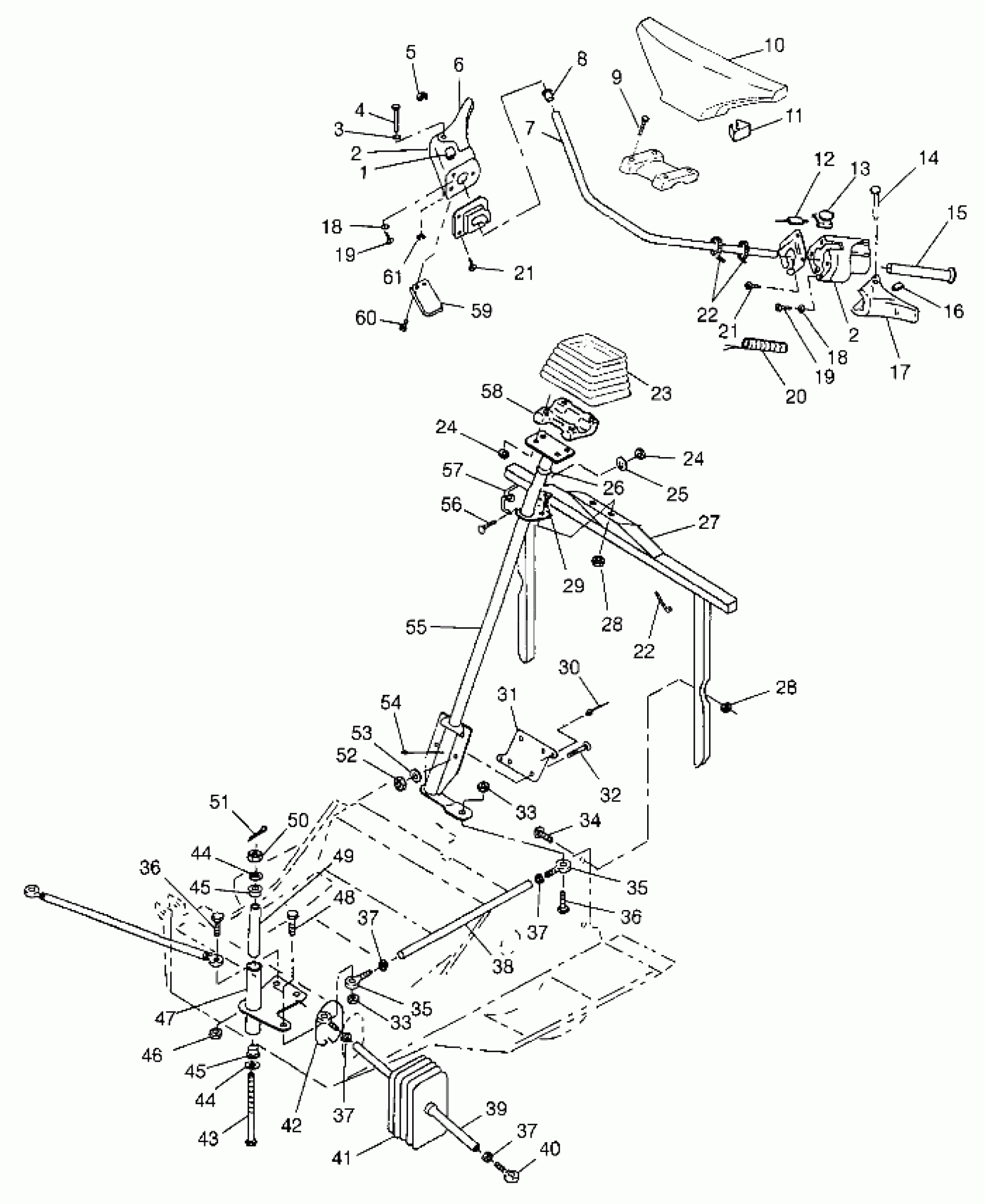

Polaris INDY 340 - 099LB3AS STEERING - 099LD3AS (4946734673b003) Diagram

#

Description
Price

1

SWITCH,AUX.SHUT-OFF

4110106

$94.99

2

BLOCK,THROTTLE/BRAKE

5431592

$49.99

2

BLOCK,THROTTLE/BRAKE

5431592

$49.99

3

WASHER(10)

7555730

$3.99

4

PIN-RETAINING .186X1.780-AL

7661624

$12.79

5

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

6

LEVER-THROTTLE (340)

5430601

Unavailable

6

LEVER,30 MM,W/HTR. (Deluxe)

2010147

Unavailable

7

HANDLEBAR,BLACK,(LITE)

5224841-067

$43.75

8

CAPLUG(10)

7080467

Unavailable

9

SCREW,(10)

7517238

$4.79

10

PAD,HANDLEBAR

5432903

Unavailable

11

CLIP-HANDLEBAR PAD

7080799

Unavailable

12

Switch, Brake Light

4110105

Unavailable

13

Switch, Dimmer

4110104

Unavailable

14

RIVET,(50)

7661617

$4.03

15

GRIP,H'BAR,SNOW

5432634

$24.27

16

CLIP-SPEED.(10)

7670044

$4.79

17

LEVER-BRAKE

5430602

$36.41

18

RIVET BURR(50)

7555727

$1.49

18

RIVET BURR(50)

7555727

$1.49

19

SCREW-SEMS(10)

7511848

$3.99

19

SCREW-SEMS(10)

7511848

$3.99

20

HEATER GRIP ASM.

2460313

Unavailable

21

SCREW(10)

7512465

$3.99

21

SCREW(10)

7512465

$3.99

22

CLIP ,(10)

5222672

Unavailable

22

CLIP ,(10)

5222672

Unavailable

23

BOOT,STEERING POST

5432827

Unavailable

24

NUT-LOCK(10)

7542122

$1.49

24

NUT-LOCK(10)

7542122

$1.49

25

WASHER,WROUGHT(10)

7558302

$1.59

26

CLIP(10)

7080278

$2.63

27

HOOP,STRG,BLK.

1011863-067

$38.71

28

NUT, LOCK(10)

7542103

$5.59

28

NUT, LOCK(10)

7542103

$5.59

29

BOLT(10) Substituted by 7512269

7515101

Unavailable

30

RIVET-3/16-.090-.290

7661637

$1.49

31

BRKT, BOLT RETAINER

5222421

$5.52

32

BOLT(10)

7512377

$4.79

33

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

33

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

34

BOLT(10)

7512298

$3.99

35

ROD END,LH

7060166

$48.56

35

ROD END,RH

7060167

$48.56

35

ROD END,LH

7060166

$48.56

35

ROD END,RH

7060167

$48.56

36

BOLT(10)

7512404

$3.99

36

BOLT(10)

7512404

$3.99

37

NUT HEX(10)

7542401

$2.39

37

NUT

7542424

$1.49

37

NUT HEX(10)

7542401

$2.39

37

NUT

7542424

$1.49

37

NUT HEX(10)

7542401

$2.39

37

NUT

7542424

$1.49

37

NUT HEX(10)

7542401

$2.39

37

NUT

7542424

$1.49

38

ROD, DRAG LINK

5333005

Unavailable

39

ROD,TIE,BLK

5020910-067

Unavailable

40

ROD END, RH.

7060165

$48.56

40

ROD END, LH.

7060164

$48.56

41

BOOT, TIE ROD Substituted by 5411652

5410639

$19.84

42

RETAINER, BOOT

5222283

Unavailable

43

BOLT(10)

7512572

$13.19

44

WASHER(10)

7555817

Unavailable

44

WASHER(10)

7555817

Unavailable

45

BUSHING

5630371

$5.03

45

BUSHING

5630371

$5.03

46

NUT LOCK(10)

7542403

$3.99

47

FROG,LH,STRG,BLK(LITE) Substituted by 1820776-067

1823141-067

$49.21

48

SCREW(10)

7515434

Unavailable

49

BUSHING, SPACER

5333009

$11.99

50

NUT, LOCK,(10)

7542503

$10.39

51

PIN COTTER(10)

7661203

$1.49

52

NUT FLEX-LOC(10)

7542303

$6.39

53

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

54

ZERK,FITTING,THREADED(10)

7080433

$1.49

55

POST,STEERING,BLK

1822589-067

Unavailable

56

BOLT(10)

7512193

$2.39

57

RINGMOUNT,RECOIL,BLK.

5224442-067

$21.43

58

BLOCK,HANDLEBAR

5630187-067

$44.99

59

HOLDER-WIRE (Deluxe)

5432261

$24.27

60

SCREW(10) (Deluxe)

7511858

$3.99

61

RING-RETAINING EXTERNAL

7710401

$3.99
