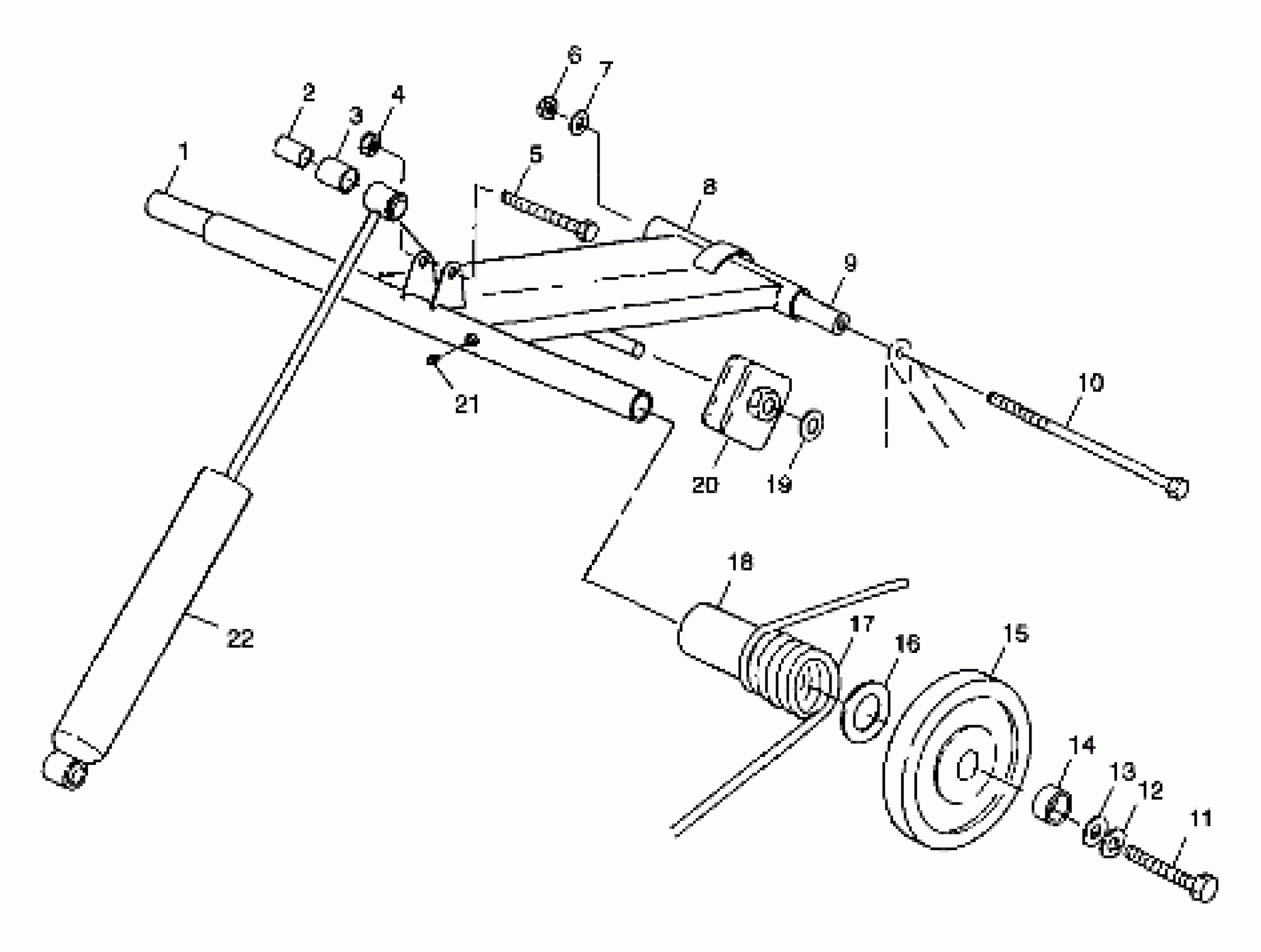

Polaris INDY 340 - 099LB3AS REAR TORQUE ARM - 099LD3AS (4946734673b010) Diagram

#

Description
Price

1

SHAFT,MTG,REAR

5131996

$56.65

2

BUSHING

5430537

$3.99

3

BUSHING,R.SHOCK

5333030

Unavailable

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

5

BOLT(10)

7512329

$3.99

6

NUT FLEX LOC,(10)

7542319

$4.39

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

8

ARM,RR TORQ ARM,XL,BLK

1541105-067

$186.65

9

Tube

5333483

$11.59

10

SCREW Substituted by 7517757

7517206

$3.97

11

SCREW,(10)

7517247

$3.19

12

WASHER(10)

7552603

$1.49

13

WASHER(10)

7555893

$1.49

14

SPACER-CARR.WHEEL

5332730

$14.99

15

WHEEL,CARRIER,ASM

1543022

$69.99

15

BEARING-5/8I.D. (1 Per Wheel)

3513504

$9.59

15

RETAINER(10) (1 Per Wheel)

7710403

$2.63

16

WASHER,THRUST(10)

7555877

$3.99

17

SPRING,LH,TORS. (.406 Dia.)(Optional)

7041521-067

Unavailable

17

SPRING,RH,TORS. (.406 Dia.)(Optional)

7041522-067

Unavailable

17

SPRING,LH,TORS,.393/77DEG. (.393 Dia.)(Optional)

7041555-067

$70.39

17

SPRING,RH,TORS,.393/77DEG. (.393 Dia.)(Optional)

7041556-067

Unavailable

17

SPRING,LH,TORS,.393/80DEG. (.393 Dia.)(Standard)

7041557-067

Unavailable

17

SPRING,RH,TORS,.393/80DEG. (.393 Dia.) (Standard)

7041558-067

Unavailable

18

Tube, Spring

5521234

Unavailable

19

CLIP-PUSH ON

7080394

$2.39

20

ROLLER, SPRING ADJ.

5431168

Unavailable

21

ZERK,FITTING,THREADED(10)

7080433

$1.49

22

SHOCK,REAR TRACK

7041739

Unavailable
