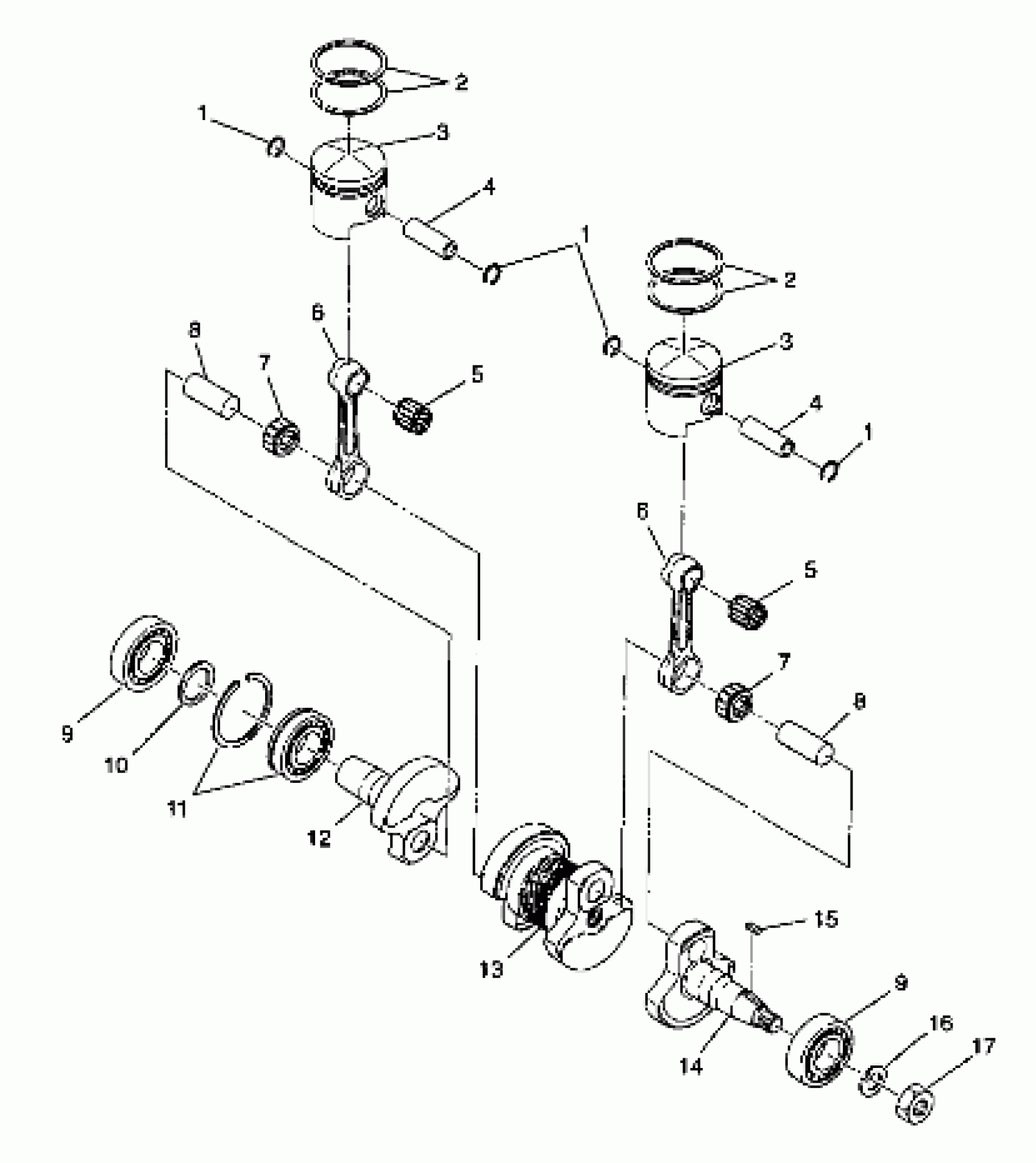

Polaris INDY 340 - 099LB3AS PISTON and CRANKSHAFT - 099LD3AS (4946734673c004) Diagram

#

Description
Price

1

CLIP,PISTON PIN,(10)

3084456

Unavailable

1

CLIP,PISTON PIN,(10)

3084456

Unavailable

1

CLIP,PISTON PIN,(10)

3084456

Unavailable

2

Ring, Piston (Standard)

3083587

Unavailable

2

RING, PISTON (.25mm/.010, Oversize)

3084319

$33.32

2

RING, .020 O/S (.50mm/.020, Oversize)

3083719

$31.41

2

Ring, Piston (Standard)

3083587

Unavailable

2

RING, PISTON (.25mm/.010, Oversize)

3084319

$33.32

2

RING, .020 O/S (.50mm/.020, Oversize)

3083719

$31.41

3

PISTON(STD) (Standard)

3085840

Unavailable

3

PISTON(0.25 O/S) (.25mm/.010, Oversize)

3085841

$152.37

3

PISTON(0.50 O/S) (.50mm/.020, Oversize)

3085842

Unavailable

3

PISTON(STD) (Standard)

3085840

Unavailable

3

PISTON(0.25 O/S) (.25mm/.010, Oversize)

3085841

$152.37

3

PISTON(0.50 O/S) (.50mm/.020, Oversize)

3085842

Unavailable

4

PIN, PISTON Substituted by 3085021

3084455

Unavailable

4

PIN, PISTON Substituted by 3085021

3084455

Unavailable

5

BEARING,SMALL END

3080998

Unavailable

5

BEARING,SMALL END

3080998

Unavailable

6

Rod, Connecting

3083581

Unavailable

6

Rod, Connecting

3083581

Unavailable

7

Bearing, Large End

3083583

$23.19

7

Bearing, Large End

3083583

$23.19

8

Pin, Crank

3083582

$16.47

8

Pin, Crank

3083582

$16.47

9

Bearing, Ball

3084580

$31.99

9

Bearing, Ball

3084580

$31.99

10

Spacer

3083399

$1.49

11

BEARING,BALL

3084602

Unavailable

12

CRANKSHAFT #3

3083580

$236.99

13

GEAR,DRIVE,OIL PUMP

3083782

$102.13

13

Bearing, Ball

3084580

$31.99

13

CRANKSHAFT #2 (Incl. 8)

3083579

$400.79

14

CRANKSHAFT (Incl. 6-14)

3083577

$969.99

14

CRANKSHAFT #1

3083578

$354.99

15

KEY

3081447

Unavailable

16

WASHER-SPRING(10)

3083094

$3.17

17

NUT

3083093

$19.99
