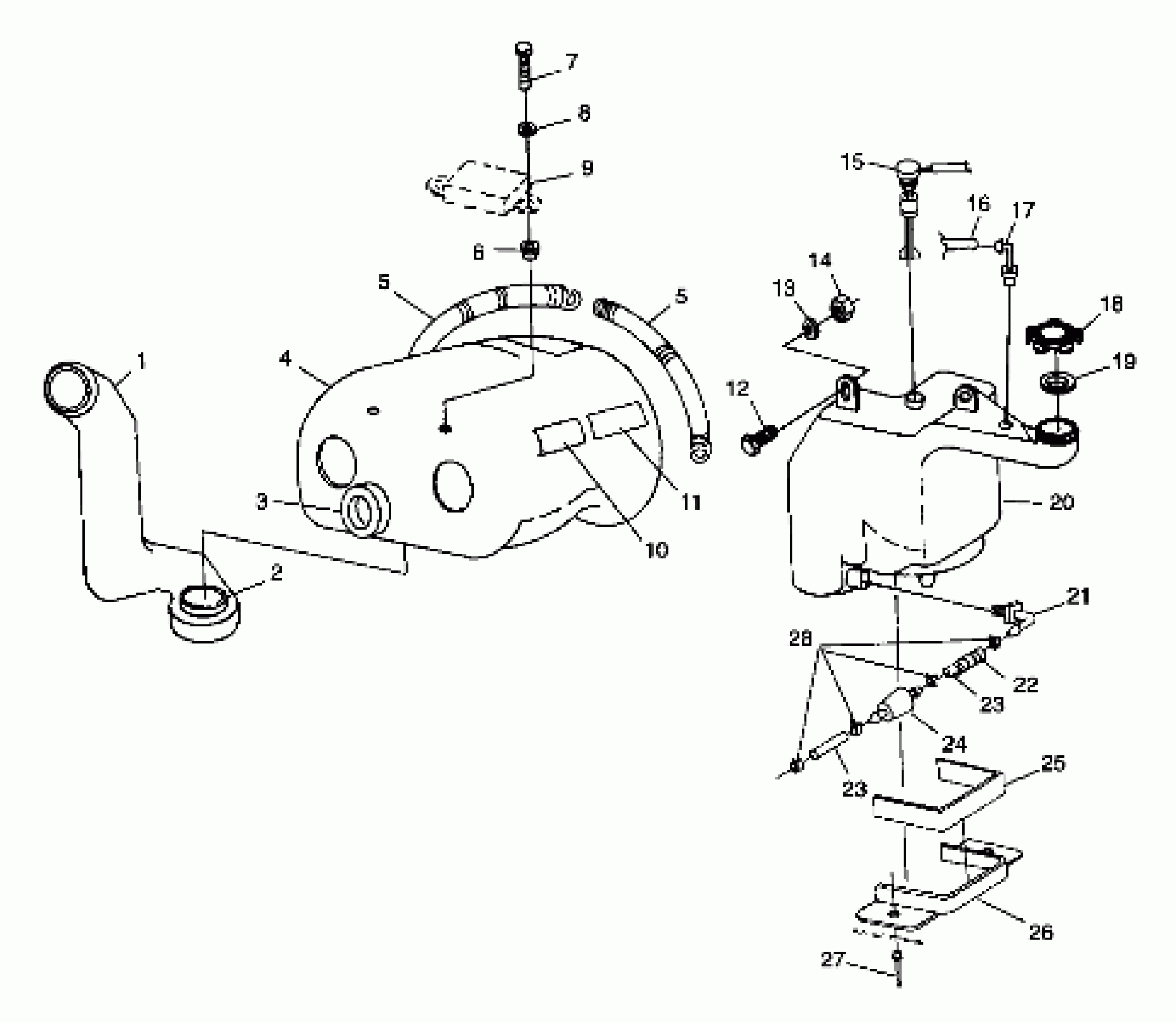

Polaris INDY 340 - 099LB3AS OIL TANK / AIR BOX - 099LB3AS (4946734673c001) Diagram

#

Description
Price

1

DUCT, INTAKE

5431354

Unavailable

2

Seal

5810462

$4.95

3

BOOT-SILENCER

5410311

Unavailable

4

SILENCER,INTAKE,DRILLED

5431521

Unavailable

5

SPRING,HOLDDOWN

7041244

$11.79

5

SPRING,HOLDDOWN

7041244

$11.79

6

NUT-WELL(10)

7541923

$5.59

7

SCREW(10)

7512222

$2.39

8

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

9

Asm., Fuel Pump (See Pg. C7, Ref. 3)

-------

Unavailable

10

DECAL,INTAKE

7075348

Unavailable

11

DECAL, GREASING [No Longer Available]

7073426

$7.27

12

BOLT(10)

7512240

$3.99

13

WASHER,WROUGHT(10)

7558302

$1.59

14

NUT-LOCK(10)

7542122

$1.49

15

SENSOR,OIL LEVEL (Deluxe Only)

4110134

$72.84

16

FUELLINE,3MMX7MM

8450061-600

Unavailable

17

FITTING,90 DEG,1/8,(10)

7052095

$4.79

18

CAP,OIL TANK

5430779

$14.56

19

GASKET-OIL CAP

5810141

$2.39

20

TANK,OIL,DRILLED (Deluxe)

5431488

$115.99

20

TANK, OIL (340)

5431225

Unavailable

21

FITTING, OUTLET

7052056

$6.23

22

TUBE,CONVOLUTED,SVC.

5521278

Unavailable

23

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

23

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

24

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

25

Pad, Oil Tank

5810522

$1.35

26

BRKT,LOW.OILTANK

5222673

Unavailable

27

RIVET(50)

7621453

$3.19

28

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49
