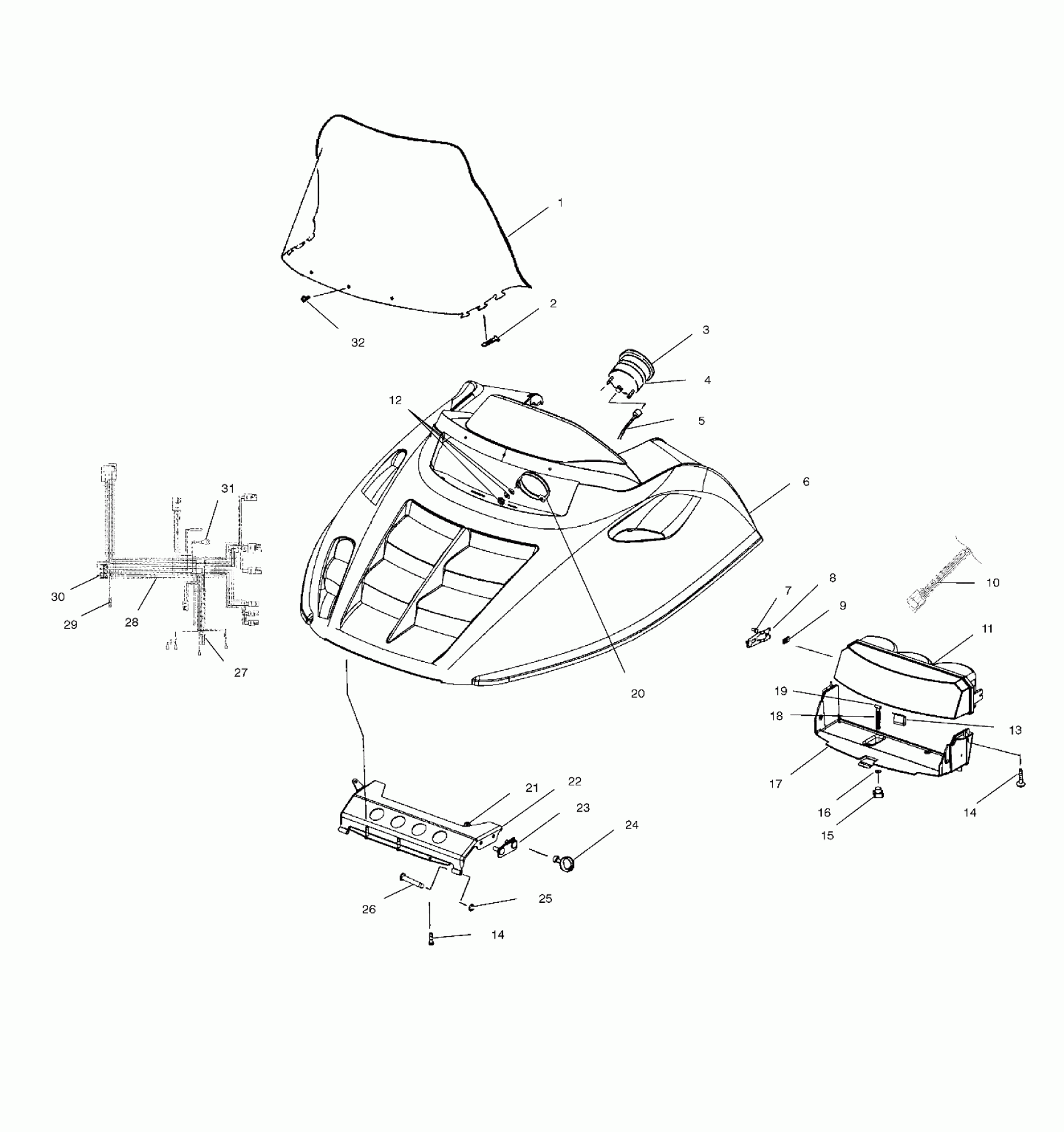

Polaris INDY 340 - 099LB3AS HOOD ASSEMBLY - 099LD3AS (4946734673a009) Diagram

#

Description
Price

1

WINDSHIELD,STD.HT,(LITE)

5432671

Unavailable

2

RETAINER,WINDSHIELD,(10)

5410970

$1.49

3

SPEEDO,5",100MPH,90� ANGLE

3280303

$206.65

4

CUSHION,TACH/SPEEDO,RUBBER

3280209

$3.99

5

CABLE,SPEEDO,45 DEG,80 IN

3280275

Unavailable

6

HOOD,W/SCR,BR.WHT,(340) (340)

2631931-241

Unavailable

6

HOOD,W/SCR,RGL.BLU,(340) (See Footnote) (Deluxe) (Includes Foam, Foil, Warn. Decals)

2631931-246

Unavailable

7

BOLT(10)

7515107

Unavailable

8

MOUNT,WELD,H/L

1011944-067

$24.27

9

NUT, SPEED(10)

7670057

$1.49

10

HARNESS,HEADLAMP,LITE

2460636

$118.08

11

BULB,QUARTZ.H/L,INDY

2870448

$24.99

11

H/L ASM,3-BULB

2431008

$111.99

11

BULB,HI-BEAM

4030048

$29.03

12

WASHER,FLAT,(10)

3280157

$2.39

12

Nut

3280158

Unavailable

12

WASHER,SPLIT LOCK

3280156

$1.49

13

FASTENER-U TYPE CLIP

7670040

$3.99

14

SCREW(10)

7517441

$2.39

14

SCREW(10)

7517441

$2.39

15

KNOB,H/L.ADJUST

7080501

Unavailable

16

WASHER(10)

7558301

$1.49

17

MOUNT,H/L,LITE

5432669

$11.84

18

SPRING,H/L.ADJ.

7041308

$3.19

19

BOLT,TEE ADJUSTER Substituted by 7517746

7515135

$24.99

20

BRKT,TACH/SPEEDO,5"

3280210

$28.32

21

NUT-LOCK(10)

7542122

$1.49

22

HINGE,UPPER,BLK

5242252-067

$77.99

23

PLATE,HINGE STUD

1012637

$9.91

24

CLIP, PLASTIC(10)

4020139

$4.79

25

RING,RETAINING,EXTERNAL(10)

7710474

Unavailable

26

PIN,RETAINING

7661647

Unavailable

27

HOUSING

4020063

$3.19

28

HARNESS,MAIN,(LITE TOUR)

2460647

$70.39

29

HOUSING

4020133

Unavailable

30

Housing w/Receptacle

4020057

$3.51

31

Terminal, Ring

4020092

Unavailable

32

RIVET,PLASTI-LOC.(50)

7621509

$1.49
