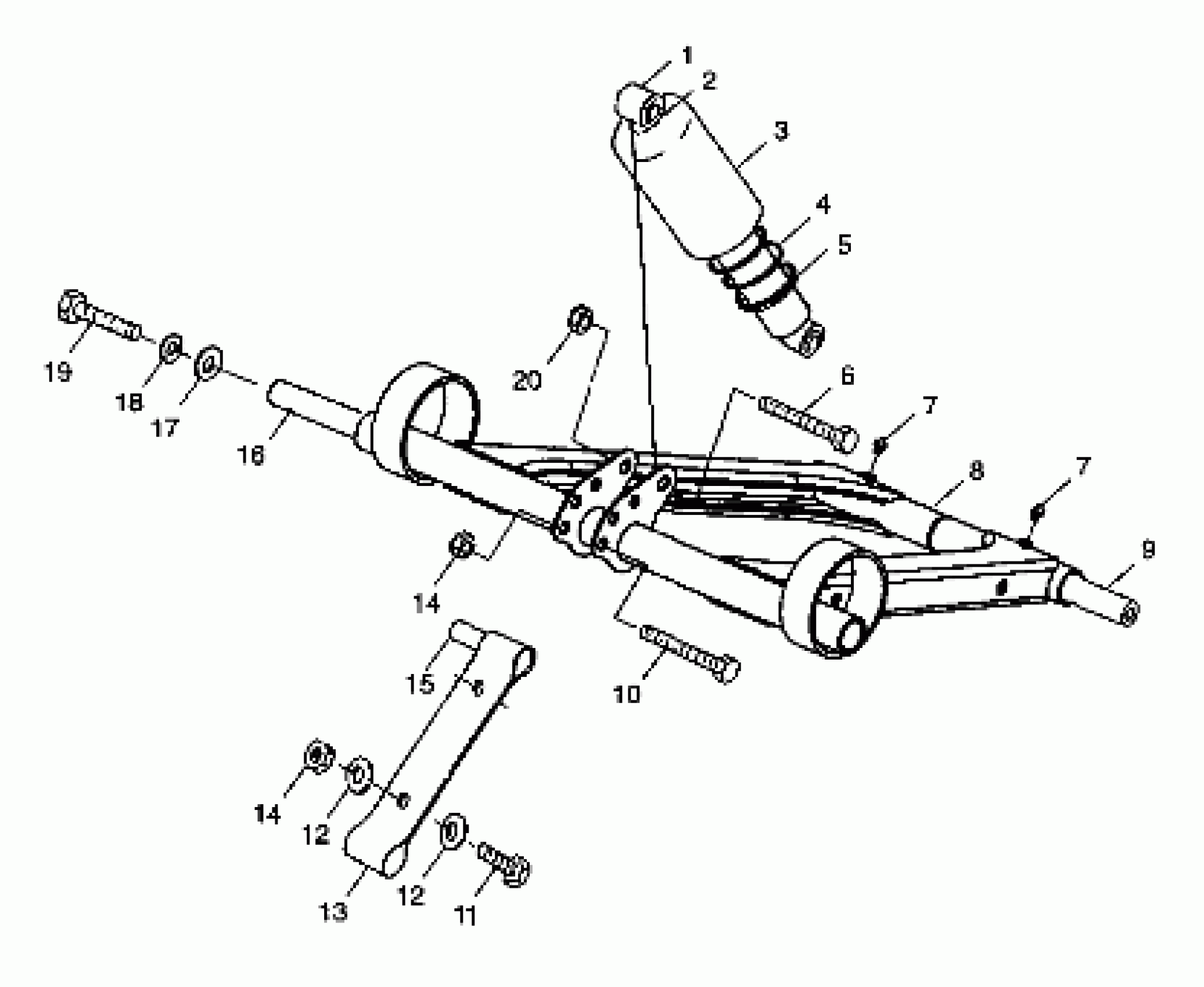

Polaris INDY 340 - 099LB3AS FRONT TORQUE ARM - 099LD3AS (4946734673b009) Diagram

#

Description
Price

1

SHOCK,FRT.TRACK Substituted by 7041929

7041744

Unavailable

2

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

3

SHIELD-SPRING

5430671

$24.27

4

SPRING,COMPRESSION

7041570-067

Unavailable

5

RETAINER,SPRING Substituted by 5245067

5241276-067

Unavailable

6

BOLT(10) Substituted by 7515492

7512410

Unavailable

7

ZERK,FITTING,THREADED(10)

7080433

$1.49

7

ZERK,FITTING,THREADED(10)

7080433

$1.49

8

ARM,FR.TORQUE,(XL) Substituted by 1541522-067

1541281-067

Unavailable

9

Shaft

5333511

Unavailable

10

BOLT(10)

7512329

$3.99

11

SCREW ,(10)

7517313

$4.79

12

WASHER(10)

7555716

$1.59

12

WASHER(10)

7555716

$1.59

13

STRAP,LIMITER,(XL)

5811281

Unavailable

14

NUT,NYLOC,(10)

7542344

$3.99

14

NUT,NYLOC,(10)

7542344

$3.99

15

BUSHING

5333522

$9.70

16

Shaft

5020908

$69.99

17

WASHER(10)

7555893

$1.49

18

WASHER(10)

7552603

$1.49

19

SCREW,(10)

7517247

$3.19

20

NUT LOCK(10)

7542411

$3.19
