Description

Price

1

WASHER(10)

7555806

$1.49

1

WASHER(10)

7555806

$1.49

2

BOLT(10)

7515417

$4.79

3

BOLT(10)

7515415

$1.49

3

BOLT(10)

7515415

$1.49

3

BOLT(10)

7515415

$1.49

4

NUT LOCK(10)

7542403

$3.99

4

NUT LOCK(10)

7542403

$3.99

4

NUT LOCK(10)

7542403

$3.99

5

SHOCK,FR.SUSP.

7041284

Unavailable

6

BOLT Substituted by 7515491

7515433

$1.59

7

Arm, Steering

5220326-067

Unavailable

8

BOLT(10)

7512404

$3.99

9

WASHER(10)

7555721

$1.49

9

WASHER(10)

7555721

$1.49

10

TUBE,TRAILING ARM

5010187

Unavailable

11

PIVOT-TRAILING ARM

5410382

Unavailable

12

BOLT(10)

7512557

$7.60

13

ARM,LH TRLG,BLK.

1823136-067

Unavailable

13

ARM,RH TRLG,BLK.

1823137-067

$266.49

14

WASHER SPECIAL(10)

7556509

$1.59

15

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

16

SPINDLE, BLK.

6230073-067

Unavailable

17

NUT-5/16-18 NYLOK-Y

7542324

$1.49

18

SKAG,SHORT(20) (340)

1820267

$23.99

19

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

20

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

21

PLATE, SKAG (Deluxe)

1011829-067

$54.99

22

SKAG, BLK. (Deluxe)

1820318-067

$49.99

23

SKI, BLK.

1820333-067

Unavailable

24

BOLT(10)

7515462

$8.79

25

Stop, Rubber

5521231

Unavailable

26

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

27

BUSHING,PIVOT,(10)

5010158

$19.99

28

ZERK,FITTING,THREADED(10)

7080433

$1.49

29

ROD END,RH,WIDEBORE Substituted by 7061069

7060157

Unavailable

30

NUT JAM(10)

7542520

$2.39

31

BUSHING-FLANGE

3573909

$2.39

32

WSHR-.813X.406X.105-Y

7555832

$2.39

33

NUT-LOCK(10)

7542439

$1.49

33

NUT-LOCK(10)

7542439

$1.49

34

SPACER,SHOCK RETAINER(10)

5210953

$6.39

35

SPRING,COMP.,BLK.

7041261-067

$164.99

36

RETAINER-TOP

5220225

$10.39

37

WASHER(10)

7555797

$3.99

38

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

39

Bushing

5010252

$1.59

40

ROD,RAD,UP.,BLK.

1822129-067

Unavailable

41

ROD,RAD,LOW.BLK.

1822128-067

Unavailable

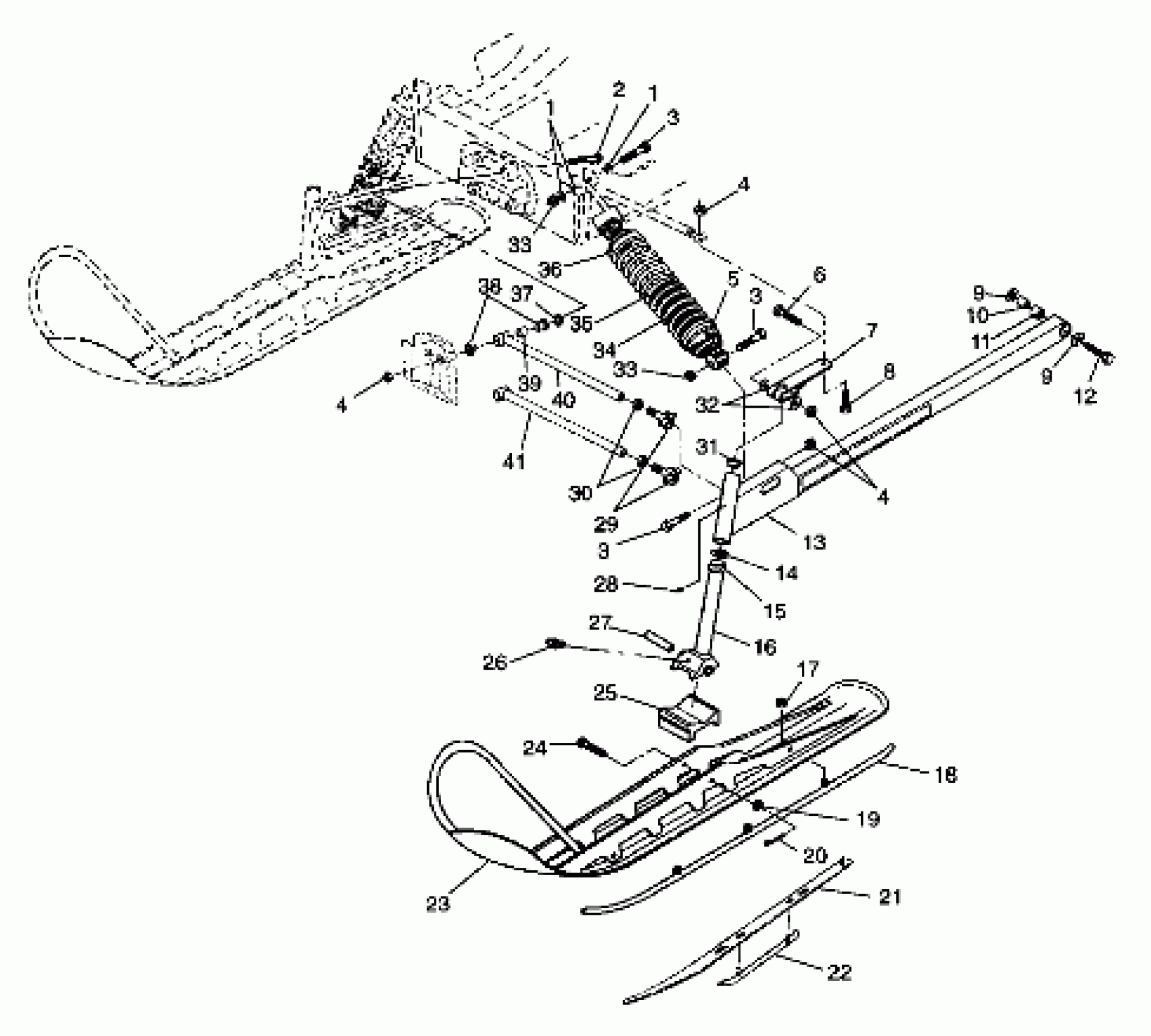

Polaris INDY 340 - 099LB3AS FRONT SUSPENSION and SKI - 099LD3AS (4946734673b001) Diagram
