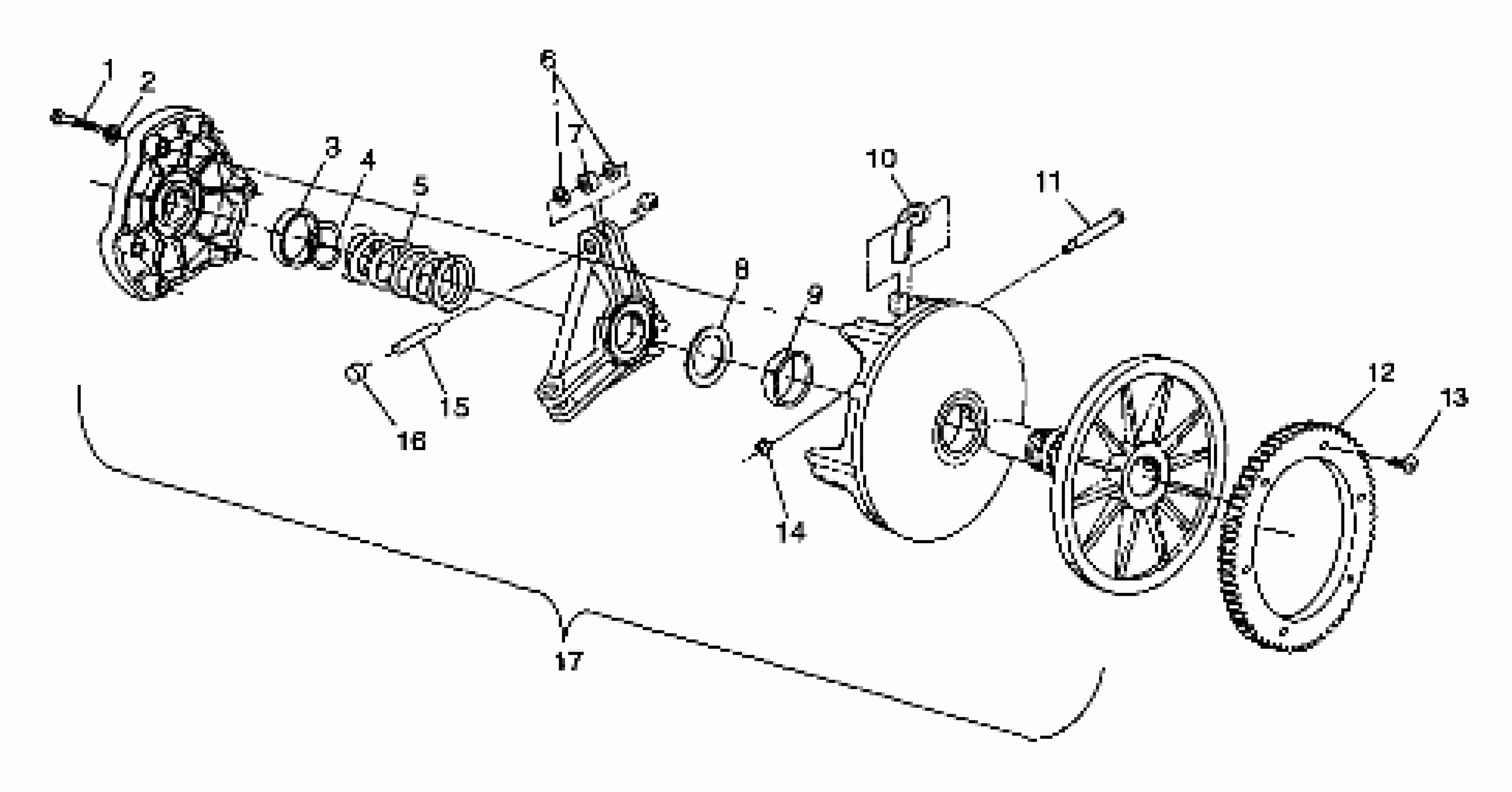

Polaris INDY 340 - 099LB3AS DRIVE CLUTCH - 099LD3AS (4946734673b011) Diagram

#

Description
Price

-

DESC NOT_AVAILABLE (Incl. 6,7,11,15,16)

2201314

Unavailable

1

BOLT,(10)

7512265

$3.99

2

LOCK WASHER(10)

7552801

$1.59

3

COVER,BEARING,GARMAX

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING,CLUTCH,SIL/GOLD

7041286

$56.65

6

WASHER,MULTILUBE

5430945

$1.59

7

ASM-ROLLER AND BUSHING

1321457

$40.46

8

SPACER(10) (.050")

5210754

Unavailable

8

SPACER(10) (.025")

5242981

Unavailable

8

SPACER(10) (.020")

5210752

Unavailable

8

SPACER(10) (.032")

5210753

Unavailable

9

BUSHING, DRIVEN

3576504

$23.99

10

WT/BUSH.ASM,10(3) (10)

1321526

$40.46

11

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

12

GEAR-RING (Deluxe Only)

5131062

Unavailable

13

BOLT,RING GEAR(10) (Deluxe Only)

7515351

$3.99

14

NUT FLEX LOC(10)

7541906

$3.19

15

PIN-ROLLER

5020422

$2.39

16

BUTTON, GUIDE,(10)

5430445

$6.39

17

CLUTCH,BASIC,#42(DRIVE) (Incl. 1-3,6-9,11,14)

1321596

Unavailable
