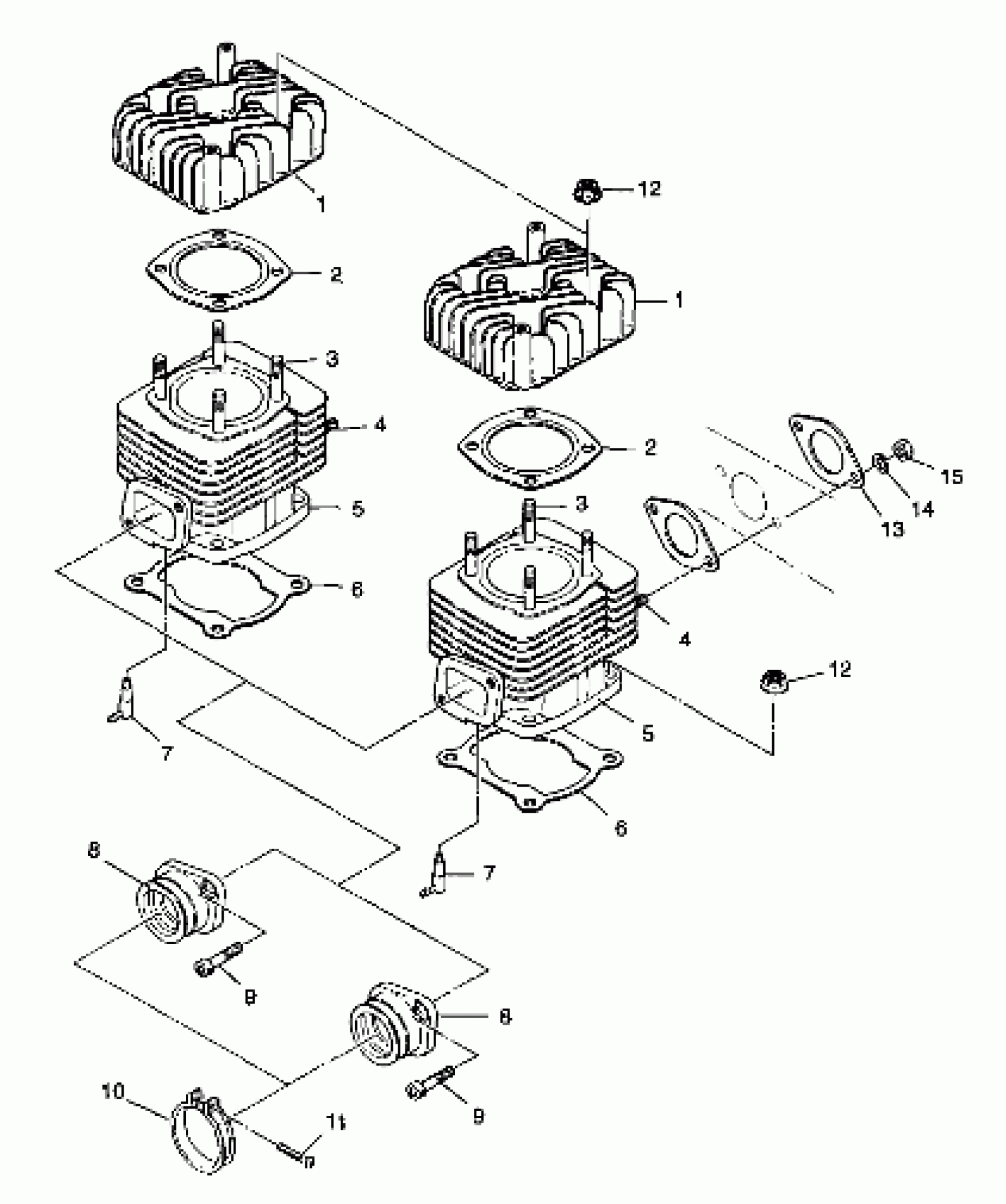

Polaris INDY 340 - 099LB3AS CYLINDER - 099LD3AS (4946734673c003) Diagram

#

Description
Price

1

Head, Cylinder

3083573

$133.32

1

Head, Cylinder

3083573

$133.32

2

GASKET-HEAD

3085844

Unavailable

2

GASKET-HEAD

3085844

Unavailable

3

Stud

3080283

$12.94

3

Stud

3080283

$12.94

4

STUD,(10)

3085326

Unavailable

4

STUD,(10)

3085326

Unavailable

5

CYLINDER (Incl. 3,4)

3083570

$507.94

5

CYLINDER (Incl. 3,4)

3083570

$507.94

6

GASKET-CYLINDER

3085843

Unavailable

6

GASKET-CYLINDER

3085843

Unavailable

7

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

7

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

8

Adapter

3083576

Unavailable

8

Adapter

3083576

Unavailable

9

Bolt, Allen

3081330

$3.99

9

Bolt, Allen

3081330

$3.99

10

BAND-CARB MTG. (Incl. 11)

3082257

Unavailable

11

SCREW,(10)

3081497

$2.39

12

NUT-FLANGE(10)

3082910

$2.39

12

NUT-FLANGE(10)

3082910

$2.39

13

GASKET-EXHAUST

3085845

Unavailable

14

WASHER LOCK ,(10)

3080530

$3.19

15

NUT(10)

3080285

Unavailable
