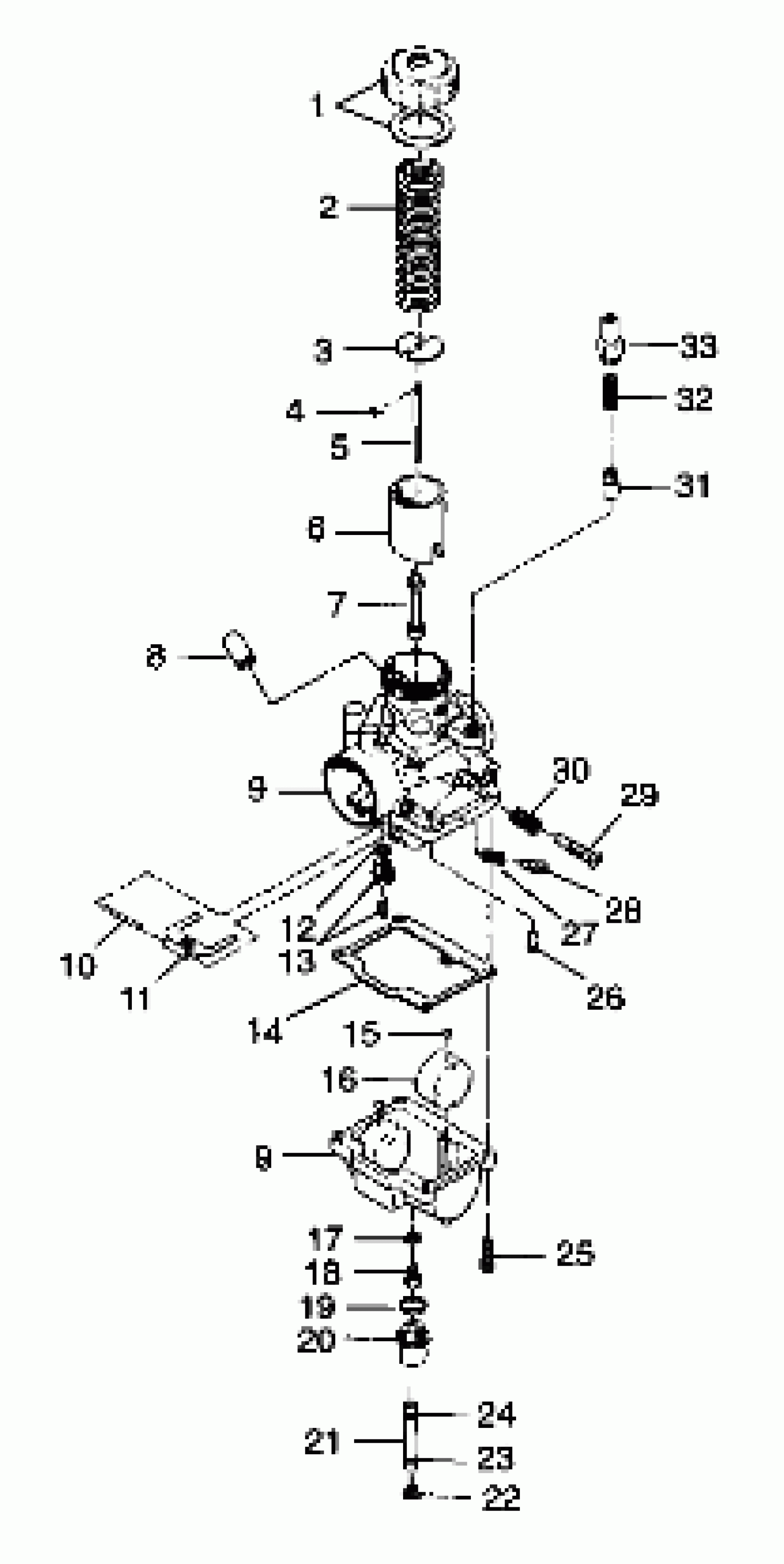

Polaris INDY 340 - 099LB3AS CARBURETOR - 099LD3AS (4946734673c006) Diagram

#

Description
Price

1

TOP,MIX CHAMBER (Incl. Gasket)

3130060

Unavailable

2

SPRING,THROTTLE

3130354

$28.32

3

PLATE,THROTTLE

3130002

$20.22

4

E-RING,(10)

3130508

$6.46

5

JET NEEDLE (5DP7-2)

3130155

$24.27

6

VALVE,THROTTLE,2.5 (2.5)

3130468

$36.41

7

NEEDLE JET, O-6 (169)

3130469

$32.37

8

CAP

3130479

$14.56

9

CARBURETOR (Incl. 1-20,25-33)

3130688

Unavailable

9

CARBURETOR (Incl. 1-20,25-33)

3130688

Unavailable

10

PIN, FLOAT

3130361

$8.89

11

ARM,FLOAT

3130018

$24.27

12

PACKING(10)

3130017

$4.03

13

VALVE,NEEDLE Substituted by 3131146 (1.5)

3130016

$48.56

14

PACKING,FLOAT CHAMBER

3130020

$16.17

15

CAP,(10)

3130237

$4.03

16

FLOAT ASM

3130021

$40.46

17

WASHER (10)

3130014

$1.59

18

JET,MAIN,HX.HD#150 (#150)

3130113

Unavailable

19

O RING

3130239

Unavailable

20

FITTING,SEDIMENT Substituted by 3130573

5020476

$10.63

21

FUEL LINE, 5 FT.

8450045-153

$99.99

22

PLUG,TRAP

5431893

$12.94

23

CLAMP,HOSE(10)

7080544

Unavailable

24

CLAMP,SPRING,(10)

7080534

$1.59

25

SCREW & WASHER(10)

3130025

$3.19

26

JET,PILOT,#35(10) (#35)

3130066

$8.89

27

SPRING,AIR ADJUST

3130012

$8.89

28

SCREW,AIR

3130011

$19.99

29

Screw, Throttle Stop

3130324

$19.84

30

SPRING,THROTTLE ADJ.

3130010

$8.89

31

PLUNGER ASM, STARTER

3130328

$32.37

32

SPRING,PLUNGER

3130006

$8.89

33

Cap, Plunger

3130359

$14.56
