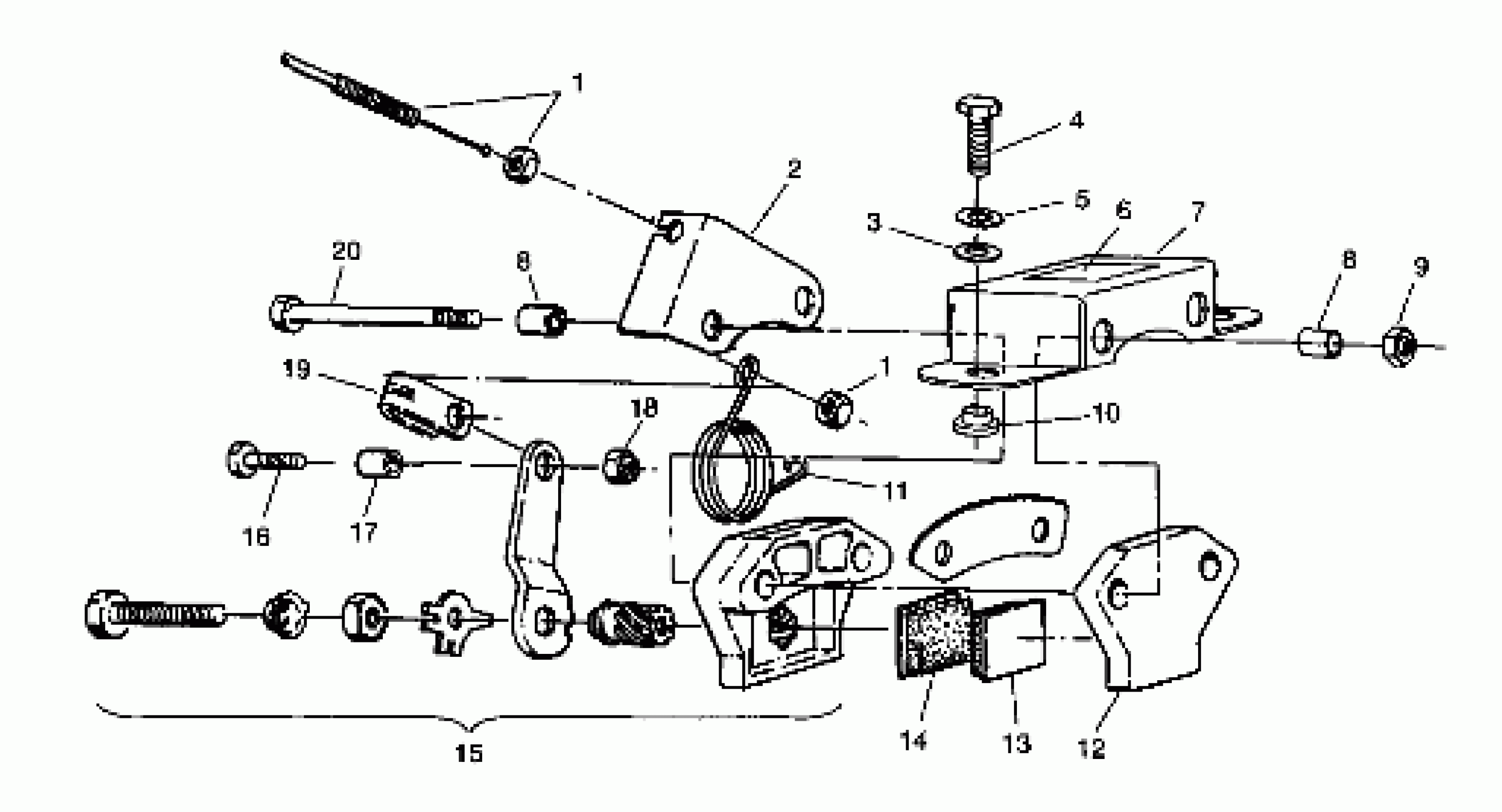

Polaris INDY 340 - 099LB3AS BRAKE - 099LD3AS (4946734673a013) Diagram

#

Description
Price

1

Cable, Brake

7080613

Unavailable

1

Cable, Brake

7080613

Unavailable

2

BRKT,BRAKE,BLK.

5220211-067

$4.10

3

WASHER(10)

7555806

$1.49

4

BOLT(10)

7515440

$3.99

5

WASHER(10)

7552603

$1.49

6

DECAL, BRAKE [No Longer Available]

7072088

Unavailable

7

BRKT,BRAKE,TOP MT.

5240240-067

$19.83

8

BUSHING

1930559

Unavailable

8

BUSHING

1930559

Unavailable

9

NUT(10)

7542425

$1.75

10

SPACER,ALIGNMENT

5020695

$2.87

11

SPRING, BRAKE RETURN

7041147

Unavailable

12

CALIPER

5630305

$36.41

13

PUCK

1930592

Unavailable

14

PAD, BRAKE,(THICK)

1930588

Unavailable

15

CALIPER

1930593

Unavailable

16

BOLT(10)

7512240

$3.99

17

BUSHING

5332795

$5.56

18

NUT-LOCK(10)

7542122

$1.49

19

PIN, CLEVIS

7080316

Unavailable

20

BOLT(10)

7515478

$11.43
