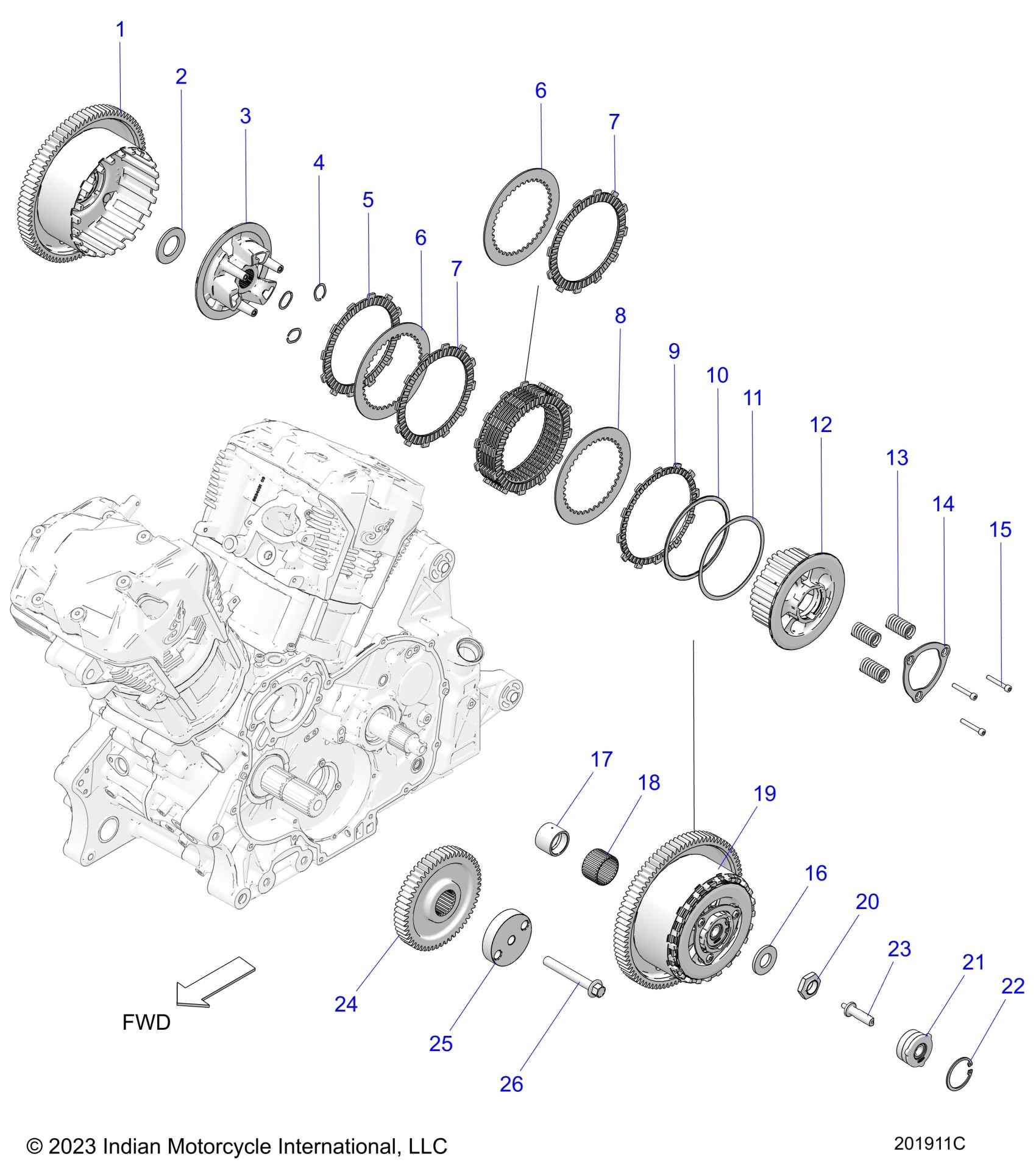

Polaris INDIAN CHALLENGER ELITE ALL OPTIONS (R01) - N24LCERRAZ/BZ/CZ/EZ/JZ DRIVE TRAIN, CLUTCH AND PRIMARY DRIVE - N24LCERR ALL OPTIONS (201911C) Diagram

Description

Price

K-CLUTCH,SERVICE PACK,HW [INCLUDES 5-9]

2211829

$300.14

ASM-GEAR/BASKET,CLUTCH

1327198

$774.99

WSH-THRST,CLUTCH

1327199

$9.52

CLUTCH PRESSURE PLATE

5144206

$128.87

SEAT-SPRING,CLUTCH

5271811

$8.08

DISK-CLUTCH,FRICTION A

1327200

$48.40

DISK-CLUTCH,SEPARATOR A

5272028

$40.46

DISK-CLUTCH,SEPARATOR A

5272028

$40.46

DISK-CLUTCH,FRICTION B

1327201

$48.40

DISK-CLUTCH,FRICTION B

1327201

$48.40

DISK-CLUTCH,SEPARATOR B

5272029

$40.46

DISK-CLUTCH,FRICTION C

1327202

$48.40

SPRING-JUDDER

7045852

$47.62

SEAT-SPRING,JUDDER

5272030

$13.75

HUB-MOVEABLE,CLUTCH

5144207

$219.99

SPRING-PRESSURE,CLUTCH

7046052

$32.37

PLATE-STOPPER,CLUTCH

5272031

$69.99

SCR-SH-M5X0.8X35 10.9 P&O

7527909

$3.17

WASHER-FLAT,ISO7415-M20,HARD

7556518

$10.32

COLLAR-BEARING,CLUTCH

5144204

$99.98

BRNG-NDL,K37X42X27

3515819

$66.65

ASM-CLUTCH [INCL. 1-15, 17-18]

1336987

$1,134.99

NUT-HEX,M20X1.5,32 A/F,STAKING

7547477

Unavailable

ASM-LIFTER,CLUTCH

1327195

$199.99

RING-RTNG,INT,DHO-45

7718422

$5.56

CLUTCH-LIFT RACK

6237718

$54.99

GEAR-PRIMARY, DRIVE

6237720

$285.62

ADAPTER-COLD TEST,SPLINED

6231137

$96.81

SCREW-HXHD-M12X80,12.9,PO P80

7519819

$31.75
