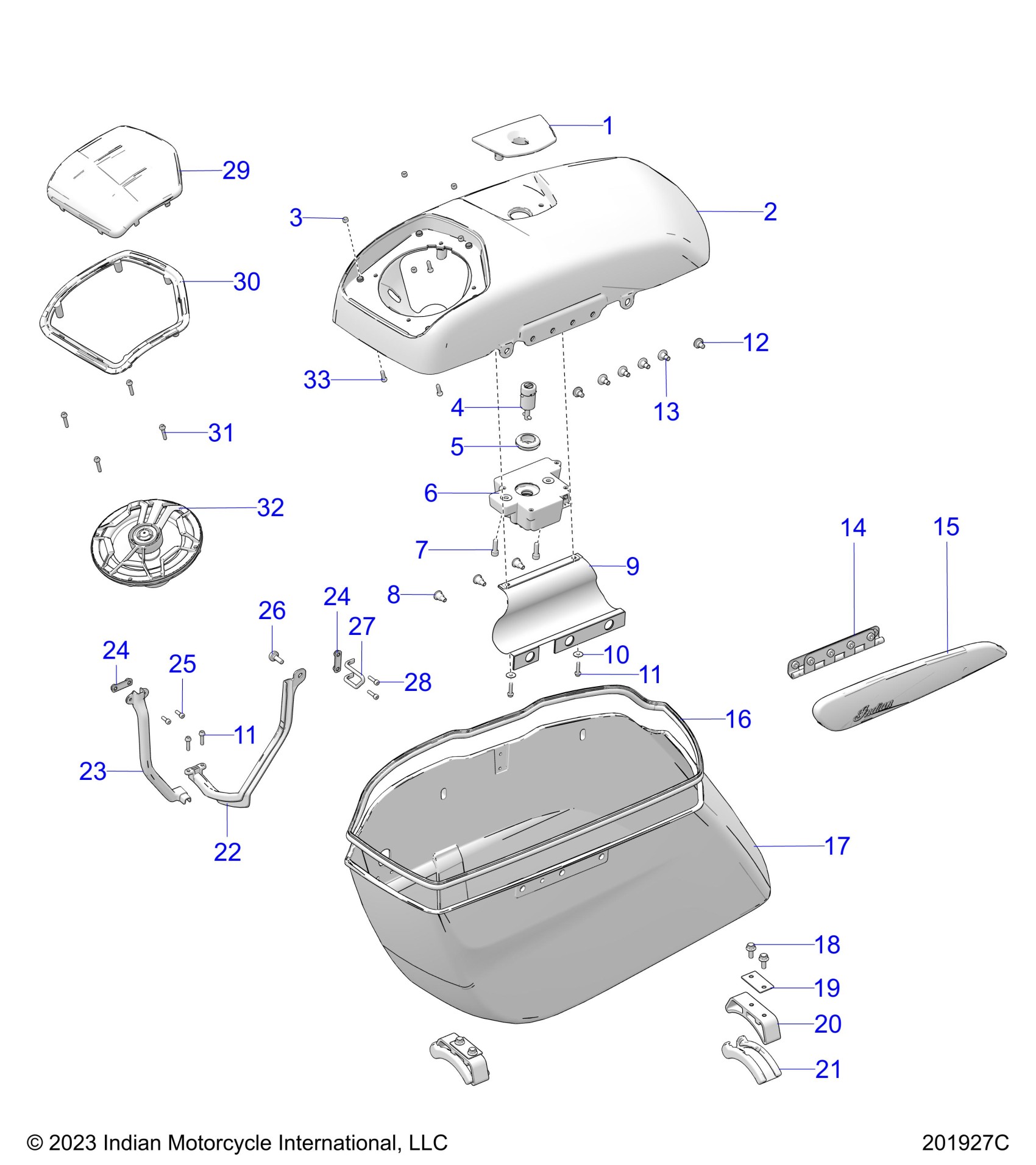

Polaris INDIAN CHALLENGER ELITE ALL OPTIONS (R01) - N24LCERRAZ/BZ/CZ/EZ/JZ BODY, SADDLEBAG ASM. - N24LCERR ALL OPTIONS (201927C) Diagram

#

Description
Price

1

BEZEL-LOCK,SADDLEBAG,LH,BLKCND [BLACK CANDY]

5455021-752

$164.99

1

BEZEL-LOCK,SADDLEBAG,RH,BKCND [BLACK CANDY]

5454612-752

$164.99

2

ASM-LID,SBAGAUDIO,LH,BLKELITE [CHARCOAL CANDY / BLACK CANDY]

5456424-2370

$804.99

2

ASM-LID,SBAGAUDIO,RH,BLKELITE [CHARCOAL CANDY / BLACK CANDY]

5456425-2370

$804.99

3

WASHER,RUBBER

7557148

$4.76

4

K-ASM,LOCK,NO TRUNK [INCLUDES STEERING LOCK, SADDLEBAG LOCKS, AND KEYS]

2638848

$208.16

5

SEAL-LOCK,SDLBG

5414686

$1.98

6

LOCK, ELECTRONIC, SADDLEBAG

4017838

$309.99

7

SCREW-SH-M6X1.0X20 8.8 ZPB

7517305

$5.22

8

SCREW-M6X1.0X16 SHLD ZPB

7521068

$3.17

9

ASM., LIMITER, LID, LH [TO 5/15/24]

2689125

$66.65

9

ASM-LIMITER,LID,LH [FROM 5/15/24]

2693239

$66.65

9

ASM-LIMITER,LID,RH [TO 5/15/24]

2689126

$66.65

9

ASM-LIMITER,LID,RH [FROM 5/15/24]

2693240

$66.65

10

WASHER-4.3X14.0X0.8 ZB

7556477

Unavailable

11

SCREW-SWPH-#8X19,MAGNI,BOSSCREW

7520960

$3.97

11

SCREW-SWPH-#8X19,MAGNI,BOSSCREW

7520960

$3.97

12

BOLT-SHOULDER,M6X1.0,7MM,9MM,POLISHED

7521021

Unavailable

13

SCREW-SHLDR,M6X1.0X7MM

7520993

$3.97

14

HINGE-LEAF,SADDLEBAG

2637439

$67.76

15

COVER-HINGE,SBAG,LH,ELT,IMCRED

5633981-10

$154.99

15

COVER-HINGE,SBAG,RH,ELT,IMCRED

5633982-10

$154.99

16

SEAL-LID, SADDLEBAG

5416972

$31.75

17

BIN-SADDLEBAG,LH,BLKELITE/GRFX [BLACK ELITE W/ GFX]

5456381-2282

$1,949.99

17

BIN-SADDLEBAG,RH,BLKELITE/GRFX [BLACK ELITE W/ GFX]

5456382-2282

$1,949.99

18

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.79

19

PLATE, BACKUP, SADDLEBAG

5257409

$8.08

20

BRACKET-MNT,SDLBAG,ECOAT

5511003-329

$48.56

21

PAD, MOUNT, SADDLEBAG

5414642

$32.37

22

GUIDE-WIRE,SBAG,LH

5455539

$32.37

22

GUIDE-WIRE,SBAG,RH

5455540

$32.37

23

COVER-WIRE,SADDLEBAG,LH

5455040

$12.13

23

COVER-WIRE,SADDLEBAG,RH

5455041

$12.13

24

ASM-BRKT,HOOP

1026382

$32.37

24

ASM-BRKT,HOOP

1026382

$32.37

25

SCREW-SH-M4X0.7X12 12.9 P&O D204

7517797

$5.22

26

SCREW-HXBH,M6X1.0X15,8.8,ZB3

7519774

Unavailable

27

HOOP-LATCH,SBAG,LH

5341019

$38.71

27

HOOP-LATCH,SBAG,RH

5341018

$38.71

28

SCREW-SH-M4X0.7X16 8.8 ZB

7518812

$3.97

29

GRILL-SADDLEBAG AUDIO,LH,F BLK

5266586-463

$69.99

29

GRILL-SADDLEBAG AUDIO,RH,F BLK

5266587-463

$69.99

30

BEZEL-SADDLBAG AUDIO,LH,ONYXBK

5454608-800

$169.43

30

BEZEL-SADDLBAG AUDIO,RH,ONYXBK

5454609-800

$169.43

31

SCREW-SWPH-#8X25 MAGNI, BOSSCREW

7521015

$5.99

32

SPEAKER-6.5",100W,AMP,2.0

4081788

$369.99

32

SPEAKER-6.5",100W,AMP,2.0,NL [INTL & JAPAN]

4081817

$389.99

33

SCR-#10X3/4 HI/LO-PN-T20,TRX-M

7517790

$2.38
