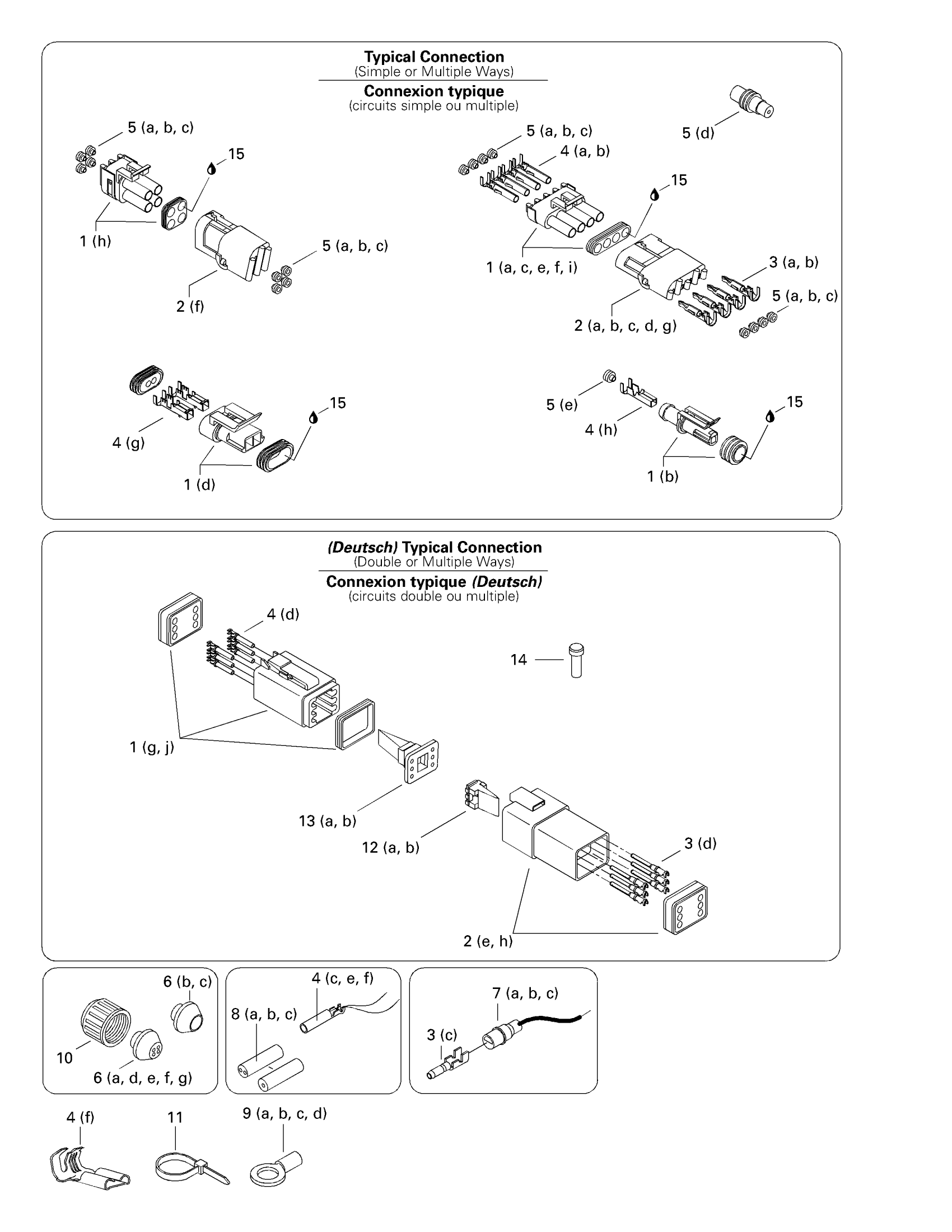

Sea-doo HX, 5882, 1997 Typical Electrical Connections Diagram

#

Description
Price

1a

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

1b

Male Housing, 1 Circuit

278001012

$16.86

1c

Male Connector, 2 Circuits

278000220

$15.49

1d

Male Connector, 2 Circuits

278001113

$16.86

1e

Male Housing, 3 Circuits

278000273

$9.59

1f

Male Housing, 4 Circuits

278000395

$15.99

1g

Male Connector, 4 Circuits | CE

278000739

$19.49

1h

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

1i

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

1j

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

2a

Female Housing, 1 Circuit

278000161

$9.59

2b

Female Housing, 2 Circuits

278000217

$9.59

2c

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

2d

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

2e

Female Housing, 4 Circuits

278000635

$16.49

2f

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

2g

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

2h

Male Terminal Housing, 6 Circuits

710001539

$19.99

3a

Male Terminal

409004300

$5.61

3b

Male Terminal | XT Models

278000222

$3.19

3c

Male Terminal

278000230

$4.39

3d

Male Terminal

278000631

$4.39

4a

Female Terminal

409007300

$0.45

4b

Female Terminal

278000223

$3.19

4c

Female Terminal | DS 650 X

278001009

$3.19

4d

Female Terminal

278000632

$2.09

4e

Female Terminal | DS 650 X

278001009

$3.19

4f

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

4g

Female Terminal

278001114

$3.19

4h

Female Terminal

278001014

$3.28

5a

Wire Seal

278000218

$4.39

5b

Wire Seal

278001065

$7.69

5c

Wire Seal

278001065

$7.69

5d

Wire Seal

278000216

$3.19

5e

Wire Seal

278001013

$3.28

6a

Grommet, 1 Circuit, Blue

293720030

Unavailable

6b

GROMMET - Call your local BRP dealership

278000098

Unavailable

6c

Grommet

278000682

Unavailable

6d

GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership

293720025

Unavailable

6e

GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership

278000193

Unavailable

6f

Grommet, 4 Circuit, Red

570026800

Unavailable

6g

Grommet

293720034

Unavailable

7a

Insulation Sheath

278000231

$5.08

7b

Insulated Sheath

278001008

$3.28

7c

Insulated Sheath

278001008

$3.28

8a

Insulated Sheath

278001007

$3.58

8b

Insulated Sheath

278001007

$3.58

8c

Insulated Sheath

278000770

$7.90

9a

Open Barrel

278000992

$2.21

9b

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

9c

Ring Terminal

278000300

Unavailable

9d

Open Barrel, 8 mm

278001138

Unavailable

10

Electric Wire Cap

278000100

Unavailable

11

Tie Wrap 94 mm | 4X4

293750001

$1.03

11

Tie Wrap 142 mm

293750002

$1.25

11

Tie-Rap 180 mm

414115200

$0.11

11

Tie-Rap 173 mm

293750009

$1.04

12a

Male Lock, 4 Circuits | CE

278000738

$3.09

12b

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

13a

Female Wedge, 4 Circuits

278000636

$4.39

13b

Female Lock, 6 Circuits

278000735

$3.19

14

Sealing Cap

293000052

$3.19

15

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
