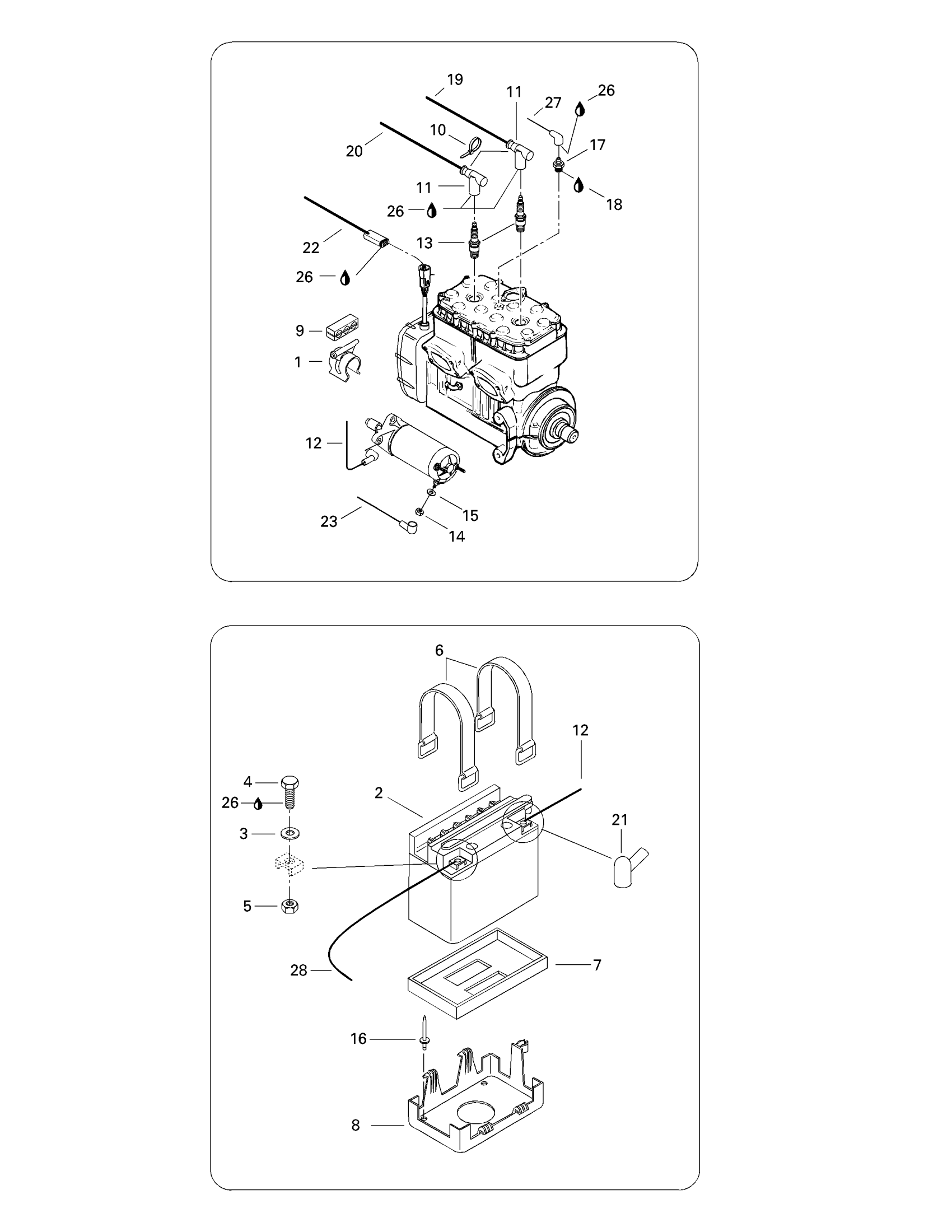

Sea-doo HX, 5882, 1997 Electrical System Diagram

#

Description
Price

1

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

2

Battery 19A | Includes 5 to 8

278001756

$153.36

3

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

4

Hex. Screw M6 X 16

207161644

$0.74

5

Hex. Nut M6

232061414

$0.53

6

Retainer Strap

293850097

$11.64

7

Battery Lower Pad

278000776

Unavailable

8

Battery Support

278000476

Unavailable

9

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

10

Tie Wrap 142 mm

293750002

$1.25

11

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

12

Battery Ground Cable

278000430

Unavailable

13

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

14

Hex. Elastic Stop Nut M6

232561600

$1.15

15

Stainless Flat Washer M6

234061600

$0.33

16

Avdel Rivet 3/16"

293150037

$0.56

17

Temperature Sensor

278000194

Unavailable

18

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

19

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

20

Spark Plug Wire 530 (MAG)

278000322

Unavailable

21

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

22

Engine Harness | (Incl. It.19,21,26,47,52,54,57,64,66,67,68)

278000472

Unavailable

23

Starter Cable (Red) | Includes 51 - 53.

278000192

Unavailable

24

Electric Wire Cap

278000100

Unavailable

25

GROMMET - Call your local BRP dealership

278000098

Unavailable

26

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

27

Temperature Wiring Ass'y | (Including 30, 31)

278000727

Unavailable

28

Battery Cable (Red) | Includes 28 - 30.

278000422

Unavailable

29

GROMMET - Call your local BRP dealership

278000098

Unavailable

30

Electric Wire Cap

278000100

Unavailable

31

Grommet, 1 Circuit, Blue

293720030

Unavailable
