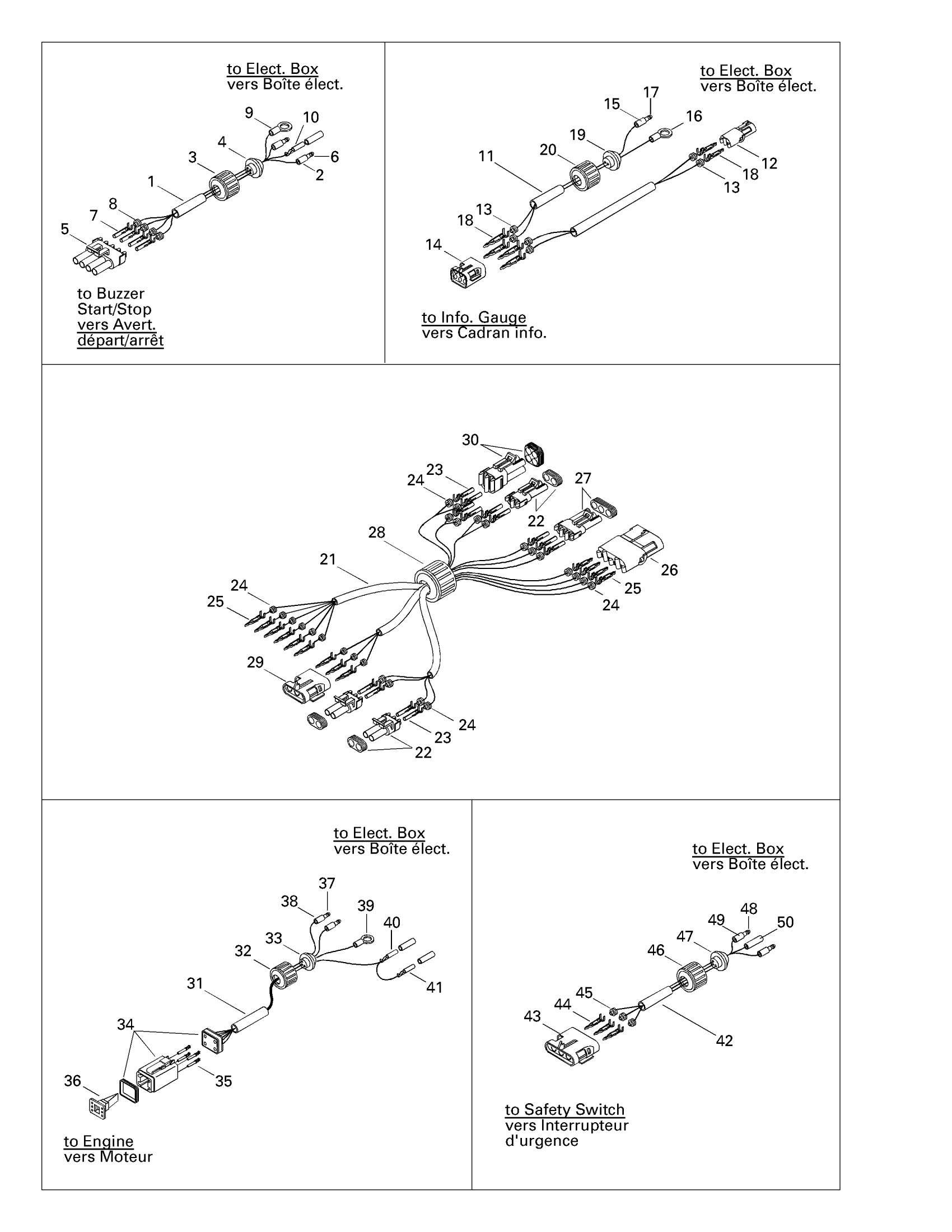

Sea-doo HX, 5882, 1997 Electrical Harness Diagram

#

Description
Price

1

Buzzer-Start/arrˆt | Includes 1 - 8.

278000598

Unavailable

2

Insulation Sheath

278000231

$5.08

3

Electric Wire Cap

278000100

Unavailable

4

Grommet, 4 Circuit, Red

570026800

Unavailable

5

Male Housing, 4 Circuits

278000395

$15.99

6

Male Terminal

278000230

$4.39

7

Female Terminal

278000223

$3.19

8

Wire Seal

278000218

$4.39

9

Ring Terminal

278000300

Unavailable

10

Female Terminal | DS 650 X

278001009

$3.19

11

GAUGE HARNESS (4 WAYS) - Call your local BRP dealership | Includes 11 - 20.

278001027

Unavailable

12

Female Housing, 2 Circuits

278000217

$9.59

13

Wire Seal

278000218

$4.39

14

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

15

Insulation Sheath

278000231

$5.08

16

Open Barrel

278000992

$2.21

17

Male Terminal

278000230

$4.39

18

Male Terminal | XT Models

278000222

$3.19

19

GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership

293720025

Unavailable

20

Electric Wire Cap

278000100

Unavailable

21

Buzzer-On/Off Switch Harness | Includes 21 - 30.

278001072

Unavailable

22

Male Connector, 2 Circuits

278000220

$15.49

23

Female Terminal

278000223

$3.19

24

Wire Seal

278000218

$4.39

25

Male Terminal | XT Models

278000222

$3.19

26

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

27

Male Housing, 3 Circuits

278000273

$9.59

28

Grommet

293720043

Unavailable

29

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

30

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

31

Engine Harness | (Incl. It.19,21,26,47,52,54,57,64,66,67,68)

278000472

Unavailable

32

Electric Wire Cap

278000100

Unavailable

33

Grommet, 4 Circuit, Red

570026800

Unavailable

34

Male Connector, 4 Circuits | CE

278000739

$19.49

35

Female Terminal

278000632

$2.09

36

Male Lock, 4 Circuits | CE

278000738

$3.09

37

Male Terminal

278000230

$4.39

38

Insulated Sheath

278001008

$3.28

39

Ring Terminal

278000300

Unavailable

40

Female Terminal | DS 650 X

278001009

$3.19

41

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

42

Harness for Anti-Theft | Includes 22 - 31.

278000658

Unavailable

43

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

44

Male Terminal | XT Models

278000222

$3.19

45

Wire Seal

278000218

$4.39

46

Electric Wire Cap

278000100

Unavailable

47

GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership

278000193

Unavailable

48

Male Terminal

278000230

$4.39

49

Insulated Sheath

278001008

$3.28

50

Female Terminal | DS 650 X

278001009

$3.19
