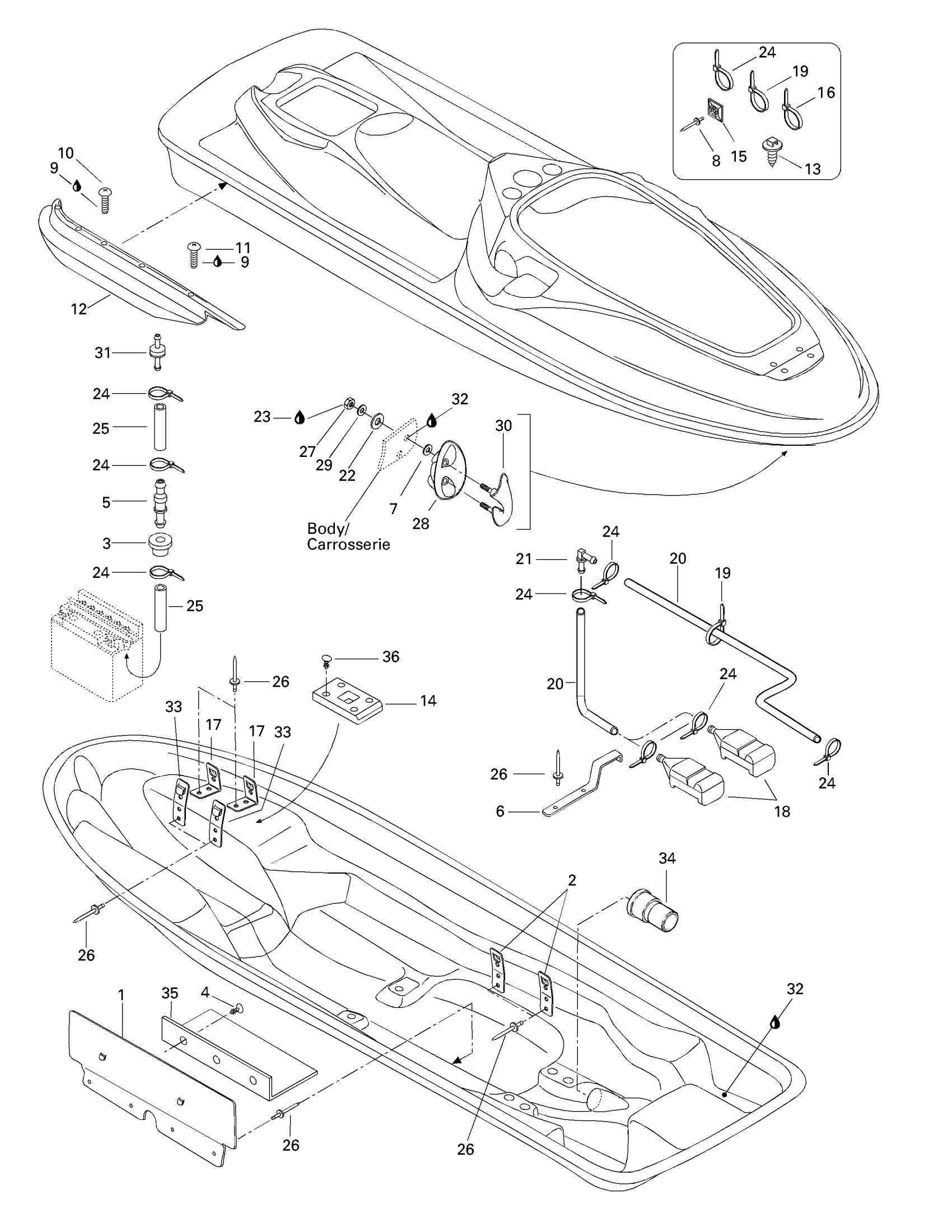

Sea-doo HX, 5882, 1997 Body Diagram

#

Description
Price

1

Shield Heat

292000239

Unavailable

2

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

3

Grommet

709200285

$9.69

4

Black, Dart

293730006

$0.99

5

Connector Male

293710062

Unavailable

6

Spring Clip

292000392

Unavailable

7

Stainless, Flat Washer 8 mm

234081600

$0.55

8

Rivet 1/8"

293150016

$0.40

9

Loctite 243, 10 ml

293800060

$21.49

10

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

11

SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership

211000009

Unavailable

12

RH Sponson (Black)

292000279

Unavailable

LH Sponson (Black)

292000280

Unavailable

13

Mount Dart

293730040

$1.04

14

Pad Foam

292000281

Unavailable

15

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

16

Tie-Rap 180 mm

414115200

$0.11

17

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

18

Screen Bailer

292000079

Unavailable

19

Tie Wrap 142 mm

293750002

$1.25

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

21

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

22

Rubber Washer

293830037

$2.68

23

Loctite 271, 10 ml

293800005

$26.99

24

Tie Wrap 94 mm | 4X4

293750001

$1.03

25

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

26

Avdel Rivet 3/16"

293150037

$0.56

27

Hex. Elastic Nut M8

232581600

$1.48

28

Shell (Yellow)

292000223

Unavailable

29

Flat Washer 8 mm, Stainless

234082600

$2.43

30

Bow-Eye (Yellow)

292000222

Unavailable

31

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

32

Silicone Sealant 51388, 300 ml

296000309

$36.99

33

Strap Clip

293850030

$11.12

34

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

35

Pad Rubber (Fuel Tank)

293830017

Unavailable

36

Black Dart

293730010

$0.99
