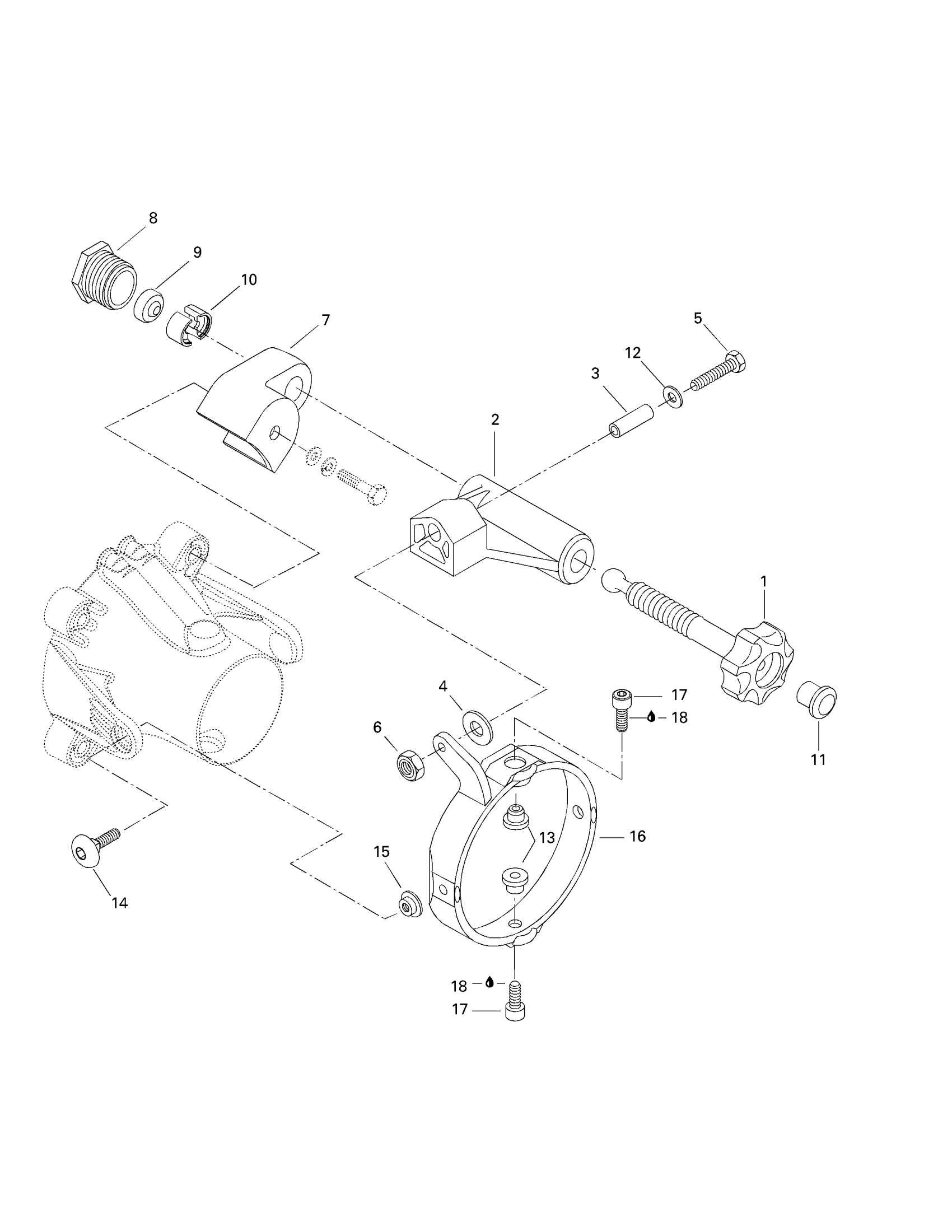

Sea-doo HX, 5882, 1997 Trim Diagram

#

Description
Price

1

Adjuster Screw

211000064

Unavailable

2

Pivot Threaded

272000068

Unavailable

3

SPACER - Call your local BRP dealership

272000074

Unavailable

4

Flat Washer M6, Stainless

234062600

$0.77

5

Hex. Screw M6 X 40

207064060

$1.69

6

Hex. Elastic Stop Nut M6

232561600

$1.15

7

Lock Support

272000097

Unavailable

8

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

9

Rubber Washer

211200022

Unavailable

10

HALF-RING - Call your local BRP dealership

272000071

Unavailable

11

Black, Cap

277000203

$9.39

12

Stainless Flat Washer M6

234061600

$0.33

13

Venturi Bushing

293900007

$5.45

14

Screw

211000007

Unavailable

15

Venturi Bushing

271000321

$8.69

16

Trimming Ring

271000303190

Unavailable

17

Socket Head Screw M8 x 10

211000089

Unavailable

18

Loctite 243, 10 ml

293800060

$21.49
