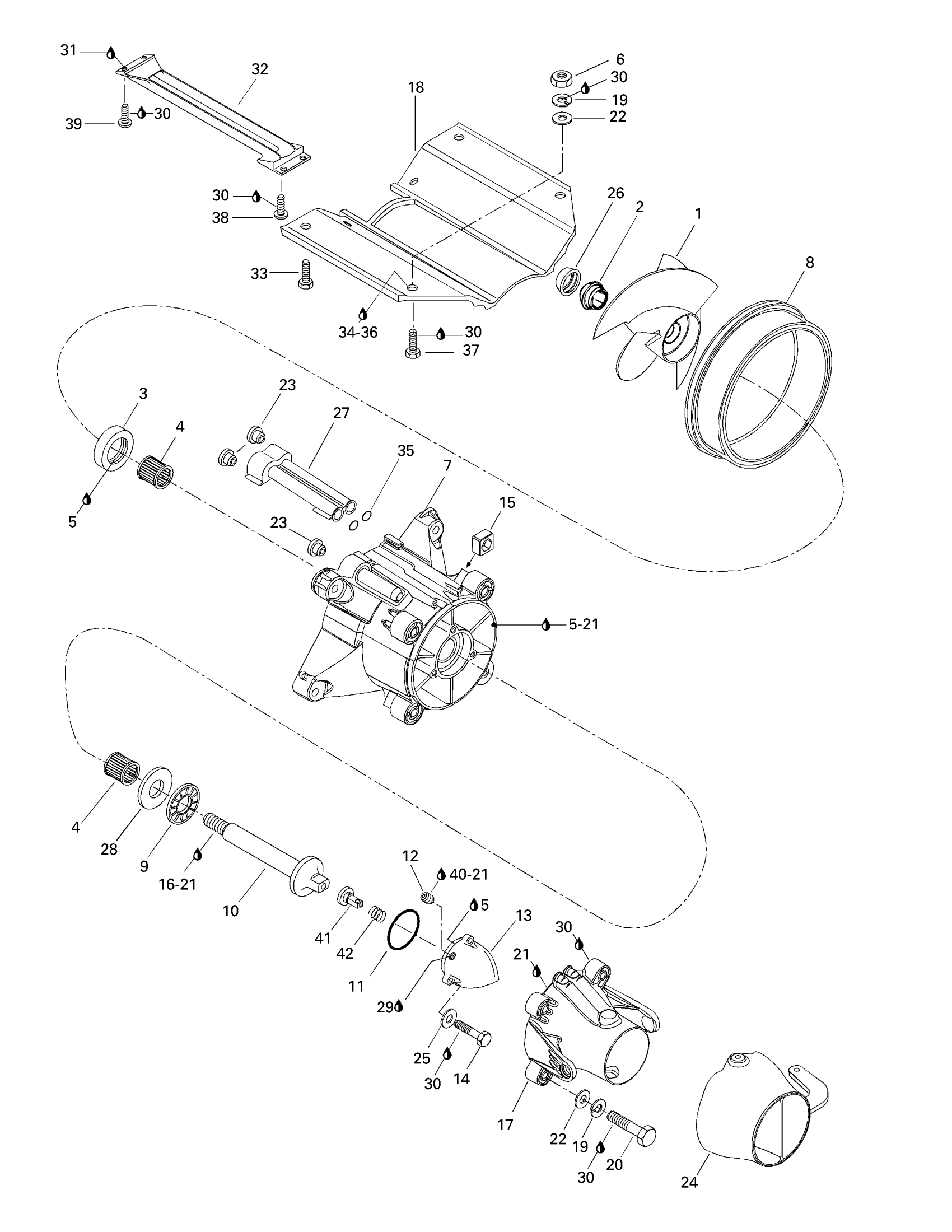

Sea-doo HX, 5882, 1997 Propulsion System Diagram

#

Description
Price

1

Impeller Assy - Call your local BRP dealership

271000497

Unavailable

2

Impeller Boot

271000516

$9.59

3

Oil Seal

267000094

$22.49

4

Needle Bearing

293350017

$27.99

5

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

6

Hex. Nut M8

232081600

$1.47

7

IMPELLER HOUSING ASS'Y - Call your local BRP dealership | Includes 7 - 10.

295500429

Unavailable

8

Wear Ring

271000290

$58.49

9

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

10

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

11

O-Ring

293300011

$8.64

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

13

IMPELLER COVER - Call your local BRP dealership

271000670

Unavailable

14

Hex. Screw M5 X 20

207152060

$1.47

15

Square Nut M8

211100033

$17.99

16

Loctite 271, 10 ml

293800005

$26.99

17

Venturi Ass'y | GSI 5622.

271000446

Unavailable

18

Ride Plate

271000519

Unavailable

19

Lock Washer 8 mm, Stainless

234181601

$0.55

20

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086060

$1.90

21

Was 293800041 Loctite Primer 7649

219704458

$39.99

22

Flat Washer 8 mm, Stainless

234082600

$2.43

23

O-RING - Call your local BRP dealership

293300040

Unavailable

24

Steering Nozzle

271000746

$209.99

25

Flat Washer M5, Stainless

234051600

$0.77

26

Impeller Ring

271000517

$9.59

27

WATER OUTLET - Call your local BRP dealership

271000366

Unavailable

28

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

29

SYNTHETIC GEAR OIL, 75W90, 12 X 32 OZ - Call your local BRP dealership

293600043

Unavailable

30

Loctite 243, 10 ml

293800060

$21.49

31

Instant Gasket

219701421

$51.99

32

Pump Grate

271000315190

Unavailable

33

Hex. Screw M8 X 30

207183060

$1.58

34

Instant Gasket

219701421

$51.99

35

O-Ring

293300013

$8.18

36

Silicone Sealant 51388, 300 ml

296000309

$36.99

37

Hex. Screw M8 X 35

207083560

$1.47

38

Pan Hd Screw M6 x 12

215861268

Unavailable

39

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208662060

Unavailable

40

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

41

Pusher

271000703

Unavailable

42

SPRING - Call your local BRP dealership

271000704

Unavailable
