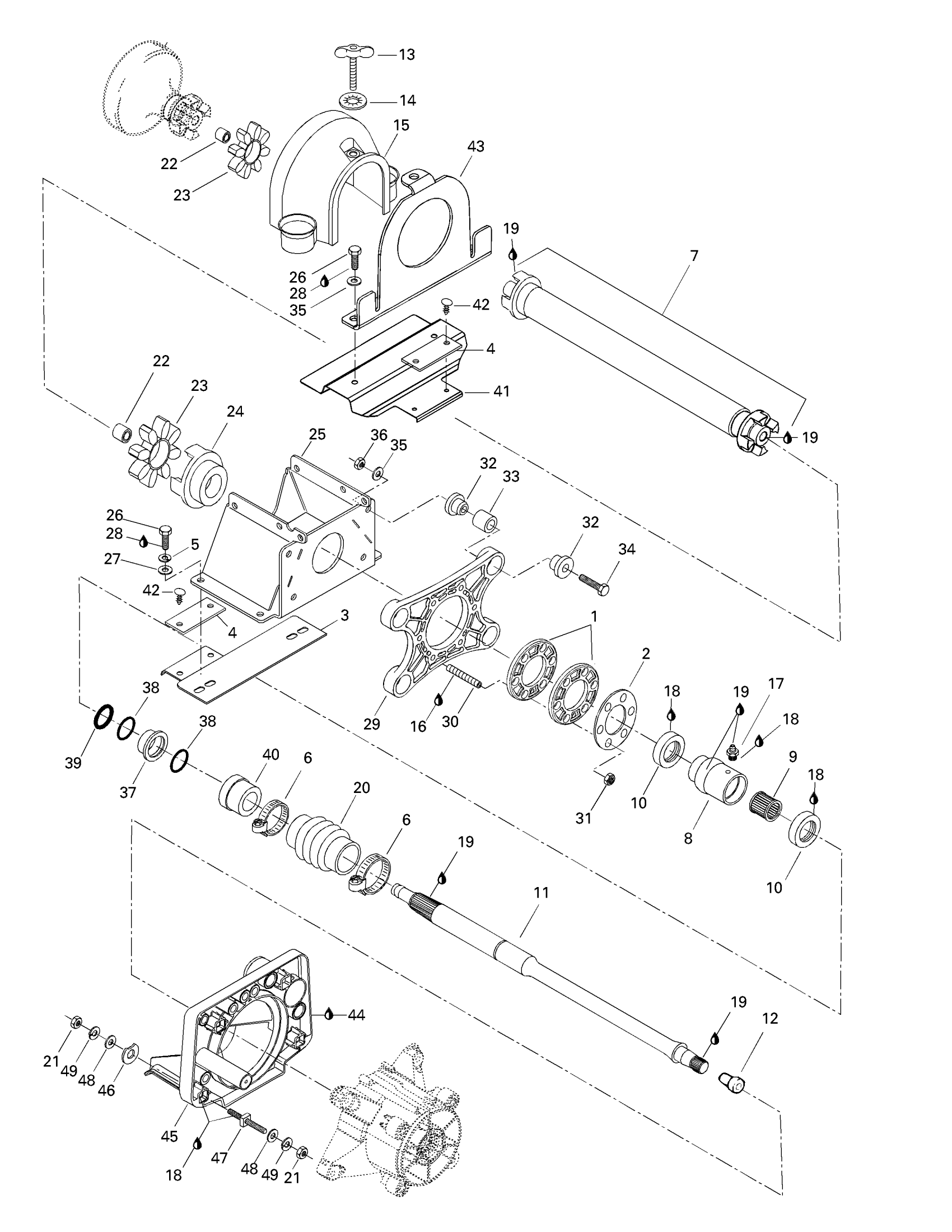

Sea-doo HX, 5882, 1997 Drive System Diagram

#

Description
Price

1

Alignement Washer

272000049190

Unavailable

2

Fixation Washer

272000051

Unavailable

3

Scupper Cover

292000273

Unavailable

4

Rubber Pad

293830035

Unavailable

5

Lock Washer 8 mm, Stainless

234181601

$0.46

6

Tridon Clamp

293650035

$5.80

7

Shaft Drive Ass'y

272000118

Unavailable

8

JOINT SUPPORT - Call your local BRP dealership

272000012400

Unavailable

9

NEEDLE BEARING SCE1416-L271/STD#E - Call your local BRP dealership

293350007

Unavailable

10

DOUBLE LIP SEAL - Call your local BRP dealership

293200012

Unavailable

11

Drive Shaft

272000009

Unavailable

12

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

13

Wing Screw M6 x 16

211000070

Unavailable

14

BOLT-RETAINER - Call your local BRP dealership

211200026

Unavailable

15

Flywheel Guard

272000052

Unavailable

16

Loctite 271, 10 ml

293800005

$20.77

17

GREASE FITTING - Call your local BRP dealership

293550008

Unavailable

18

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

19

Synthetic Grease, 400 G

293550010

Unavailable

20

BELLOWS - Call your local BRP dealership

272000184

Unavailable

21

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

22

Bushing Snap

293900011

Unavailable

23

Adaptor Rubber

293830026

Unavailable

24

Coupler Ass'y 1/Suspension

272000046

Unavailable

25

Support Shaft/suspension

272000099

Unavailable

26

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

27

Flat Washer 8 mm, Stainless

234082600

$1.98

28

Loctite 243, 10 ml

293800060

$20.77

29

Damping Support | Includes 39 - 44.

272000048190

Unavailable

30

STUD M6 X 30 - Call your local BRP dealership

211300016

Unavailable

31

Hex. Elastic Stop Nut M6

232561600

$0.92

32

Rubber Bushing

293830031

Unavailable

33

Bushing

274000114

$6.62

34

Hex. Screw M8 X 40

207084060

$1.85

35

Stainless, Flat Washer 8 mm

234081600

$0.46

36

Hex. Elastic Nut M8

232581600

$1.25

37

Support Ring

272000064

$53.27

38

O-Ring

293300032

$4.89

39

O-Ring

293300036

$8.89

40

Carbon Ring

272000770

Unavailable

41

Cover Scupper

292000221

Unavailable

42

Black, Dart

414644300

$0.78

43

Guard Shaft

272000098

Unavailable

44

Instant Gasket

219701421

$50.02

45

Support pump

272000016

Unavailable

46

Shim 0.3 mm

272000053

$8.02

47

Square Stud

250300022

$15.57

48

Flat Washer 10 mm, Stainless

234001600

$0.91

49

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92
