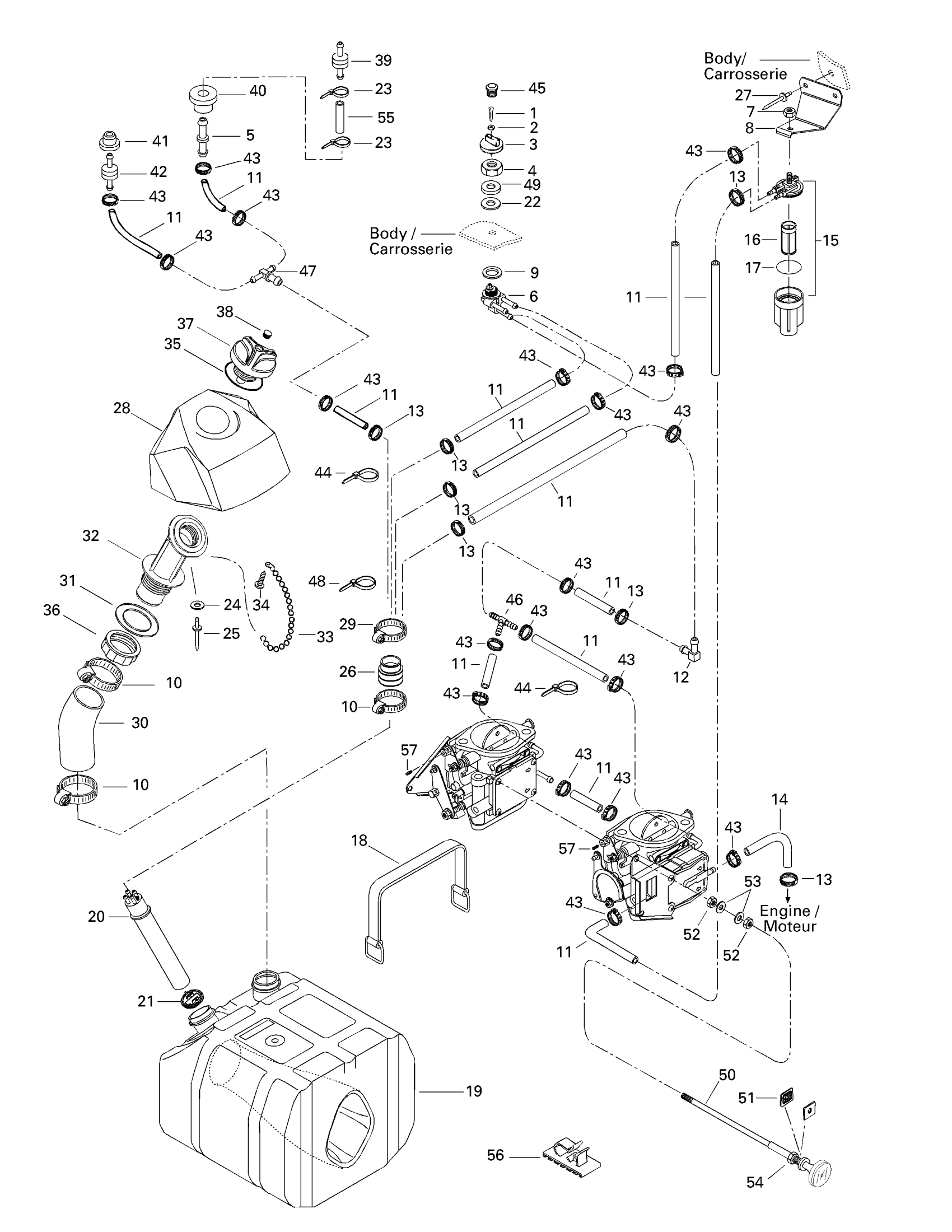

Sea-doo HX, 5882, 1997 Fuel System Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Flat Washer 4 mm

234040600

$0.46

3

FUEL VALVE KNOB - Call your local BRP dealership

275500299

Unavailable

4

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

5

Male Connector

414518500

$3.50

6

Fuel Valve

275500098

$34.42

7

Hex. Elastic Stop Nut M6

232561600

$0.92

8

Fuel Filter Support

275500228

Unavailable

9

GASKET - Call your local BRP dealership

293250004

Unavailable

10

Tridon Clamp

293650023

$11.72

11

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

12

Elbow Fitting 90 Deg

293710050

Unavailable

13

Tridon Gear Clamp

293650170

$1.74

14

IMPULSE HOSE - Call your local BRP dealership

275500282

Unavailable

15

Fuel Filter Ass'y | Includes 15 - 17.

275500088

$41.51

16

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

17

O-Ring

275500090

$6.84

18

STRAP - Call your local BRP dealership

293850022

Unavailable

19

FUEL TANK - Call your local BRP dealership

275500029

Unavailable

20

BAFFLE - Call your local BRP dealership | Includes 20 - 22.

275500318

Unavailable

21

Fuel Filter

275500249

Unavailable

22

Gasket

293250005

Unavailable

23

Tie Wrap 94 mm | 4X4

293750001

$0.83

24

Flat Washer M3, Stainless

234032600

$0.54

25

Pop Rivet 1/8"

390407900

$1.17

26

Tube Adapter

275500111

Unavailable

27

Avdel Rivet 3/16"

293150037

$0.47

28

Tower Fuel

275500303

Unavailable

29

Tridon Clamp

293650035

$5.80

30

Filler Neck Hose

275500044

Unavailable

31

Gasket

293250029

$12.06

32

FUEL FILLER NECK - Call your local BRP dealership

275500229

Unavailable

33

Chain

275500230

Unavailable

34

Screw K40 X 10

241140060

$1.25

35

Gasket

293250017

Unavailable

36

Filler Neck Nut, Fuel

211100012

$10.02

37

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$22.72

38

Black, Snap Cap

293000034

$7.48

39

Check Valve This part replaces 275500087.

275501246

Unavailable

40

Grommet

709200285

$7.09

41

Grommet

293720029

$1.13

42

Check Valve This part replaces 275500087.

275501246

Unavailable

43

Oetiker Clamp

293650042

$1.40

44

Tie Wrap 142 mm

293750002

$0.88

45

Black, Cap

275500241

$2.76

46

Y-Fitting

293710059

$8.19

47

T-Fitting | Europe

293710024

$12.82

48

Tie-Rap 180 mm

414115200

$0.09

49

WASHER - Call your local BRP dealership

293050003

Unavailable

50

Choke Cable | Includes 50 - 54.

277000648

Unavailable

51

Choke Plate

291000457

Unavailable

52

Hex. Nut M6

232160600

$1.08

53

Stainless Flat Washer M6

234061600

$0.25

54

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

55

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

56

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

57

Allen Screw M4 x 6

210100014

Unavailable
