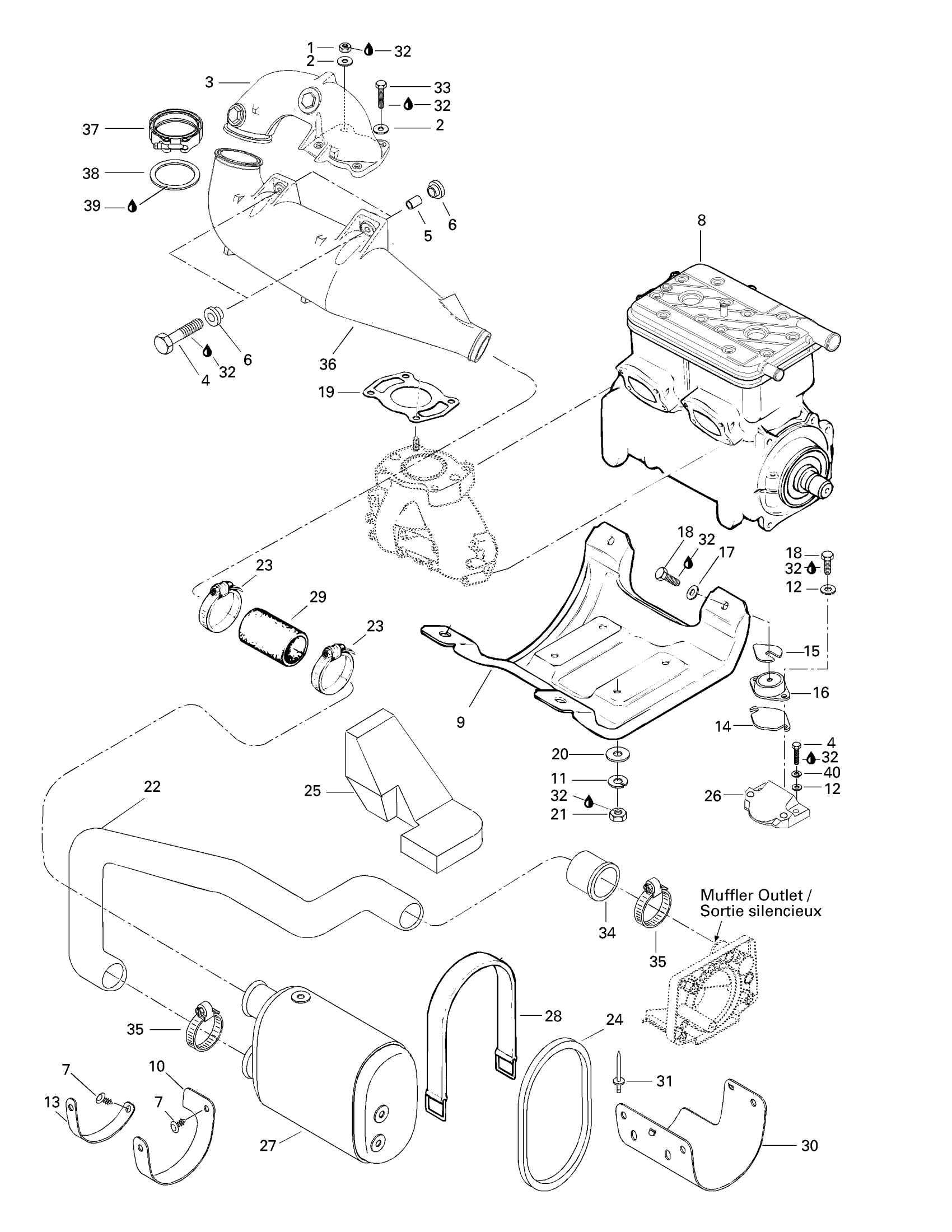

Sea-doo HX, 5882, 1997 Engine Support And Muffler Diagram

#

Description
Price

1

Hex. Nut M8

232081600

$1.47

2

Flat Washer M8.5 x 18

293050001

$3.07

3

Head Pipe Ass'y

274000154

Unavailable

4

Hex. Screw M8 X 40

207084060

$2.22

5

Bushing

274000114

$8.85

6

Rubber Bushing

293830031

Unavailable

7

Black, Dart

414644300

$0.98

8

Rotax Engine 717 (White)

270000292

Unavailable

9

Engine Support

270000312

Unavailable

10

Pad Rubber

274000238

Unavailable

11

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

12

Stainless, Flat Washer 8 mm

234081600

$0.55

13

Pad Rubber

274000242

Unavailable

14

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

15

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

16

Rubber Mount

270000425

$71.99

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

19

Exhaust Gasket This part replaces 290950253.

420950253

$14.83

20

Flat Washer 10 mm, Stainless

234001600

$1.15

21

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

22

Hose Formed

274000471

Unavailable

23

Tridon Clamp

293650036

$7.49

24

Rubber Strip

293830034

Unavailable

25

Hose Support

274000236

Unavailable

26

Adaptor (Support Engine)

270000224

Unavailable

27

Muffler

274000465

Unavailable

28

Retainer Strap

293850097

$11.64

29

Exhaust Hose

274000531

Unavailable

30

Support Muffler

274000237

Unavailable

31

Avdel Rivet 3/16"

293150037

$0.56

32

Loctite 243, 10 ml

293800060

$21.49

33

Hex. Screw M8 X 30

207183060

$1.58

34

Hose Adaptor

274000383

Unavailable

35

Tridon Clamp

293650023

$13.49

36

Cone Pipe ass'y

274000190

Unavailable

37

Clamp

274000151

Unavailable

38

Sealing Ring

274000152

Unavailable

39

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

40

Washer Lock 8 mm

271383600

Unavailable
