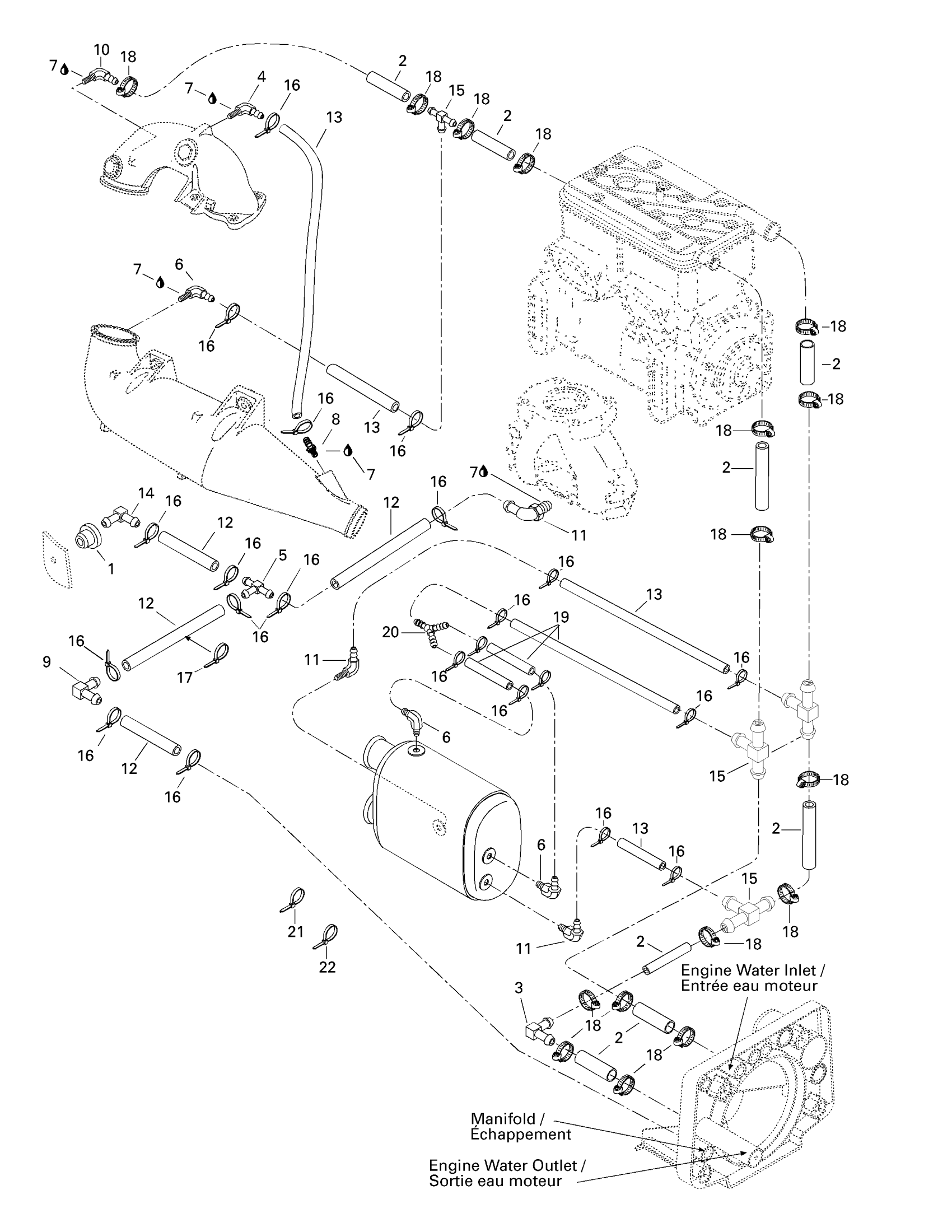

Sea-doo HX, 5882, 1997 Cooling System Diagram

#

Description
Price

1

Grommet

293720029

$1.59

2

Was 276000001 Hose 12.5 mm

219704394

$51.99

3

Elbow Fitting

414523600

$4.86

4

Elbow Fitting 90°

293710018

Unavailable

5

T-FITTING - Call your local BRP dealership

293710061

Unavailable

6

Elbow Fitting 90°

293710048

Unavailable

7

Was 293800013 Loctite 56765

219704454

$65.99

8

Male Connector

293710037

$10.49

9

Elbow Fitting 90 Deg

414650200

Unavailable

10

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

11

Elbow Fitting

293700016

Unavailable

12

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

13

Hose 6 Mm 15000Mm Long

219704360

$132.49

14

Male Connector

414580700

$4.12

15

T-FITTING - Call your local BRP dealership

293710052

$12.70

16

Tie Wrap 94 mm | 4X4

293750001

$1.03

17

Tie-Rap 180 mm

414115200

$0.11

18

Tridon Gear Clamp

293650172

$3.09

19

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

20

Y-Fitting

293710059

$9.69

21

Tie Wrap 142 mm

293750002

$1.25

22

Tie Wrap 368 mm

293750008

$1.04
