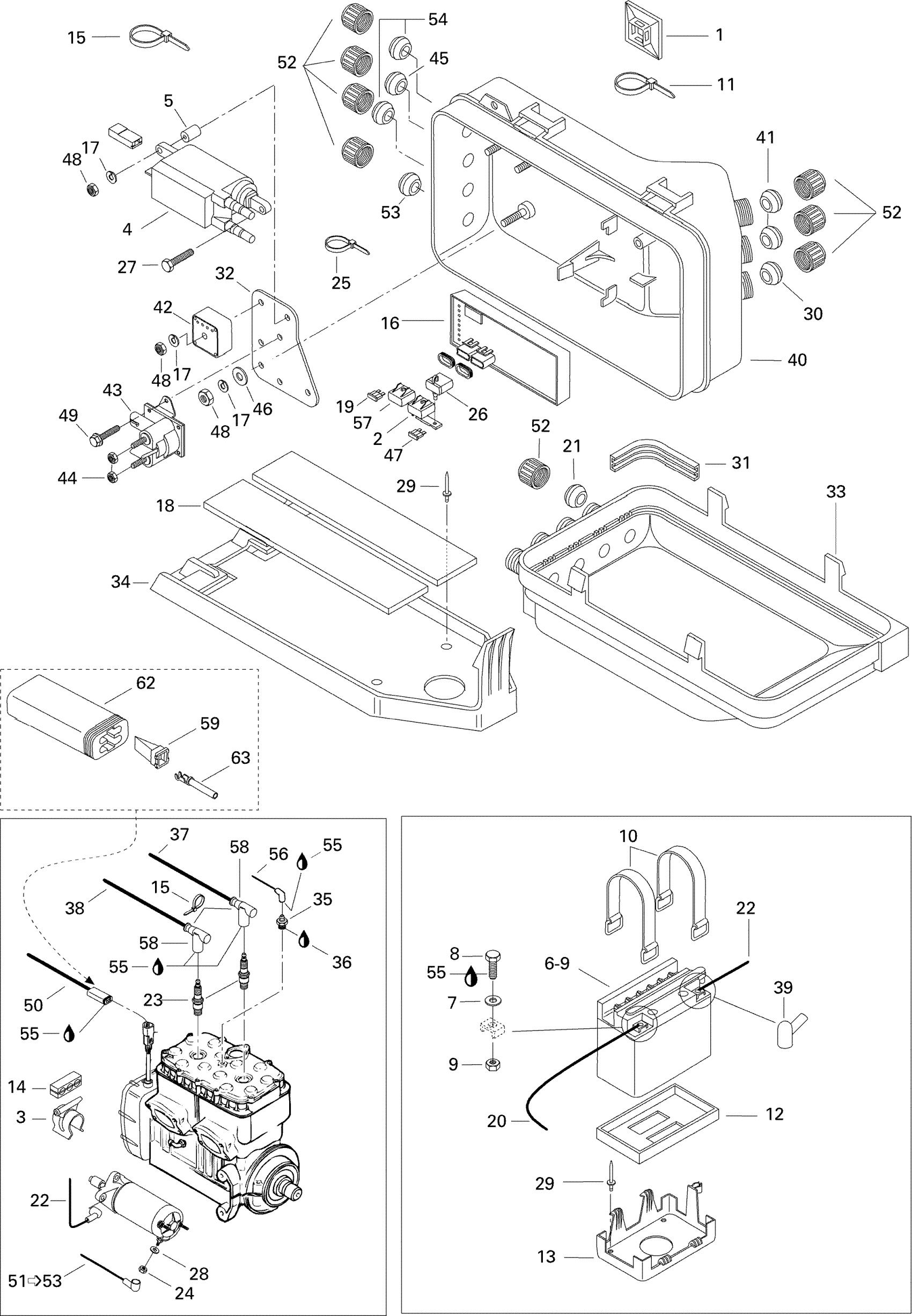

Sea-doo HX, 5881, 1996 Electrical System Diagram

#

Description
Price

1

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

2

Fuse Holder Cap

278001326

$7.69

3

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

4

Ignition Coil

278000202

Unavailable

5

SPACER - Call your local BRP dealership

278000235

Unavailable

6

Battery 19A | Includes 5 to 8

278001756

$153.36

7

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

8

Hex. Screw M6 X 16

207161644

$0.74

9

Hex. Nut M6

232061414

$0.53

10

Retainer Strap

293850097

$11.64

11

Tie-Rap 173 mm

293750009

$1.04

12

Battery Lower Pad

278000492

Unavailable

13

Battery Support

278000476

Unavailable

14

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

15

Tie Wrap 142 mm

293750002

$1.25

16

ELECTRONIC MODULE ASS'Y - Call your local BRP dealership | Includes 11 - 23.

278000822

Unavailable

17

Lock Washer Helical M6

234161601

$1.15

18

Rubber Strip

293830012

Unavailable

19

Fuse, 15 Amperes

278000343

$3.28

20

Battery Cable (Red) | Includes 28 - 30.

278000422

Unavailable

21

Grommet, 1 Circuit, Blue

293720030

Unavailable

22

Battery Ground Cable

278000430

Unavailable

23

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

24

Hex. Elastic Stop Nut M6

232561600

$1.15

25

Tie Wrap 94 mm | 4X4

293750001

$1.03

26

Fuse Holder

278000379

Unavailable

27

Self Tapping Screw M6.3 x 25

215462550

Unavailable

28

Stainless Flat Washer M6

234061600

$0.33

29

Avdel Rivet 3/16"

293150037

$0.56

30

GROMMET - Call your local BRP dealership

278000098

Unavailable

31

Gasket

278000181

Unavailable

32

Mounting Plate

278000615

Unavailable

33

Electric Box Cover

278000786

Unavailable

34

Box Support

278000780

Unavailable

35

Temperature Sensor

278000194

Unavailable

36

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

37

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

38

Spark Plug Wire 530 (MAG)

278000322

Unavailable

39

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

40

Electric Box Base

278000781

Unavailable

41

Grommet

278000682

Unavailable

42

RECTIFIER ASS'Y - Call your local BRP dealership | Includes 1 - 6.

278000123

Unavailable

43

Starter Relay

278003012

$42.49

44

Hex. Elastic Stop Nut M6

232561600

$1.15

45

GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership

293720025

Unavailable

46

Stainless Flat Washer M6

234061600

$0.33

47

Fuse, 5 Amperes | CE

278000344

$3.28

48

Hex. Nut M6

232061600

$1.15

49

Hex. Flange Screw M6 X 10

210261040

$1.48

50

Engine Harness | (Incl. It.19,21,26,47,52,54,57,64,66,67,68)

278000472

Unavailable

51

Starter Cable (Red) | Includes 51 - 53.

278000192

Unavailable

52

Electric Wire Cap

278000100

Unavailable

53

GROMMET - Call your local BRP dealership

278000098

Unavailable

54

Grommet, 4 Circuit, Red

570026800

Unavailable

55

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

56

Temperature Wiring Ass'y | (Including 30, 31)

278000727

Unavailable

57

FUSE CAP - Call your local BRP dealership

278000378

Unavailable

58

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

59

Male Lock, 4 Circuits | CE

278000738

$3.09

60

Male Terminal

278000230

$4.39

61

Insulation Sheath

278000231

$5.08

62

Male Connector, 4 Circuits | CE

278000739

$19.49

63

Female Terminal

278000632

$2.09
