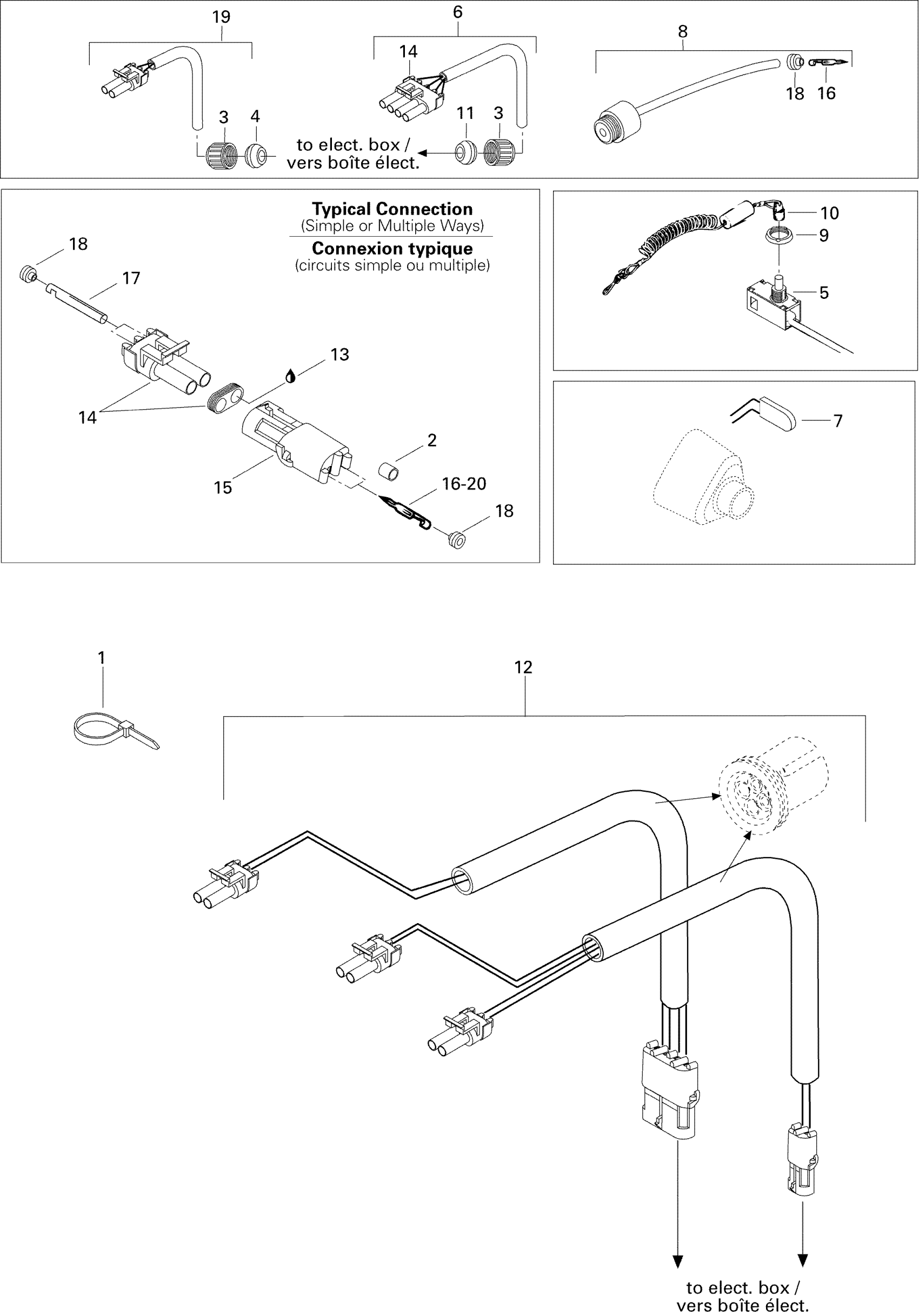

Sea-doo HX, 5881, 1996 Electrical Accessories Diagram

#

Description
Price

1

Tie Wrap 94 mm | 4X4

293750001

$1.03

2

Insulation Sheath

278000231

$5.08

3

Electric Wire Cap

278000100

Unavailable

4

GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership

293720025

Unavailable

5

Safety Switch | Includes 41 - 43.

278000552

$149.99

6

Buzzer-Start/arrˆt | Includes 1 - 8.

278000598

Unavailable

7

SWITCH-IGNIT. - Call your local BRP dealership | Includes 64 - 66. This part replaces 278000501.

278000427

Unavailable

8

BUZZER ASS?Y - Call your local BRP dealership | INCLUDES 1 TO 3

278000881

Unavailable

9

Safety Switch Nut

278000099

Unavailable

10

Safety Lanyard

278001431

$47.49

11

Grommet, 4 Circuit, Red

570026800

Unavailable

12

6 Ways Harness | Includes 14,15,16,17,18

278000728

Unavailable

13

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

14

Male Connector, 2 Circuits

278000220

$15.49

15

Female Housing, 1 Circuit

278000161

$9.59

15

Female Housing, 2 Circuits

278000217

$9.59

15

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

16

Male Terminal | XT Models

278000222

$3.19

17

Female Terminal

278000223

$3.19

18

Wire Seal

278000218

$4.39

19

Harness Safety Switch | Includes 3,4

278000672

Unavailable

20

Male Terminal

278000230

$4.39
