09- Seat

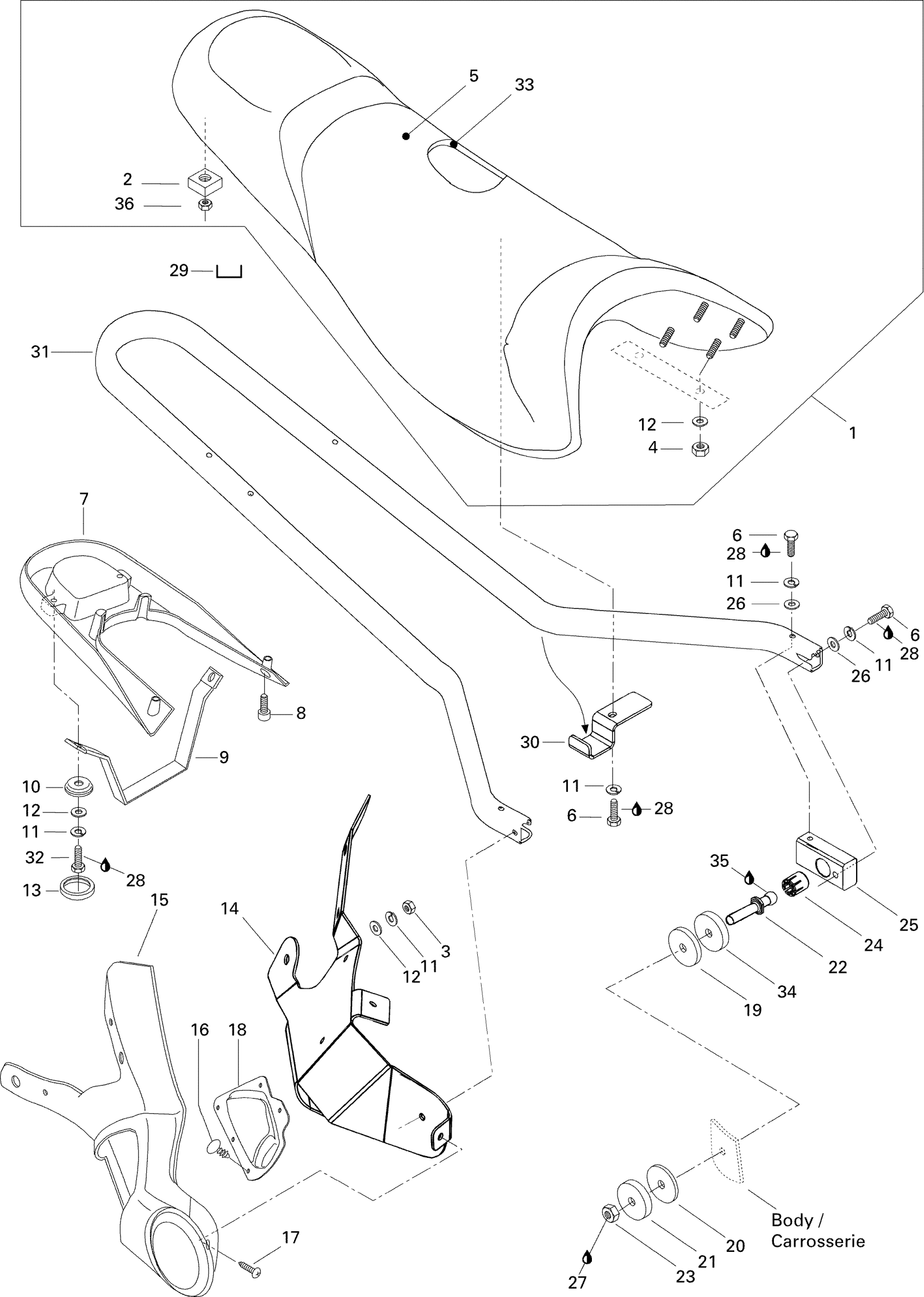

Sea-doo HX, 5881, 1996 09- Seat Diagram
#
1
Seat Ass'y (Yellow) | (Incl. 2,3,4,5,12,33)
269000322
Unavailable
2
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
3
Hex. Nut M6
232061600
$1.15
4
Hex. Nut M6
232160600
$1.15
5
Seat Cover
269000323
Unavailable
6
Hex. Forming Screw M6 X 20
207162060
$1.29
7
Cover Body Rear
269000324
Unavailable
8
Hex. Flange Screw K40 X 16
241141660
$1.48
9
Strap (Black)
269000325
Unavailable
10
Retaining Washer
277000096
Unavailable
11
Lock Washer Helical M6
234161601
$1.15
12
Flat Washer M6, Stainless
234062600
$0.77
13
Snap Cap
210000019
Unavailable
14
Arm RH
269000138
Unavailable
14
Arm LH
269000253
Unavailable
15
Cover Frame RH
269000326
Unavailable
15
COVER FRAME LH - Call your local BRP dealership
269000327
Unavailable
16
Black, Dart
414644300
$0.98
17
Tuflock Phillips Plastic Screw
414745900
$1.69
18
Pad-Knee RH
269000390
Unavailable
18
Pad-Knee LH
269000391
Unavailable
19
RUBBER WASHER - Call your local BRP dealership
293830029
Unavailable
20
RUBBER WASHER - Call your local BRP dealership
250200028
Unavailable
21
Washer
269000137
Unavailable
22
Rotule-Seat
269000210
Unavailable
23
Hex. Elastic Nut M8
232581600
$1.48
24
Bushing-Snap
293900013
Unavailable
25
Block-Pivot
269000267
Unavailable
26
Stainless Flat Washer M6
234061600
$0.33
27
Loctite 271, 10 ml
293800005
$26.99
28
Loctite 243, 10 ml
293800060
$21.49
29
Staple
293730005
Unavailable
30
Keeper Base
269000139
Unavailable
31
Seat Frame
269000376
Unavailable
32
Hex. Screw M6 X 25
207162560
$1.47
33
Seat Foam
269000318
Unavailable
34
WASHER - Call your local BRP dealership
211200030
Unavailable
35
Synthetic Grease, 400 G
293550010
Unavailable
36
Hex. Nut M6
232061600
$1.15
