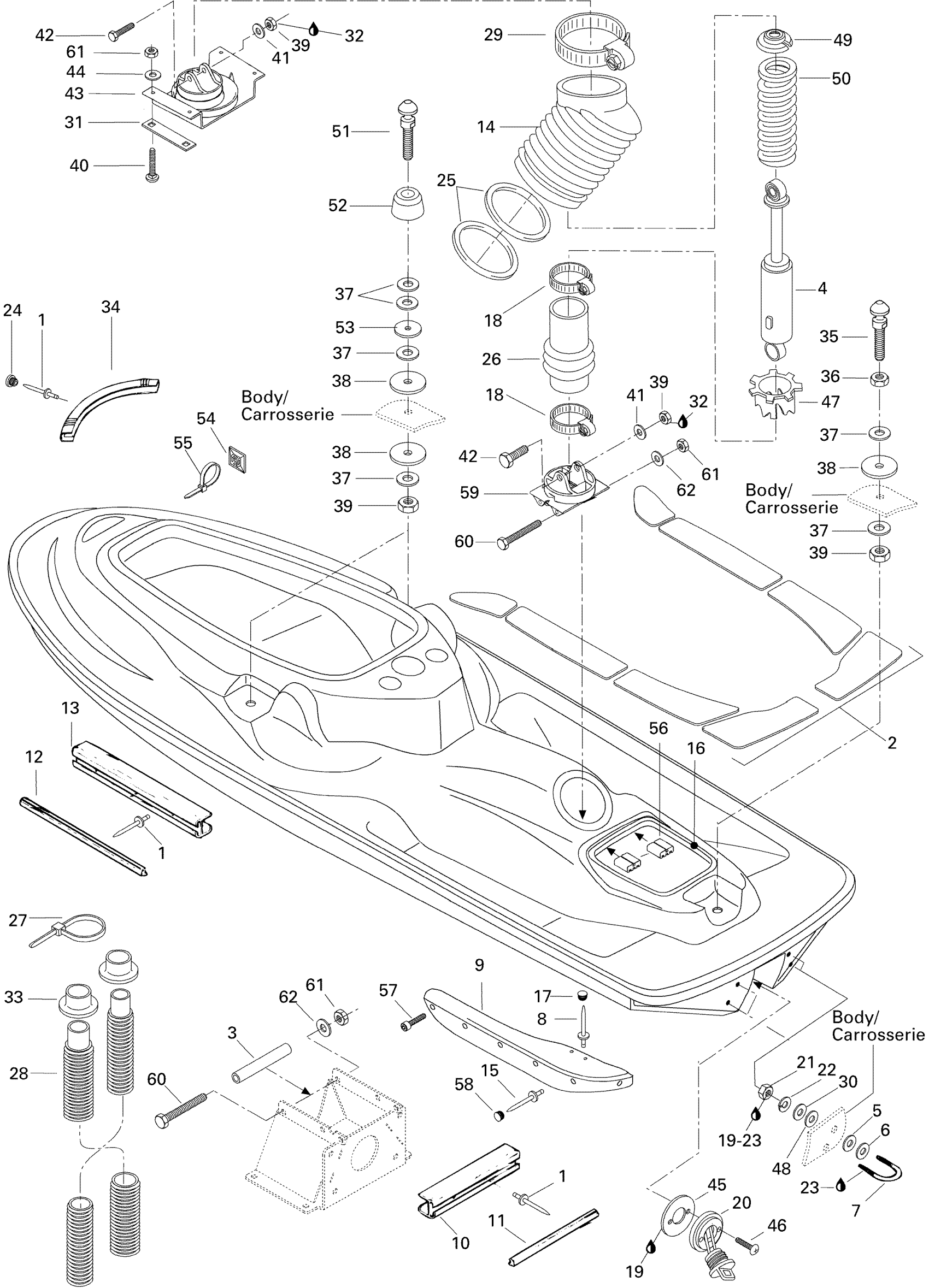

Sea-doo HX, 5881, 1996 Body 2 Diagram

#

Description
Price

1

Pop Rivet 3/16"

293150014

$1.09

2

HX Carpet set (Black)

291000930

Unavailable

3

SPACER - Call your local BRP dealership

291000757

Unavailable

4

Shock

291000715

Unavailable

5

Flat Washer 8 mm, Nylon

234081100

$1.39

6

Flat Washer M8.5 x 18

293050001

$3.07

7

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

8

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

9

Right Bumper Corner | .

291000806

Unavailable

9

Left Bumper Corner | .

291000807

Unavailable

10

Black, Side Bumper

204050270

$179.99

11

Black, Rear Bumper Trim - Call your local BRP dealership

204050279

Unavailable

12

SIDE BUMPER TRIM - Call your local BRP dealership | .

291000803

Unavailable

13

Black, Side Bumper

204050270

$179.99

14

Bellow Outer

291000121

Unavailable

15

Pop Rivet 3/16"

293150013

$1.37

16

Was 293200017 Neoprene Seal

219704365

$149.99

17

Black, Snap Cap

293000014

$1.09

18

TRIDON GEAR CLAMP - Call your local BRP dealership

293650006

Unavailable

19

Silicone Sealant 51388, 300 ml

296000309

$36.99

20

Drain Plug

292000187

$14.49

21

Hex. Nut M8

232081600

$1.47

22

Lock Washer 8 mm, Stainless

234181601

$0.55

23

Loctite 271, 10 ml

293800005

$26.99

24

Bumper Plug, Black

291000339

$2.99

25

Retainer Ring

293000012

Unavailable

26

Bellow Shock

291000120

Unavailable

27

Tie Wrap 368 mm

293750008

$1.04

28

Hose Vent

291000693

Unavailable

29

Tridon Clamp

293650054

$9.49

30

Flat Washer 8 mm, Stainless

234082600

$2.43

31

Plate Retaining

291000728

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

Grommet

293720036

Unavailable

34

BUMPER NOSE - Call your local BRP dealership

291000801

Unavailable

35

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

36

Hex. Jam Nut M10

232100600

$2.22

37

Flat Washer 10 mm, Stainless

234002600

$2.22

38

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

39

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

40

Bolt Carriage M6 x 50

211000076

Unavailable

41

Flat Washer 10 mm, Stainless

234001600

$1.15

42

Hex. Screw M10 x 60

215606060

Unavailable

43

Support Shock Upper

291000692190

Unavailable

44

Flat Washer M6, Stainless

234062600

$0.77

45

GASKET - Call your local BRP dealership

293250030

Unavailable

46

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

47

Ring Adjuster

291000718

Unavailable

48

RUBBER WASHER - Call your local BRP dealership

250200028

Unavailable

49

Spring Stopper

706200881

$12.99

50

Spring

291000794

Unavailable

51

Stud Latch

291000664

Unavailable

52

Rubber Pad

293830025

Unavailable

53

Flat Washer

213200017

Unavailable

54

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

55

Tie-Rap 180 mm

414115200

$0.11

56

Spacer

291000723

Unavailable

57

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

58

Bumper Plug, Black

291000339

$2.99

59

Support Lower Shock (Black)

291000119190

Unavailable

60

SCREW-HEX.CAP DIN.931A2 - Call your local BRP dealership

211000067

Unavailable

61

Hex. Elastic Stop Nut M6

232561600

$1.15

62

Stainless Flat Washer M6

234061600

$0.33
