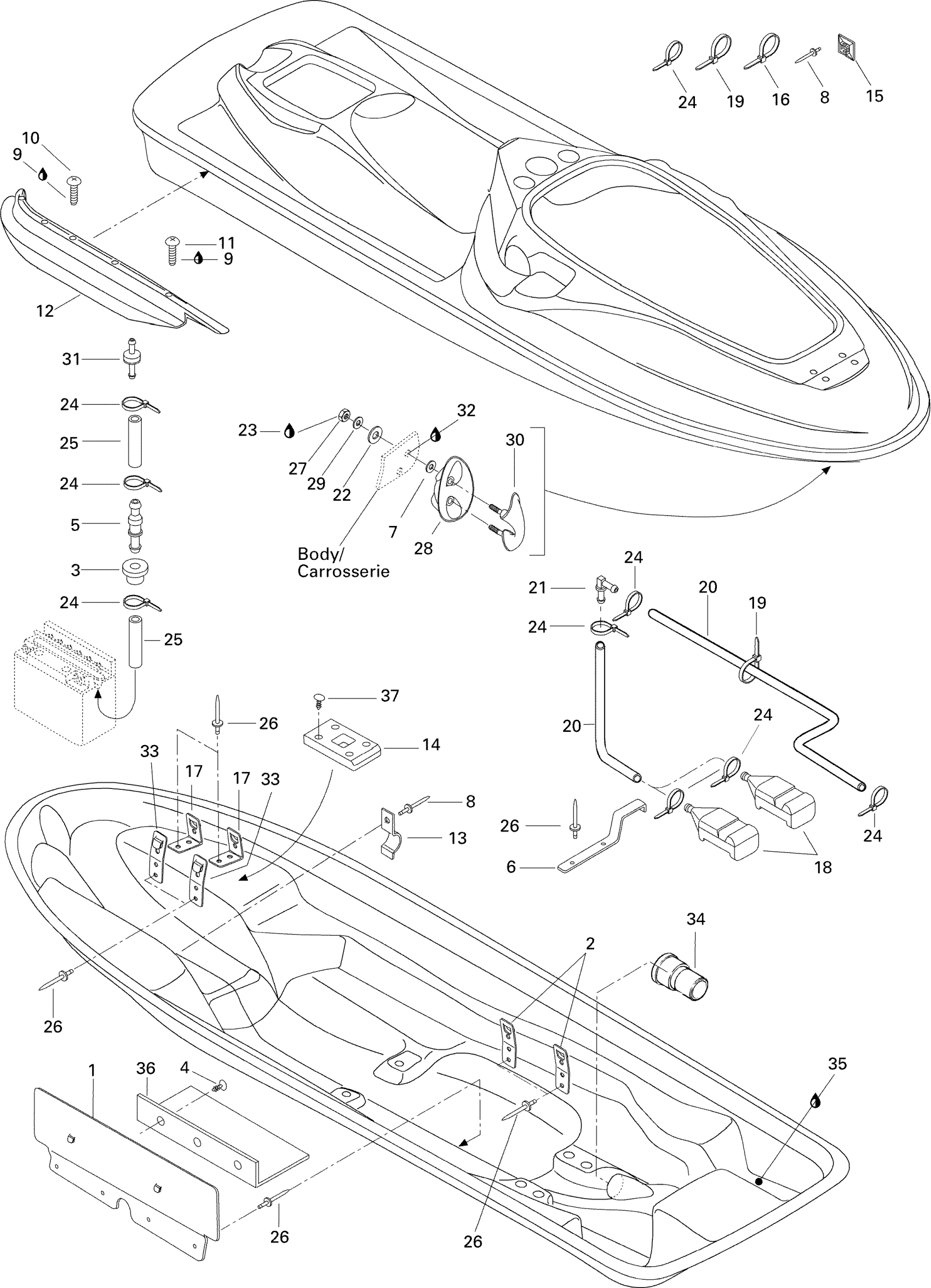

Sea-doo HX, 5881, 1996 Body 1 Diagram

#

Description
Price

1

Shield Heat

292000239

Unavailable

2

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

3

Grommet

709200285

$9.69

4

Black, Dart

293730006

$0.99

5

Connector Male

293710062

Unavailable

6

Spring Clip

292000272

Unavailable

7

Stainless, Flat Washer 8 mm

234081600

$0.55

8

Rivet 1/8"

293150016

$0.40

9

Loctite 243, 10 ml

293800060

$21.49

10

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

11

SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership

211000009

Unavailable

12

RH Sponson (Black)

292000279

Unavailable

12

LH Sponson (Black)

292000280

Unavailable

13

Clip Cable

293750011

Unavailable

14

Pad Foam

292000281

Unavailable

15

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

16

Tie-Rap 180 mm

414115200

$0.11

17

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

18

Screen Bailer

292000079

Unavailable

19

Tie Wrap 142 mm

293750002

$1.25

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

21

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

22

Rubber Washer

293830037

$2.68

23

Loctite 271, 10 ml

293800005

$26.99

24

Tie Wrap 94 mm | 4X4

293750001

$1.03

25

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

26

Avdel Rivet 3/16"

293150037

$0.56

27

Hex. Elastic Nut M8

232581600

$1.48

28

Shell (Yellow)

292000223

Unavailable

29

Flat Washer 8 mm, Stainless

234082600

$2.43

30

Bow-Eye (Yellow)

292000222

Unavailable

31

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

32

Silicone Sealant 51388, 300 ml

296000309

$36.99

33

Strap Clip

293850030

$11.12

34

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

35

Instant Gasket

219701421

$51.99

36

Pad Rubber (Fuel Tank)

293830017

Unavailable

37

Black Dart

293730010

$0.99
