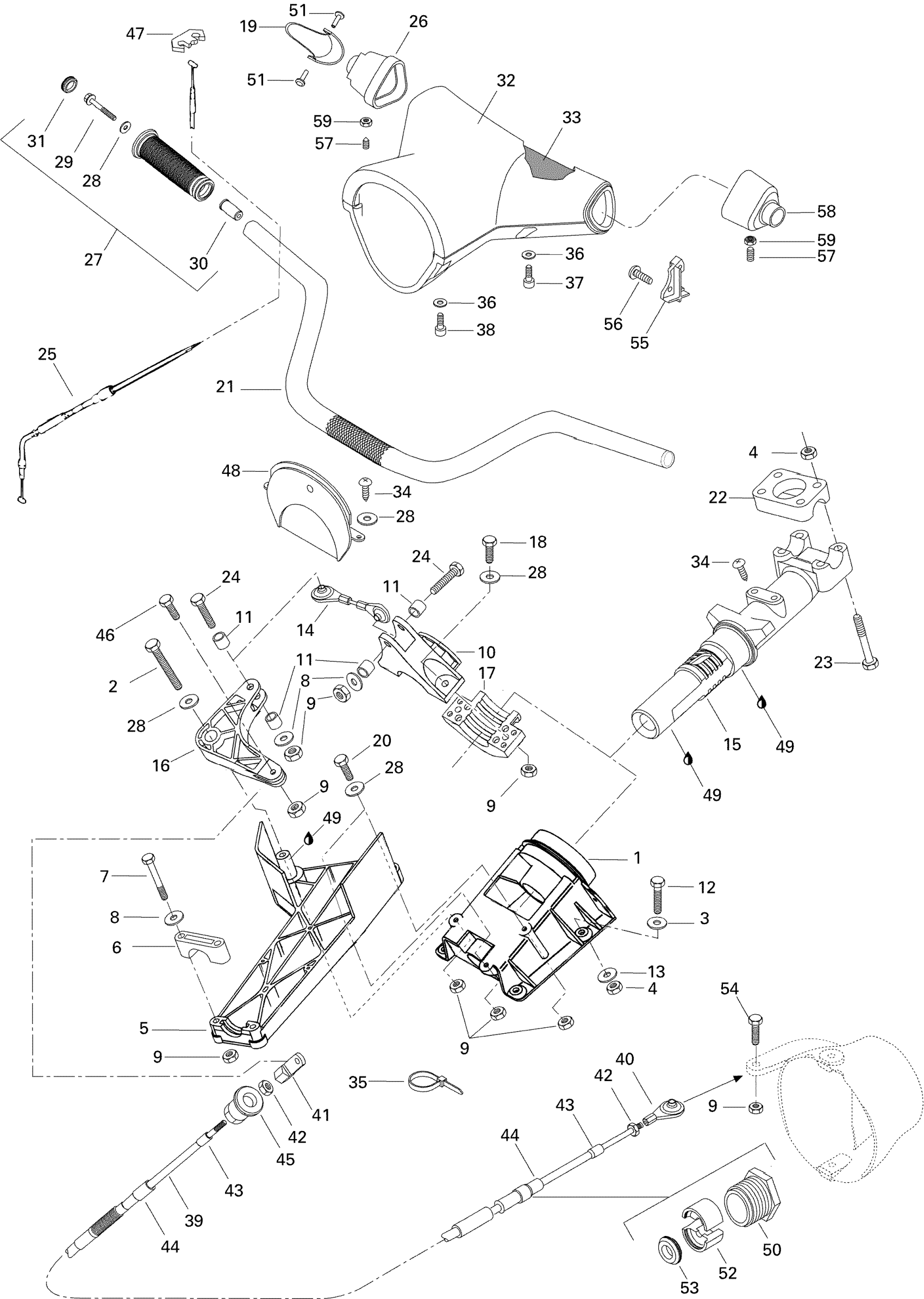

Sea-doo HX, 5881, 1996 07- Steering System Diagram

#

Description
Price

1

Support Steering (Including Item 9)

277000389

Unavailable

2

Hex. Screw M6 x 65

215066560

Unavailable

3

Stainless, Flat Washer 8 mm

234081600

$0.55

4

Hex. Elastic Nut M8

232581600

$1.48

5

Cable Support (Including Item 9)

277000017

Unavailable

6

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

7

Hex. Screw M6 X 50

207065060

$2.22

8

Stainless Flat Washer M6

234061600

$0.33

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

ARM STEEM STEERING (INCLUDING 11) - Call your local BRP dealership

277000021

Unavailable

11

Spacer 5 mm

291000414

Unavailable

12

Hex. Screw M8 X 40

207084060

$2.22

13

Flat Washer 8 mm, Stainless

234082600

$2.43

14

Ball Joint

277000369

Unavailable

15

Steering Stem

277000375400

Unavailable

16

Steering Stem Arm (Including 11)

277000029

Unavailable

17

THRUST ARM - Call your local BRP dealership

277000510

Unavailable

18

Hex. Screw M6 X 25

207162560

$1.47

19

Throttle Handle

277000214

Unavailable

20

Hex. Forming Screw M6 X 20

207162060

$1.29

21

Handle bar

277000305

Unavailable

22

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

23

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

24

Hex. Screw M6 X 35

207063560

$2.22

25

Throttle Cable

277000030

Unavailable

26

Throttle Handle Housing

277000285

Unavailable

27

Handle Grip Kit (Black) This part replaces 295500112.

295500110

$41.49

28

Flat Washer M6, Stainless

234062600

$0.77

29

PLASTITE SCREW HEX. M6.81 X 45 - Call your local BRP dealership | (7448 Up to S/N v000708)

243164560

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Black, Cap

277000203

$9.39

32

STEERING COVER (BLACK) - Call your local BRP dealership

277000500

Unavailable

33

Foam (Top)

277000187

Unavailable

34

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

35

Tie Wrap 142 mm

293750002

$1.25

36

Flat Washer M5, Stainless

234051600

$0.77

37

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

38

Phillips Screw 10-14 X 7/8”

211000037

Unavailable

39

Steering Cable (including 45)

277000051

Unavailable

40

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

41

Rotule

277000174

Unavailable

42

Hex. Nut

212100005

$1.35

43

Boot, Small

277000466

Unavailable

44

Boot, Large

277000473

Unavailable

45

KNOB ADJUSTER - Call your local BRP dealership

277000167

Unavailable

46

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

47

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

48

Plate (Black)

277000501

Unavailable

49

Synthetic Grease, 400 G

293550010

Unavailable

50

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

51

PIN - Call your local BRP dealership

277000381

Unavailable

52

Half Ring

277000055

$9.49

53

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

54

Hex. Screw M6 X 30

207063060

$1.89

55

Retainer Plate

277000219

Unavailable

56

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

57

SCREW-SET SOCKET DIN.914A2 - Call your local BRP dealership

206361260

Unavailable

58

LH HANDLE HOUSING ASS'Y - Call your local BRP dealership | Includes 35 - 38.

277000036

Unavailable

59

Hex. Elastic Stop Nut M6

232561600

$1.15
