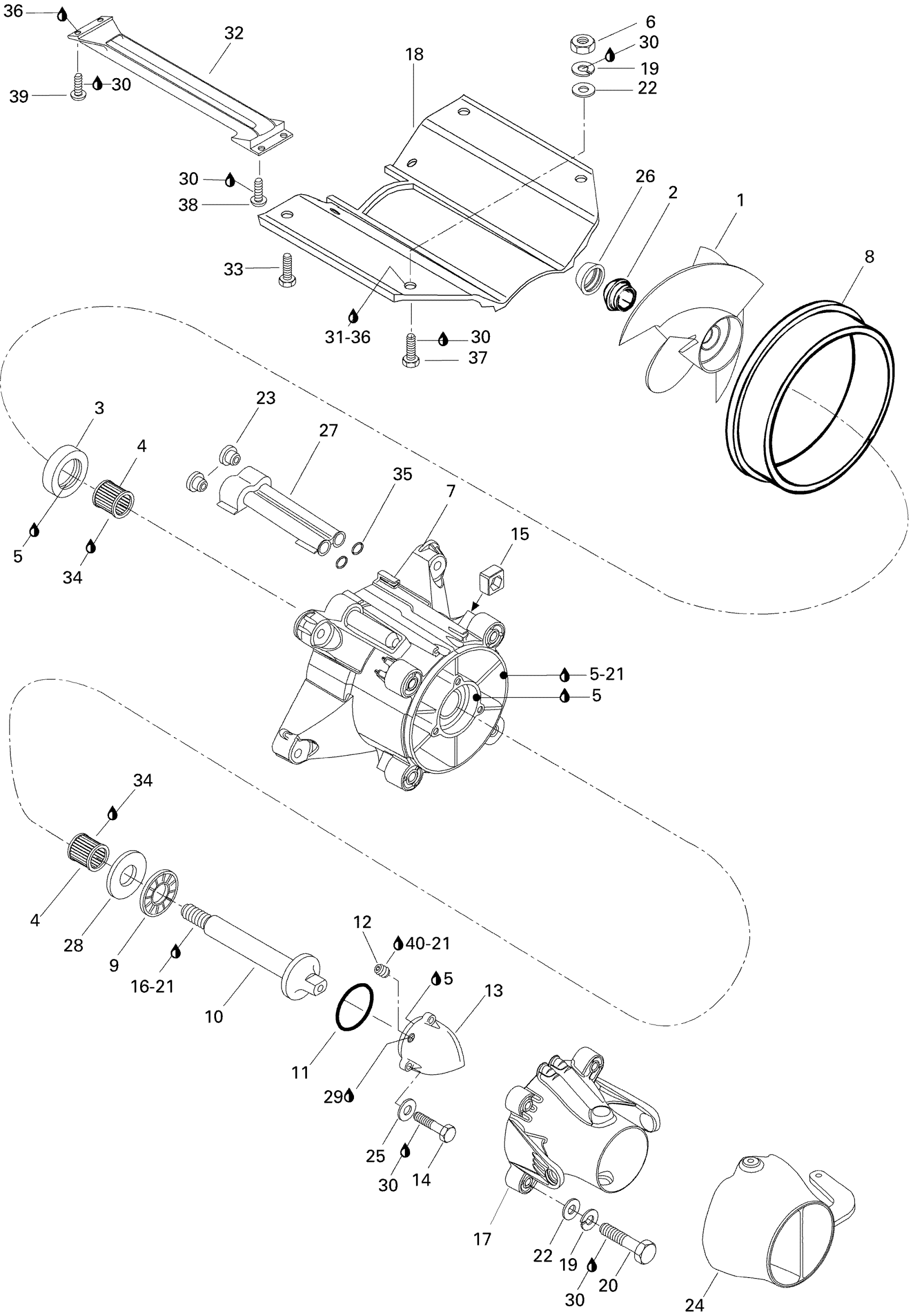

Sea-doo HX, 5881, 1996 Propulsion Diagram

#

Description
Price

1

Impeller Assy - Call your local BRP dealership

271000497

Unavailable

2

Impeller Boot

271000516

$9.59

3

Oil Seal

267000094

$22.49

4

Needle Bearing

293350017

$27.99

5

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

6

Hex. Nut M8

232081600

$1.47

7

IMPELLER HOUSING ASSEMBLY - Call your local BRP dealership | Includes 3,4,8

295500391

Unavailable

8

Wear Ring

271000290

$58.49

9

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

10

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

11

O-Ring

293300011

$8.64

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

13

IMPELLER COVER - Call your local BRP dealership

271000463

Unavailable

14

Hex. Screw M5 X 20

207152060

$1.47

15

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

16

Loctite 271, 10 ml

293800005

$26.99

17

Venturi Ass'y | GSI 5622.

271000446

Unavailable

18

Ride Plate

271000519

Unavailable

19

Lock Washer 8 mm, Stainless

234181601

$0.55

20

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

21

Was 293800041 Loctite Primer 7649

219704458

$39.99

22

Flat Washer 8 mm, Stainless

234082600

$2.43

23

O-RING - Call your local BRP dealership

293300040

Unavailable

24

Steering Nozzle

271000746

$209.99

25

Flat Washer M5, Stainless

234051600

$0.77

26

Impeller Ring

271000517

$9.59

27

WATER OUTLET - Call your local BRP dealership

271000366

Unavailable

28

Thrust Washer

293350003

Unavailable

29

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

30

Loctite 243, 10 ml

293800060

$21.49

31

Instant Gasket

219701421

$51.99

32

Pump Grate

271000315190

Unavailable

33

Hex. Screw M8 X 30

207183060

$1.58

34

Synthetic Grease, 400 G

293550010

Unavailable

35

O-Ring

293300013

$8.18

36

Silicone Sealant 51388, 300 ml

296000309

$36.99

37

Hex. Screw M8 X 35

207083560

$1.47

38

Pan Hd Screw M6 x 12

215861268

Unavailable

39

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208662060

Unavailable

40

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99
