Description

Price

1

Tridon Gear Clamp

293650170

$1.99

2

Oil Tank

275000149

Unavailable

3

Grommet

293720008

$14.75

4

FITTING ELBOW 90 - Call your local BRP dealership

293710051

Unavailable

5

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

6

Check Valve This part replaces 275500087.

275501246

$10.99

7

Retainer Strap

293850097

$11.64

8

Tie Wrap 94 mm | 4X4

293750001

$1.03

9

Oetiker Clamp

293650042

$3.09

10

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

11

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

12

Was 275500008 Hose 12 mm

219704356

$20.49

13

Elbow Fitting 90°

293710055

Unavailable

14

Fuel Tank Cap

513033025

$24.49

15

Tie-Rap 180 mm

414115200

$0.11

16

Angular Tube

420922242

$14.83

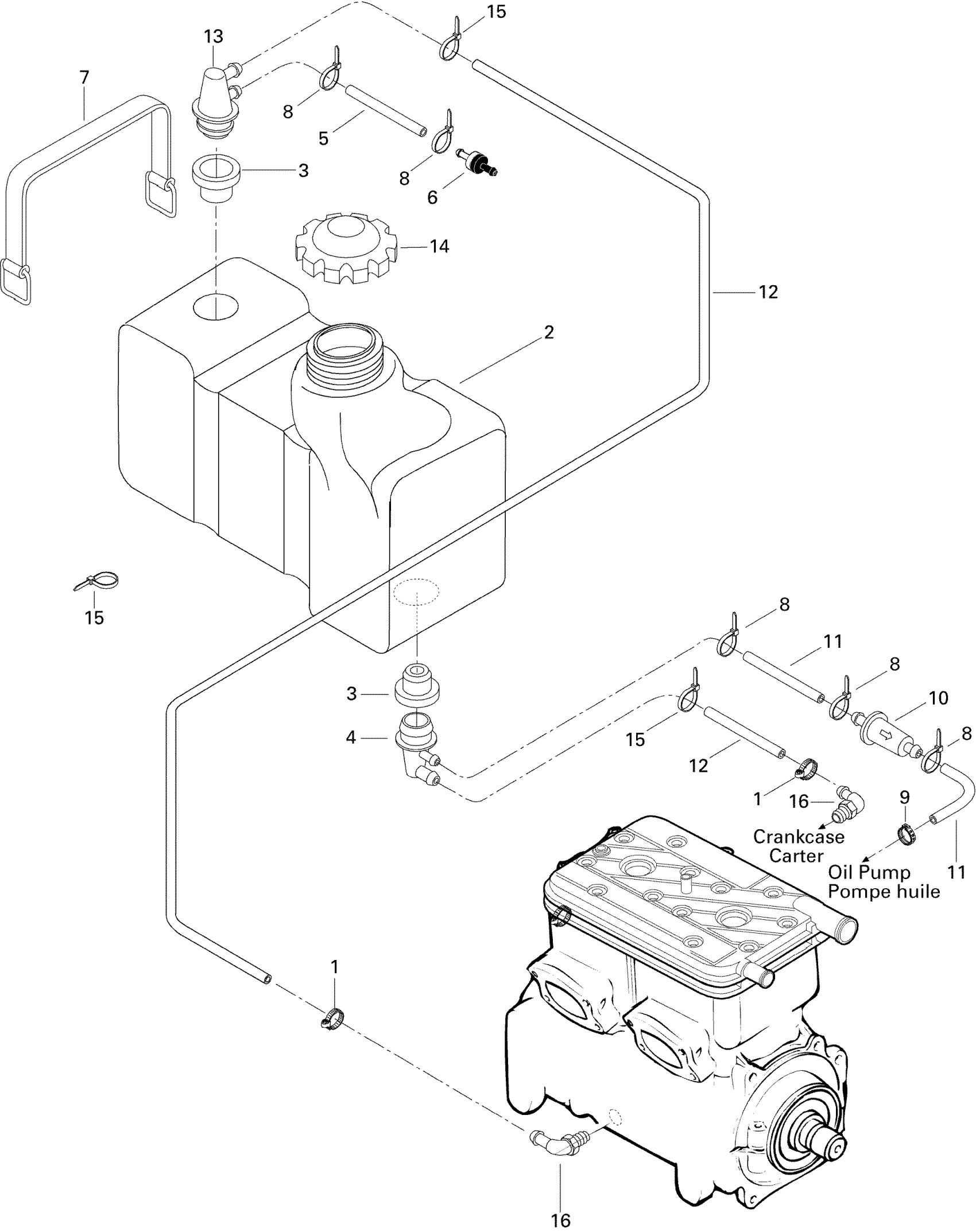

Sea-doo HX, 5881, 1996 02- Oil Injection System Diagram

Tridon Gear Clamp

Oil Tank

Grommet

FITTING ELBOW 90 - Call your local BRP dealership

Was 415110000 Polyurethane Hose 5.2 mm

Check Valve This part replaces 275500087.

Retainer Strap

Tie Wrap 94 mm | 4X4

Oetiker Clamp

OIL FILTER - Call your local BRP dealership

Polyurethane Hose, 8 Mm 3000Mm Long

Was 275500008 Hose 12 mm

Elbow Fitting 90°

Fuel Tank Cap

Tie-Rap 180 mm

Angular Tube
