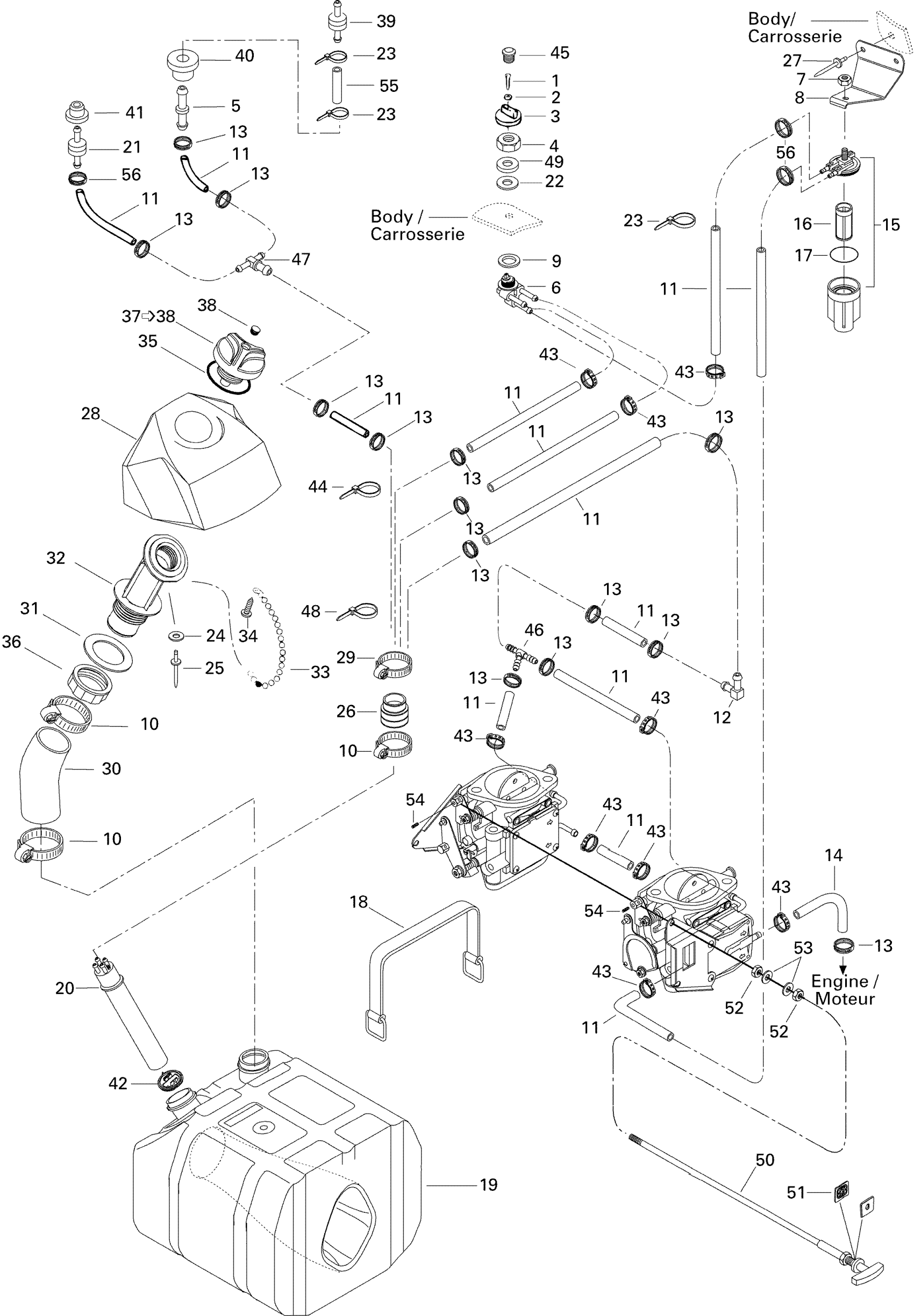

Sea-doo HX, 5881, 1996 02- Fuel System Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Flat Washer 4 mm

234040600

$0.55

3

Fuel Valve Knob

275500242

Unavailable

4

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

5

Male Connector

414518500

$4.23

6

Fuel Valve

275500098

$43.99

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

Fuel Filter Support

275500228

Unavailable

9

GASKET - Call your local BRP dealership

293250004

Unavailable

10

Tridon Clamp

293650023

$13.49

11

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

12

Elbow Fitting 90 Deg

293710050

Unavailable

13

CAILLAU CLIC CLAMP - Call your local BRP dealership

293650063

Unavailable

14

IMPULSE HOSE - Call your local BRP dealership

275500282

Unavailable

15

Fuel Filter Ass'y | Includes 15 - 17.

275500088

$42.49

16

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

17

O-Ring

275500090

$8.79

18

STRAP - Call your local BRP dealership

293850022

Unavailable

19

FUEL TANK - Call your local BRP dealership

275500029

Unavailable

20

BAFFLE PICK-UP - Call your local BRP dealership

275500315

Unavailable

21

Check Valve This part replaces 275500087.

275501246

$10.99

22

Gasket

293250005

Unavailable

23

Tie Wrap 94 mm | 4X4

293750001

$1.03

24

Flat Washer M3, Stainless

234032600

$0.55

25

Pop Rivet 1/8"

390407900

$1.49

26

Tube Adapter

275500111

Unavailable

27

Avdel Rivet 3/16"

293150037

$0.56

28

Tower Fuel

275500303

Unavailable

29

Tridon Clamp

293650035

$7.29

30

Filler Neck Hose

275500044

Unavailable

31

Gasket

293250029

$14.82

32

FUEL FILLER NECK - Call your local BRP dealership

275500229

Unavailable

33

Chain

275500230

Unavailable

34

Screw K40 X 10

241140060

$1.48

35

Gasket

293250017

Unavailable

36

Filler Neck Nut, Fuel

211100012

$14.22

37

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

38

Black, Snap Cap

293000034

$9.39

39

Check Valve This part replaces 275500087.

275501246

$10.99

40

Grommet

709200285

$9.69

41

Grommet

293720029

$1.59

42

Fuel Filter

275500249

Unavailable

43

Oetiker Clamp

293650042

$3.09

44

Tie Wrap 142 mm

293750002

$1.25

45

Bumper Plug, Black

291000339

$2.99

46

Y-Fitting

293710059

$9.69

47

T-Fitting | Europe

293710024

$14.75

48

Tie-Rap 180 mm

414115200

$0.11

49

WASHER - Call your local BRP dealership

293050003

Unavailable

50

Choke Cable | Includes 50 to 51

277000463

Unavailable

51

Choke Plate

291000457

Unavailable

52

Hex. Nut M6

232160600

$1.15

53

Stainless Flat Washer M6

234061600

$0.33

54

Allen Screw M4 x 6

210100014

Unavailable

55

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

56

Clamp Caillau

293650062

Unavailable
