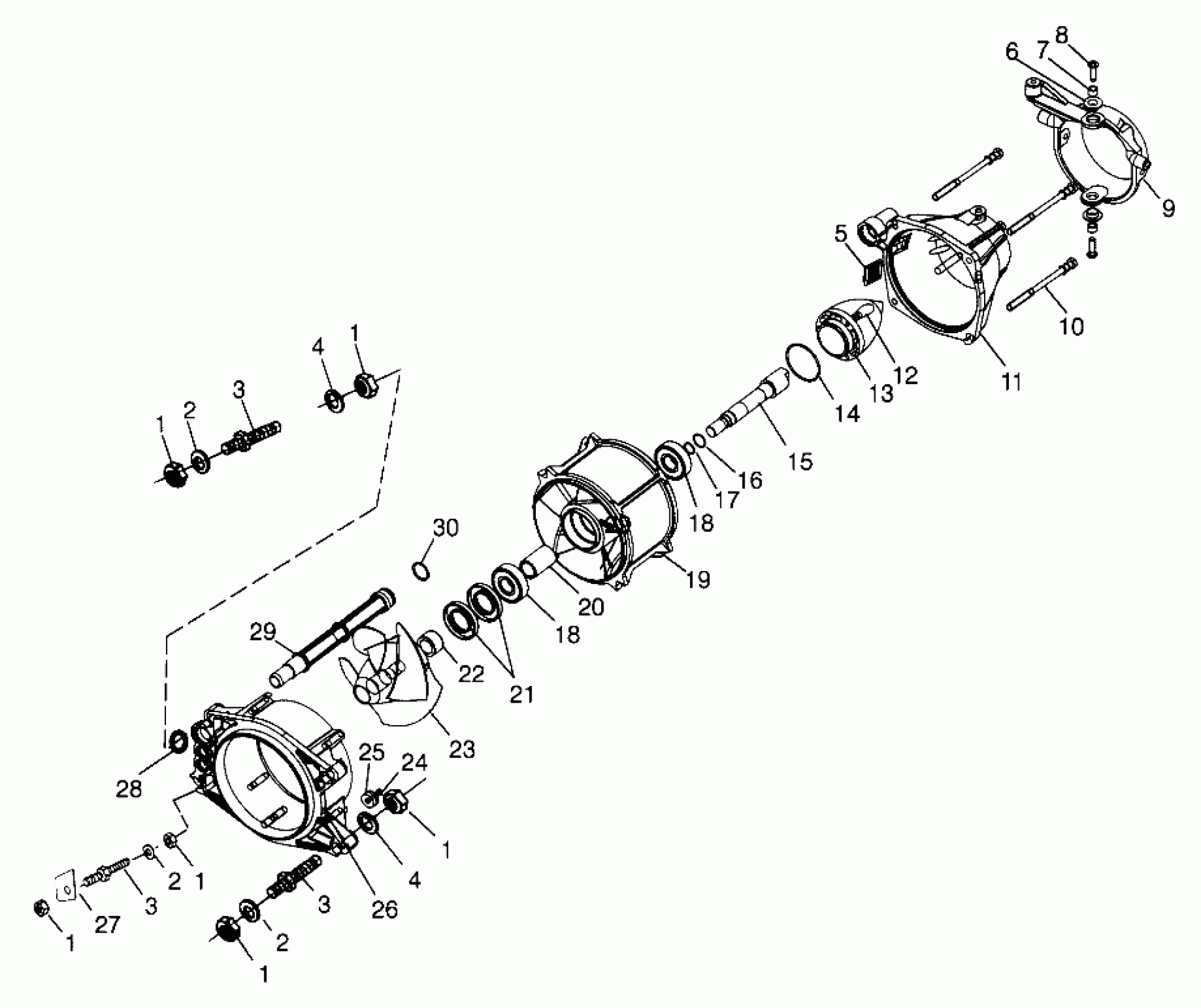

Polaris HURRICANE - B974473 PROPULSION HURRICANE B974473 and Intl. HURRICANE I974473 (4941044104B004) Diagram

#

Description
Price

1

NUT,HEX,S.S.(10)

7542455

Unavailable

1

NUT,HEX,S.S.(10)

7542455

Unavailable

1

NUT,HEX,S.S.(10)

7542455

Unavailable

1

NUT,HEX,S.S.(10)

7542455

Unavailable

1

NUT,HEX,S.S.(10)

7542455

Unavailable

1

NUT,HEX,S.S.(10)

7542455

Unavailable

2

Washer

7555966

$2.62

2

Washer

7555966

$2.62

2

Washer

7555966

$2.62

3

STUD,MTG,PUMP

5020877

$4.37

3

STUD,MTG,PUMP

5020877

$4.37

3

STUD,MTG,PUMP

5020877

$4.37

4

WASHER, FLAT(10)

7555841

Unavailable

4

WASHER, FLAT(10)

7555841

Unavailable

5

SCREEN,ENG.INLET

5431523

Unavailable

6

BRG,STRG.NOZZLE,(10)

5431518

Unavailable

7

Collar

5130938

Unavailable

8

BOLT, S.S.(10)

7515366

Unavailable

9

NOZZLE,STRG,EXT.

5131363

Unavailable

10

BOLT

7515377

$11.90

11

NOZZLE,STAT,NO WEDGE

5131570

Unavailable

12

SCREW(10)

7512064

Unavailable

13

Cone, Pump

5431519

Unavailable

14

O-RING(10)

5410819

$0.79

15

SHAFT, STUB Substituted by 5132674

5020697

$47.62

16

O-RING(10)

5410818

$0.79

17

O-RING,(10)

5410817

Unavailable

18

Bearing

3514008

Unavailable

18

Bearing

3514008

Unavailable

19

STATOR,PUMP,MACH Substituted by 5130983 (Mach.)

5131708

Unavailable

20

Spacer

5010294

Unavailable

21

SEAL,BRG,STATOR

3610043

Unavailable

22

Spacer, Impeller

5010295

Unavailable

23

IMPELLER,12-17DEG,SWIRL,3BLADE

5131457

$374.99

24

SCREW(10)

7522019

$0.95

25

ANODE-ZINC Substituted by 2200745

5630598

Unavailable

26

HSG,PUMP,(MACH) Substituted by 2873081

5131310

Unavailable

27

BRKT,STRG.CABLE

5241741

Unavailable

28

SEAL,WATER PIPE

5411107

Unavailable

29

PIPE,WATER,ENGINE

5431655

Unavailable

30

O RING,(10)

5410735

$0.79
