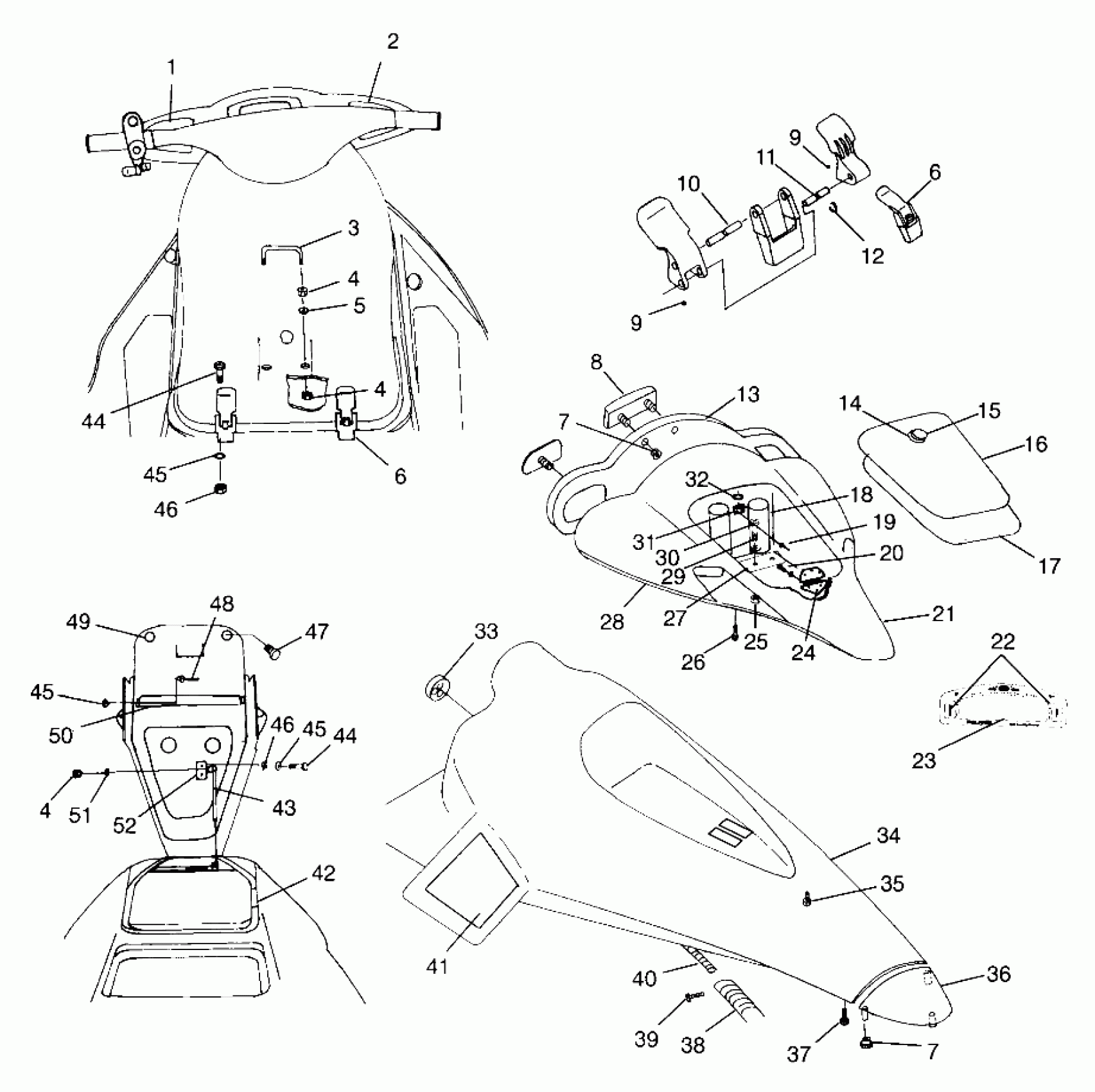

Polaris HURRICANE - B974473 FRONT STORAGE COMPARTMENT HURRICANE B974473 and Intl. HURRICANE I974473 (4941044104A007) Diagram

#

Description
Price

1

MIRROR ASM,PORT

2652154

Unavailable

2

MIRROR ASM,STBD.

2652155

Unavailable

3

U-BOLT,SEAT RETAINER

5224750

Unavailable

4

NUT

7542334

$1.49

4

NUT

7542334

$1.49

4

NUT

7542334

$1.49

5

WASHER,RUBBER

7555950

Unavailable

6

LATCH ASM,ENG.COVER

1060124

Unavailable

6

LATCH ASM,ENG.COVER

1060124

Unavailable

7

NUT,LOCK,NYLON,(10)

7542142

Unavailable

7

NUT,LOCK,NYLON,(10)

7542142

Unavailable

8

GAUGE,MULTI-FUNCTION

3280224

Unavailable

9

SCREW

7522025

Unavailable

9

SCREW

7522025

Unavailable

10

PIN Substituted by 1060124

5131278

Unavailable

11

PIN,.25 DIA

5020869

Unavailable

12

RING,RETAINING

7710456

Unavailable

13

POD,MIRROR,BEZEL,P.RED

5432199-136

Unavailable

14

GASKET,STOR.LATCH

5411035

Unavailable

15

LATCH,STOR.COMPART.

5241309

Unavailable

16

COVER,STOR.POD,P.RED

5432195-136

Unavailable

17

SEAL,POD STORAGE

5411034

Unavailable

18

DUCT,AIR-IN,FR.

5432609

Unavailable

19

RIVET,(50)

7621336

$1.59

20

SCREW(10)

7511873

Unavailable

21

POD,UP.MIRROR,P.RED

5432197-136

Unavailable

22

KIT,MFD.BUTTON Substituted by 2201263

2200826

Unavailable

23

BEZEL,MFD,W/OVERLAY

3280266

Unavailable

24

HINGE,POD STORAGE

5432196

Unavailable

25

NUT,NYLOK,S.S.(10)

7542133

Unavailable

26

SCREW, SS.

7517241

Unavailable

27

BRACE,POD

5241974

Unavailable

28

POD,LOW.MIRROR,P.RED

5432198-136

Unavailable

29

WASHER, FLAT, S.S.(10)

7555839

Unavailable

30

SCREW

7517233

Unavailable

31

PLATE,LATCH,(POD)

5241310

Unavailable

32

WASHER, FLAT, S.S.(10)

7555840

$3.35

33

GROMMET,CABLE,3-HOLE

5411028

Unavailable

34

COVER,ENG,SCR.YEL,SLR

5432182-216

Unavailable

35

SCREW

7517249

Unavailable

36

COVER,F.HINGE,SCR.YEL. Substituted by 5432208

5432208-216

Unavailable

37

BOLT, S.S.(10)

7515155

Unavailable

38

CONDUIT,FLEX(.75"ID) (96 cm)

5521398-96

$5.75

39

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

40

HARNESS,WIRE(GAUGE)

2460551

Unavailable

41

PAD,LH,CVR,WLD.GRP. Substituted by 5830104-216

5830104-237

Unavailable

41

PAD,RH,CVR,WLD.GRP. Substituted by 5830105-216

5830105-237

Unavailable

42

DECAL,RECOMMENDED OIL

7074959

Unavailable

43

SPRING,GAS

7041472

Unavailable

44

BOLT, SS.(10)

7512045

$4.99

44

BOLT, SS.(10)

7512045

$4.99

45

WASHER, FLAT, S.S.(10)

7555837

Unavailable

45

WASHER, FLAT, S.S.(10)

7555837

Unavailable

45

WASHER, FLAT, S.S.(10)

7555837

Unavailable

46

NUT, HEX, S.S.(10)

7541931

$4.79

46

NUT, HEX, S.S.(10)

7541931

$4.79

47

SCREW(10)

7511870

Unavailable

48

RIVET(50)

7621452

$1.49

49

BUMPER,ENG.COVER Substituted by 5411101

5411332

Unavailable

50

BRKT,ANCHOR CABLE

5241417

Unavailable

51

WASHER, LOCK, S.S.(10)

7552610

Unavailable

52

BRKT,MT,GAS SPRING

5241909

Unavailable
