ELECTRICAL BOX HURRICANE B974473 and Intl. HURRICANE I974473 (4941044104B010)

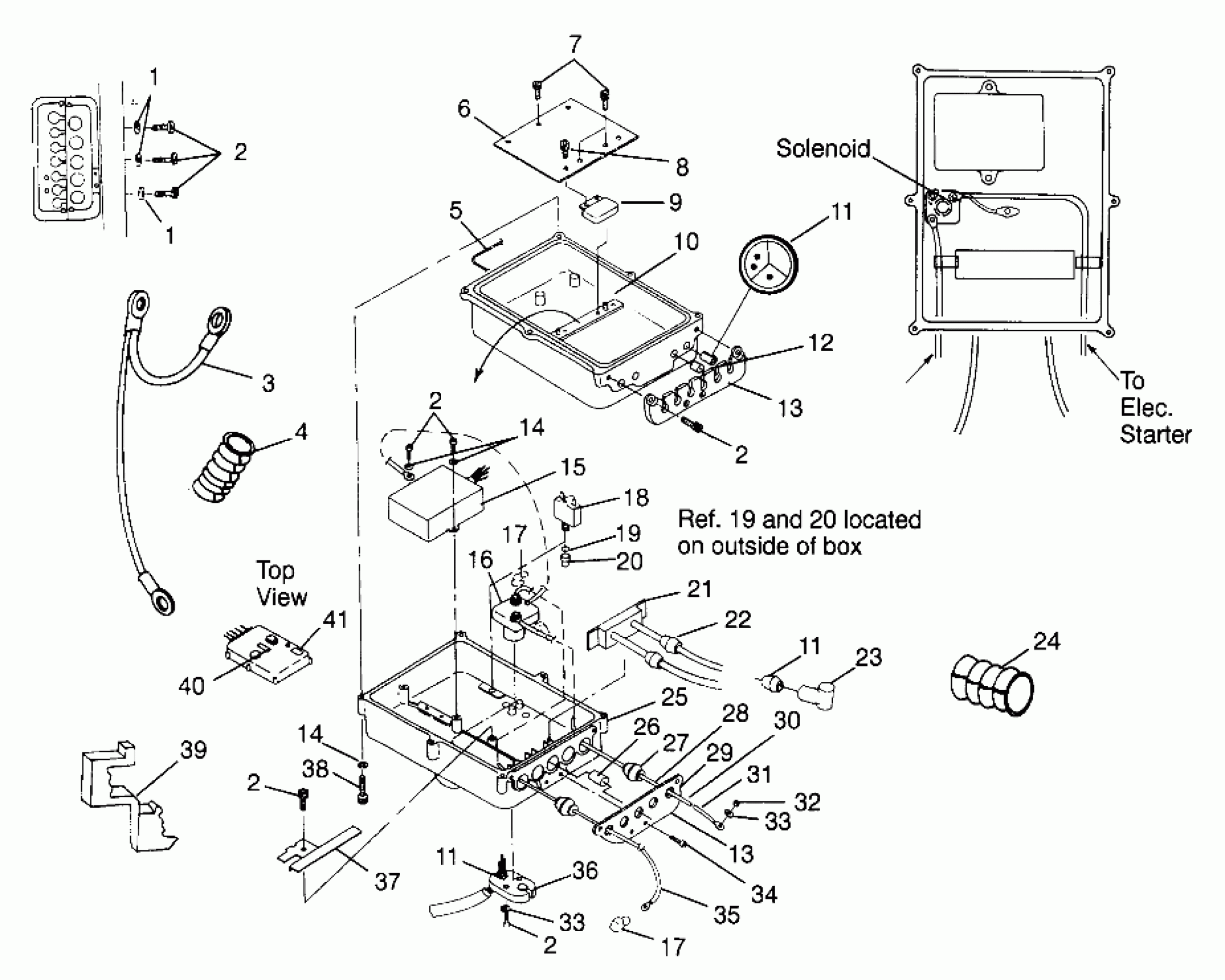

Polaris HURRICANE - B974473 ELECTRICAL BOX HURRICANE B974473 and Intl. HURRICANE I974473 (4941044104B010) Diagram
#
1
WASHER, FLAT
7555952
Unavailable
1
WASHER, FLAT
7555952
Unavailable
2
BOLT, S.S.(10)
7515118
Unavailable
2
BOLT, S.S.(10)
7515118
Unavailable
2
BOLT, S.S.(10)
7515118
Unavailable
2
BOLT, S.S.(10)
7515118
Unavailable
2
BOLT, S.S.(10)
7515118
Unavailable
3
HARNESS,GND-CONTROL BOX
2460581
Unavailable
4
CONDUIT,CONVOL. Substituted by 4010051-15
4010051-05
Unavailable
5
O-RING,(ELEC.BOX)
5410912
Unavailable
6
TERM.BOARD ASM,MFD
2434014
Unavailable
7
BOLT, S.S.(10)
7512042
$2.62
8
SCREW,S.S.(10)
7512072
Unavailable
9
REG./RECT/CUTOFF,LR23 Substituted by 4060192
4060171
Unavailable
10
BOX,BOTTOM,ELEC.
5131256
Unavailable
11
O-RING,(10)
5410817
Unavailable
11
GROMMET,SECTION,NO HOLE
5410850
Unavailable
11
O-RING,(10)
5410817
Unavailable
11
GROMMET,SECTION,NO HOLE
5410850
Unavailable
11
O-RING,(10)
5410817
Unavailable
11
GROMMET,SECTION,NO HOLE
5410850
Unavailable
12
GROMMET, WIRE
5410775
Unavailable
13
PLATE,6-HOLE,CAST
5630497
Unavailable
13
PLATE,6-HOLE,CAST
5630497
Unavailable
14
WASHER(10)
7555836
$3.99
14
WASHER(10)
7555836
$3.99
15
Controller, Ignition (See Pg. C6, Ref. 12)
-------
Unavailable
16
SWITCH, MAGNETIC
3240204
Unavailable
17
INSULATOR-CABLE
5410346
$6.39
17
INSULATOR-CABLE
5410346
$6.39
18
CKT.BREAKER,15A.(WATER.)
2434011
Unavailable
19
O-RING
5410725
Unavailable
20
BOOT,THREADED,RED
7080461
Unavailable
21
Coil, Ignition Twin (See Pg. C6, Ref. 13)
-------
Unavailable
22
GROMMET, COIL
5410677
Unavailable
23
CAP,SPARK PLUG
4020159
Unavailable
24
CONDUIT,FLEX,1.250ID Substituted by 5521287-132
5521287-63
Unavailable
25
TOP, ELEC.BOX
5131174
Unavailable
26
GROMMET,(.910 DIA.)
5411025
Unavailable
27
GROMMET, 16 GA.(10)
5410678
Unavailable
28
CABLE,RED,SOL./START.
4010081
Unavailable
29
PLATE, 5-HOLE
5630416
Unavailable
30
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
31
NUT, 6 MM.,S.S.(10)
7546705
$4.79
32
WASHER, LOCK(10)
7552613
Unavailable
33
BOLT(10)
7516809
Unavailable
33
BOLT(10)
7516809
Unavailable
34
CABLE,BATT.28",RED
4010119
Unavailable
35
PLATE, 2-HOLE
5630415
Unavailable
36
BRKT,COIL RETAINER
5241182
Unavailable
37
BOLT(10)
7515119
Unavailable
38
T-CLIP(10)
7080471
$3.59
39
DECAL,WARN,HI.VOLT.
7073713
Unavailable
40
DECAL,ELECT.BOX RESET
7073734
Unavailable
