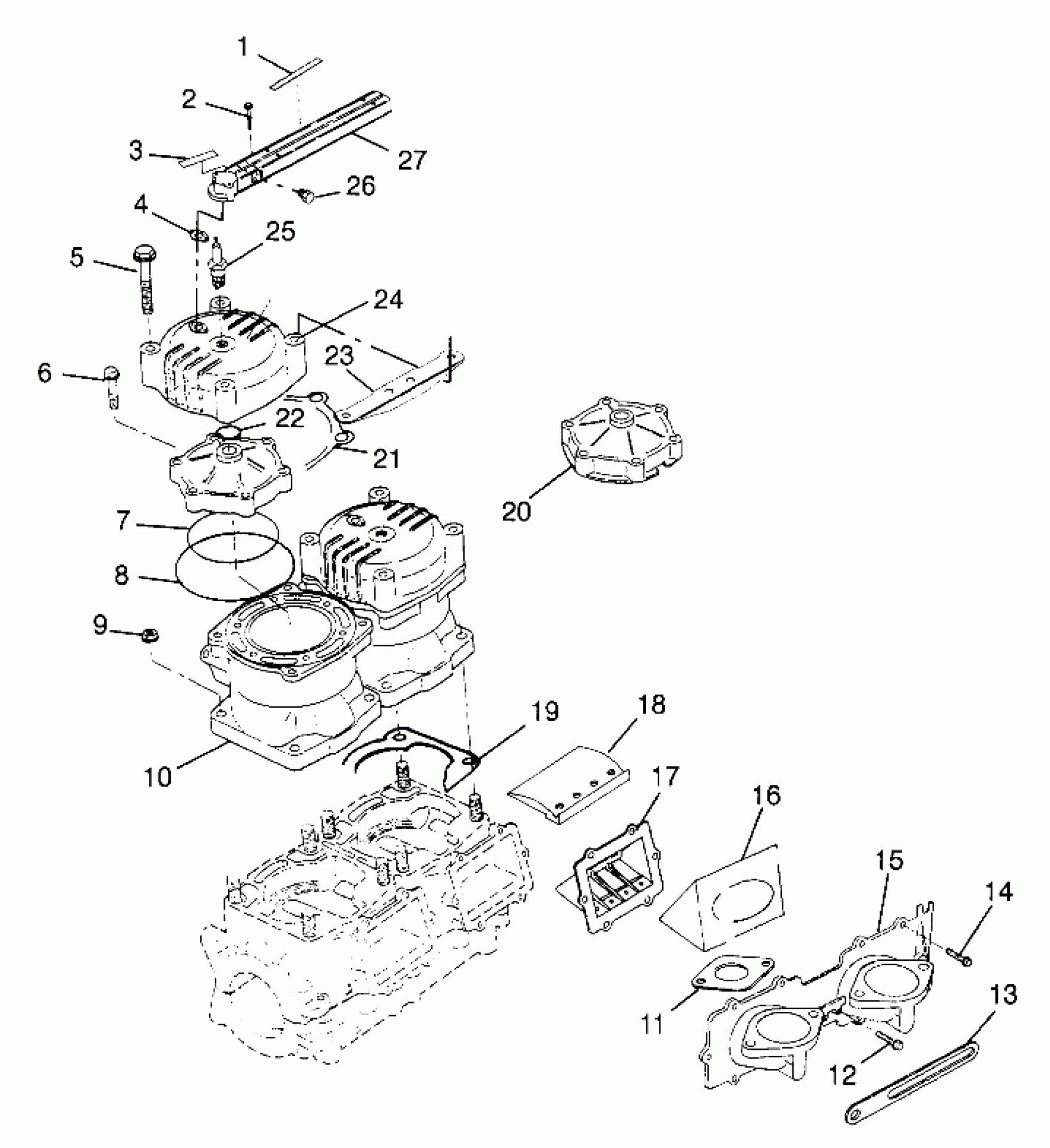

Polaris HURRICANE - B974473 CYLINDER & MANIFOLD HURRICANE B974473 and Intl. HURRICANE I974473 (4941044104C001) Diagram

KIT,GASKET,TOP END (700 Twin) (Incl. 7, 8, 19, 22)

2200673

Unavailable

KIT,GASKET SET,COMP. (700 Twin) (Incl. 4, 7, 8, 19, 22)

2200680

Unavailable

Decal, Warning

7075383

Unavailable

BOLT(10)

7516806

Unavailable

DECAL,SPARKPLUG REC.

7077026

$2.95

GASKET,WATER MANIF.

5830061

Unavailable

BOLT(10)

7516722

Unavailable

SCREW,(10) Substituted by 7517352

7517251

Unavailable

O-RING

5410932

$20.22

O-Ring

5410931

Unavailable

NUT(10)

7547013

$1.99

CYLINDER,81MM,PWC Substituted by 3021018

3021009

Unavailable

GASKET,CARB.

5830043

Unavailable

BOLT(10)

7516814

Unavailable

RETAINER,SS.

7080654

$18.32

BOLT(10)

7516807

Unavailable

MANIFOLD,INTAKE

5630529

Unavailable

STUFFER,REED BLOCK Substituted by 5433151

5432104

Unavailable

REEDVALVE ASM. Substituted by 1201689

1201592

Unavailable

STUFFER

5411251

Unavailable

GASKET,CYL.BASE

5830123

Unavailable

HEAD,CYL,81MM,PWC

3022050

Unavailable

RING,HEAD,81MM-SS

5241944

Unavailable

O-RING(10)

5410917

$1.49

BRKT,HEAD,TWIN,FIRE RED

5241768-093

Unavailable

COVER,HEAD,RED,BIG BORE

5630527-093

Unavailable

Spark Plug, NGK BPR 8ES (See Pg. A17, Ref. 19)

-------

Unavailable

PLUG,PIPE(10)

7051527

Unavailable

MANIFOLD,OUTLET,FIRE RED Substituted by 5630826-093

5630622-093

Unavailable
