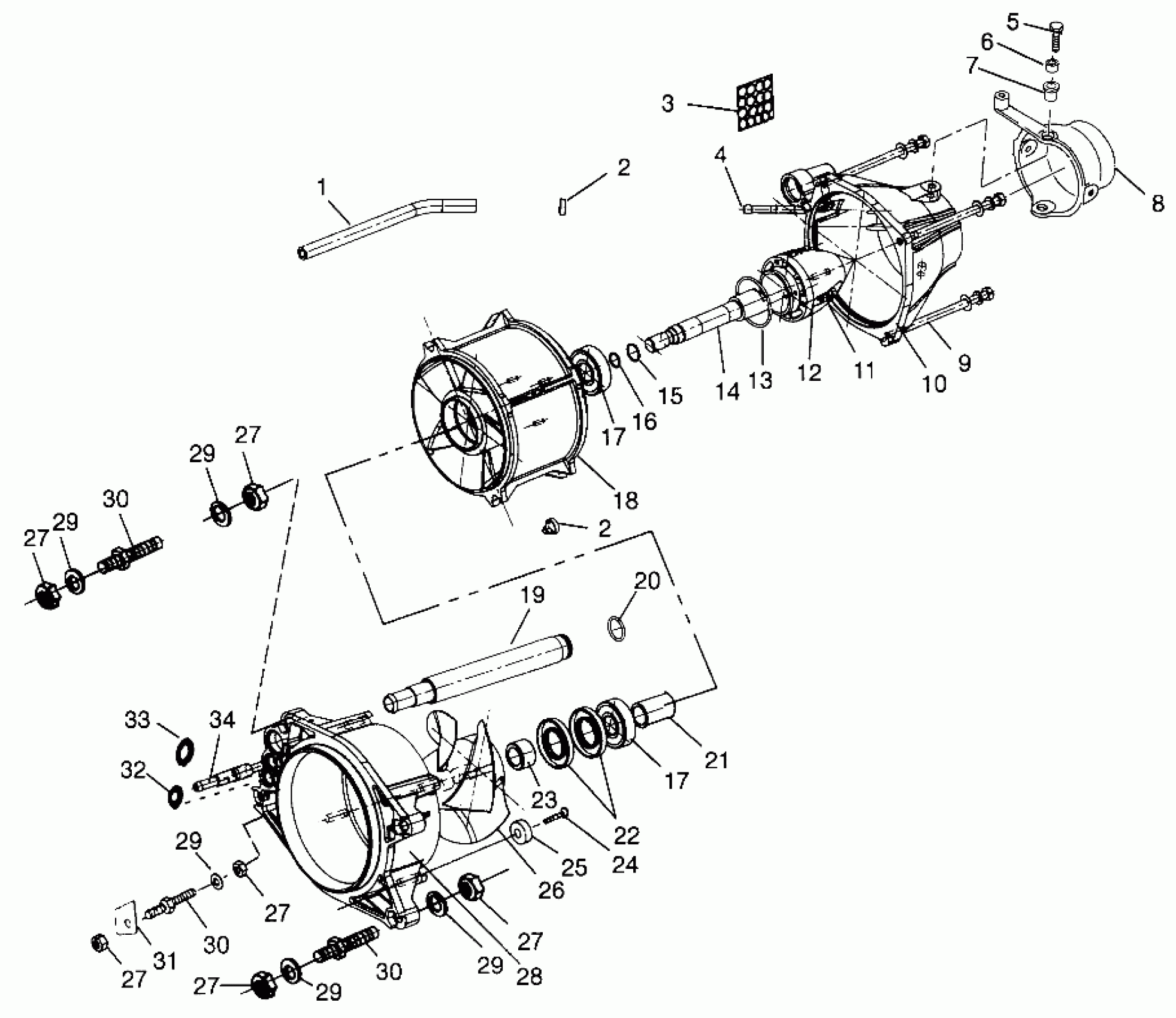

Polaris HURRICANE - B964466 PROPULSION HURRICANE B964466 and Intl. HURRICANE I964466 (4935733573B003) Diagram

#

Description
Price

1

HOSE,WATER Substituted by 8450054-100

8450054-23

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

SCREEN,ENG.INLET

5431523

Unavailable

4

TUBE,SIPHON,BILGE

5010293

$29.52

5

BOLT, S.S.(10)

7515366

Unavailable

6

Collar

5130938

Unavailable

7

BRG,STRG.NOZZLE,(10)

5431518

Unavailable

8

NOZZLE,STRG,EXT.

5131363

Unavailable

9

BOLT

7515377

$11.90

10

NOZZLE ASM,1 TUBE,STRAIGHT (Incl. 4)

1350022

$102.38

11

SCREW(10)

7512064

Unavailable

12

Cone, Pump

5431519

Unavailable

13

O-RING(10)

5410819

$0.79

14

SHAFT, STUB Substituted by 5132674

5020697

$47.62

15

O-RING(10)

5410818

$0.79

16

O-RING,(10)

5410817

Unavailable

17

Bearing

3514008

Unavailable

17

Bearing

3514008

Unavailable

18

STATOR,PUMP (Mach.)

5130983

Unavailable

19

PIPE,WATER,ENGINE

5431655

Unavailable

20

O RING,(10)

5410735

$0.79

21

Spacer

5010294

Unavailable

22

SEAL,BRG,STATOR

3610043

Unavailable

23

Spacer, Impeller

5010295

Unavailable

24

SCREW(10)

7522019

$0.95

25

ANODE-ZINC Substituted by 2200745

5630598

Unavailable

26

IMPELLER,12-17DEG,SWIRL,3BLADE

5131457

$374.99

27

NUT,HEX,S.S.(10)

7542455

Unavailable

27

NUT,HEX,S.S.(10)

7542455

Unavailable

27

NUT,HEX,S.S.(10)

7542455

Unavailable

27

NUT,HEX,S.S.(10)

7542455

Unavailable

27

NUT,HEX,S.S.(10)

7542455

Unavailable

27

NUT,HEX,S.S.(10)

7542455

Unavailable

28

HSG,PUMP,(MACH) Substituted by 2873081 (Mach.)

5131310

Unavailable

29

Washer

7555966

$2.62

29

Washer

7555966

$2.62

29

Washer

7555966

$2.62

29

Washer

7555966

$2.62

29

Washer

7555966

$2.62

30

STUD,MTG,PUMP

5020877

$4.37

30

STUD,MTG,PUMP

5020877

$4.37

30

STUD,MTG,PUMP

5020877

$4.37

31

BRKT,STRG.CABLE

5241741

Unavailable

32

SEAL,SIPHON TUBE

5411016

Unavailable

33

SEAL,WATER PIPE

5411107

Unavailable

34

PIPE,WATER BILGE (Flanged), SS

5020835

$49.59
