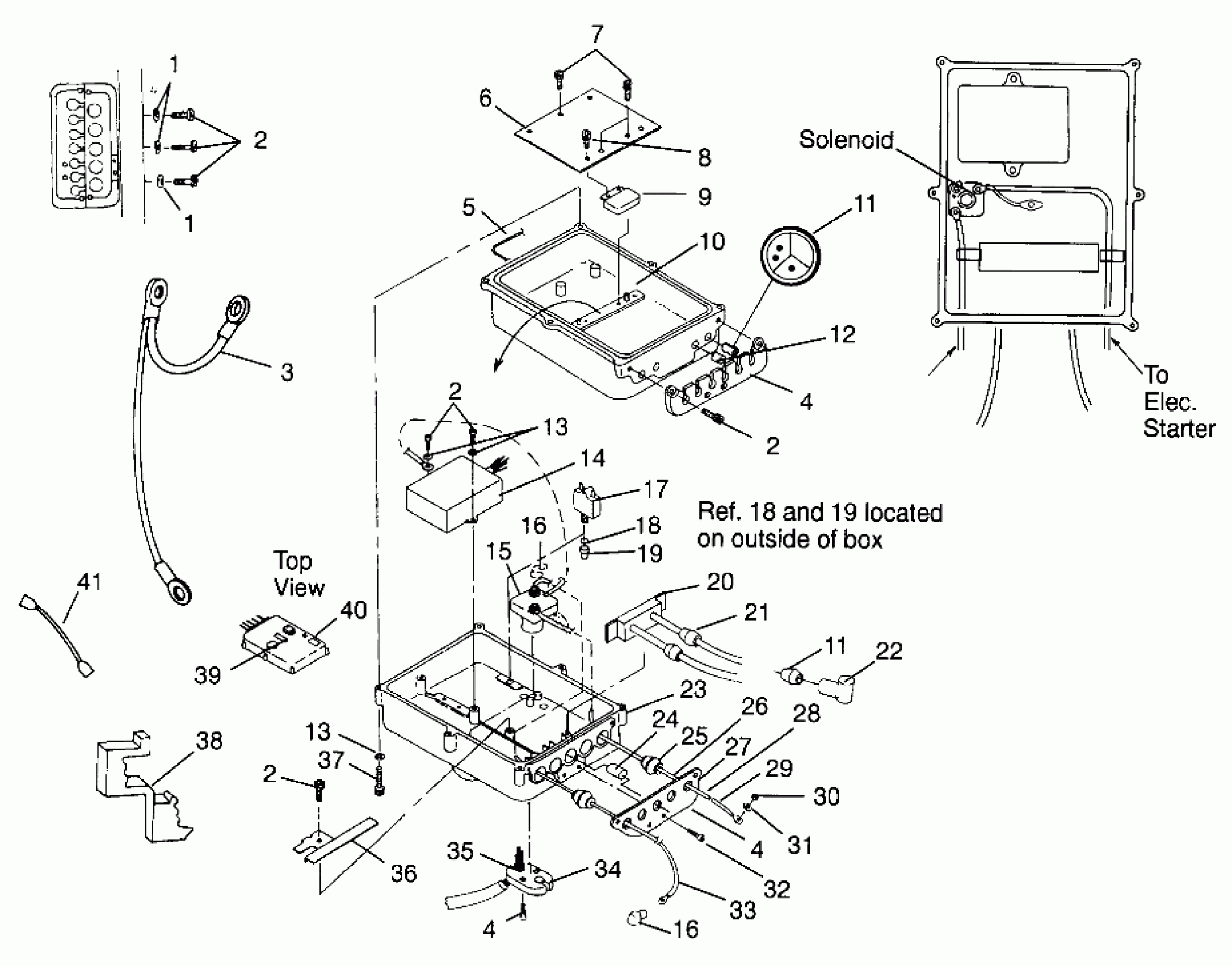

Polaris HURRICANE - B964466 ELECTRICAL BOX HURRICANE B964466 and Intl. HURRICANE I964466 (4935733573B010) Diagram

#

Description
Price

1

WASHER, FLAT

7555952

Unavailable

1

WASHER, FLAT

7555952

Unavailable

2

BOLT, S.S.(10)

7515118

Unavailable

2

BOLT, S.S.(10)

7515118

Unavailable

2

BOLT, S.S.(10)

7515118

Unavailable

2

BOLT, S.S.(10)

7515118

Unavailable

3

HARNESS,GND-CONTROL BOX

2460581

Unavailable

4

PLATE,6-HOLE,CAST

5630497

Unavailable

4

PLATE,6-HOLE,CAST

5630497

Unavailable

4

PLATE,6-HOLE,CAST

5630497

Unavailable

5

O-RING,(ELEC.BOX)

5410912

Unavailable

6

BOARD,TERMINAL

4040068

$19.68

7

BOLT, S.S.(10)

7512042

Unavailable

8

SCREW,S.S.(10)

7512072

$0.40

9

REGULATOR/RECT/CUT-OFF Substituted by 4060171

4060115

Unavailable

10

BOX,BOTTOM,ELEC.

5131256

Unavailable

11

O-RING,(10)

5410817

Unavailable

11

GROMMET,SECTION,NO HOLE

5410850

$2.14

11

O-RING,(10)

5410817

Unavailable

11

GROMMET,SECTION,NO HOLE

5410850

$2.14

12

GROMMET, WIRE

5410775

Unavailable

13

WASHER(10)

7555836

$3.99

13

WASHER(10)

7555836

$3.99

14

CONTROLLER,IGNITION

4060148

Unavailable

15

SWITCH, MAGNETIC

3240204

Unavailable

16

INSULATOR-CABLE

5410346

$7.73

16

INSULATOR-CABLE

5410346

$7.73

17

CKT.BREAKER,15A.(WATER.)

2434011

$20.48

18

O-RING

5410725

$1.03

19

BOOT,THREADED,RED

7080461

$13.99

20

COIL,IGNITION,TWIN

4060121

Unavailable

21

GROMMET, COIL

5410677

Unavailable

22

CAP,SPARK PLUG

4020159

Unavailable

23

TOP, ELEC.BOX

5131174

$73.81

24

GROMMET,(.910 DIA.)

5411025

Unavailable

25

GROMMET, 16 GA.(10)

5410678

$2.14

26

CABLE,RED,SOL./START.

4010081

Unavailable

27

PLATE, 5-HOLE

5630416

Unavailable

28

CONDUIT,CONVOL(30 CM)

4010051-30

Unavailable

29

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

31

WASHER, LOCK(10)

7552613

Unavailable

31

WASHER, LOCK(10)

7552613

Unavailable

32

BOLT(10)

7516809

Unavailable

33

CABLE,BATT.28",RED

4010119

$22.06

34

PLATE, 2-HOLE

5630415

$12.30

35

GROMMET,SECTION,2-HOLE

5410852

Unavailable

36

BRKT,COIL RETAINER

5241182

$19.68

37

BOLT(10)

7515119

Unavailable

38

T-CLIP(10)

7080471

$3.57

39

DECAL,WARN,HI.VOLT.

7073713

Unavailable

40

DECAL,ELECT.BOX RESET

7073734

Unavailable

41

WIRE,JUMPER

4010117

Unavailable
