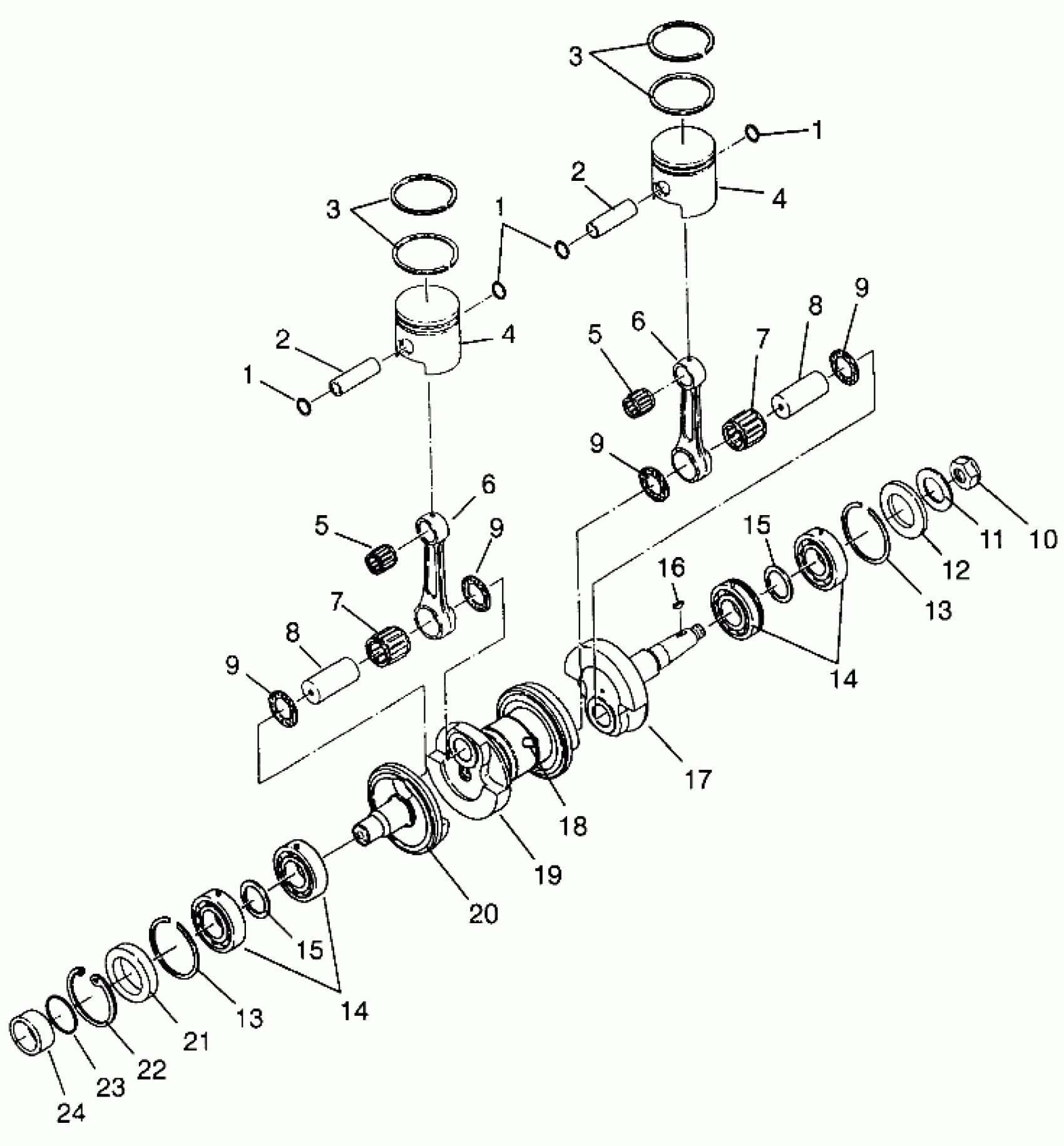

Polaris HURRICANE - B964466 CRANKSHAFT & PISTON HURRICANE B964466 and Intl. HURRICANE I964466 (4935733573C002) Diagram

#

Description
Price

-

CRANKSHAFT ASM,2 CYL. Substituted by 2201243 (Incl. 6-9, 17-20)

1201558

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

2

PIN,PISTON

3022953

Unavailable

2

PIN,PISTON

3022953

Unavailable

3

KIT,PISTONRINGS,.25 O/S,PWC

2200903

Unavailable

3

KIT,PISTONRINGS,.50 O/S,PWC

2200904

Unavailable

3

KIT,PISTONRINGS,STD,PWC (2 Rings)

2200902

Unavailable

3

KIT,PISTONRINGS,.25 O/S,PWC

2200903

Unavailable

3

KIT,PISTONRINGS,.50 O/S,PWC

2200904

Unavailable

3

KIT,PISTONRINGS,STD,PWC (2 Rings)

2200902

Unavailable

4

KIT,PISTON ASM,.25 O/S,PWC Substituted by 2200920 (Incl. 1-3)

2200884

Unavailable

4

KIT,PISTON ASM,.50 O/S,PWC Substituted by 2200919 (Incl. 1-3)

2200885

Unavailable

4

KIT,PISTON ASM,STD,PWC Substituted by 2200921 (Incl. 1-3)

2200883

Unavailable

4

KIT,PISTON ASM,.25 O/S,PWC Substituted by 2200920 (Incl. 1-3)

2200884

Unavailable

4

KIT,PISTON ASM,.50 O/S,PWC Substituted by 2200919 (Incl. 1-3)

2200885

Unavailable

4

KIT,PISTON ASM,STD,PWC Substituted by 2200921 (Incl. 1-3)

2200883

Unavailable

5

BEARING,CONNECT.ROD

3584001

Unavailable

5

BEARING,CONNECT.ROD

3584001

Unavailable

6

KIT,CONN.ROD ASM.(PWC) Substituted by 2201022 (Incl. 7-9)

2200674

Unavailable

6

KIT,CONN.ROD ASM.(PWC) Substituted by 2201022 (Incl. 7-9)

2200674

Unavailable

7

Bearing, Connecting Rod (See Ref. 6)

-------

Unavailable

7

Bearing, Connecting Rod (See Ref. 6)

-------

Unavailable

8

Pin, Crankshaft (See Ref. 6)

-------

Unavailable

8

Pin, Crankshaft (See Ref. 6)

-------

Unavailable

9

Washer, Thrust (See Ref. 6)

-------

Unavailable

9

Washer, Thrust (See Ref. 6)

-------

Unavailable

9

Washer, Thrust (See Ref. 6)

-------

Unavailable

9

Washer, Thrust (See Ref. 6)

-------

Unavailable

10

NUT,HEX,(PUMP DRIVE)

5020779

Unavailable

11

WASHER(10)

7555907

$5.59

12

Seal

3610044

$24.27

13

RING,RETAINING,(10)

7710441

Unavailable

13

RING,RETAINING,(10)

7710441

Unavailable

14

BEARING,DEEP GROOVE Substituted by 3585503

3585501

Unavailable

14

BEARING,DEEP GROOVE Substituted by 3585503

3585501

Unavailable

15

BUSHING(10)

7555905

$3.99

15

BUSHING(10)

7555905

$3.99

16

KEY,WOODRUFF(10)

7721117

$24.99

17

CRANKWEB,MAG.

5131085

Unavailable

18

Labyrinth

5131086

Unavailable

19

CRANKWEB,CTR,BIGBORE

5131084

Unavailable

20

CRANKWEB,PTO,BIGBORE

5131083

Unavailable

21

SEAL Substituted by 5411524

5410913

Unavailable

22

RING,RETAINING(10)

7710435

Unavailable

23

O RING,(10)

5410613

$1.99

24

COLLAR,CRANKSHAFT

5131195

Unavailable
