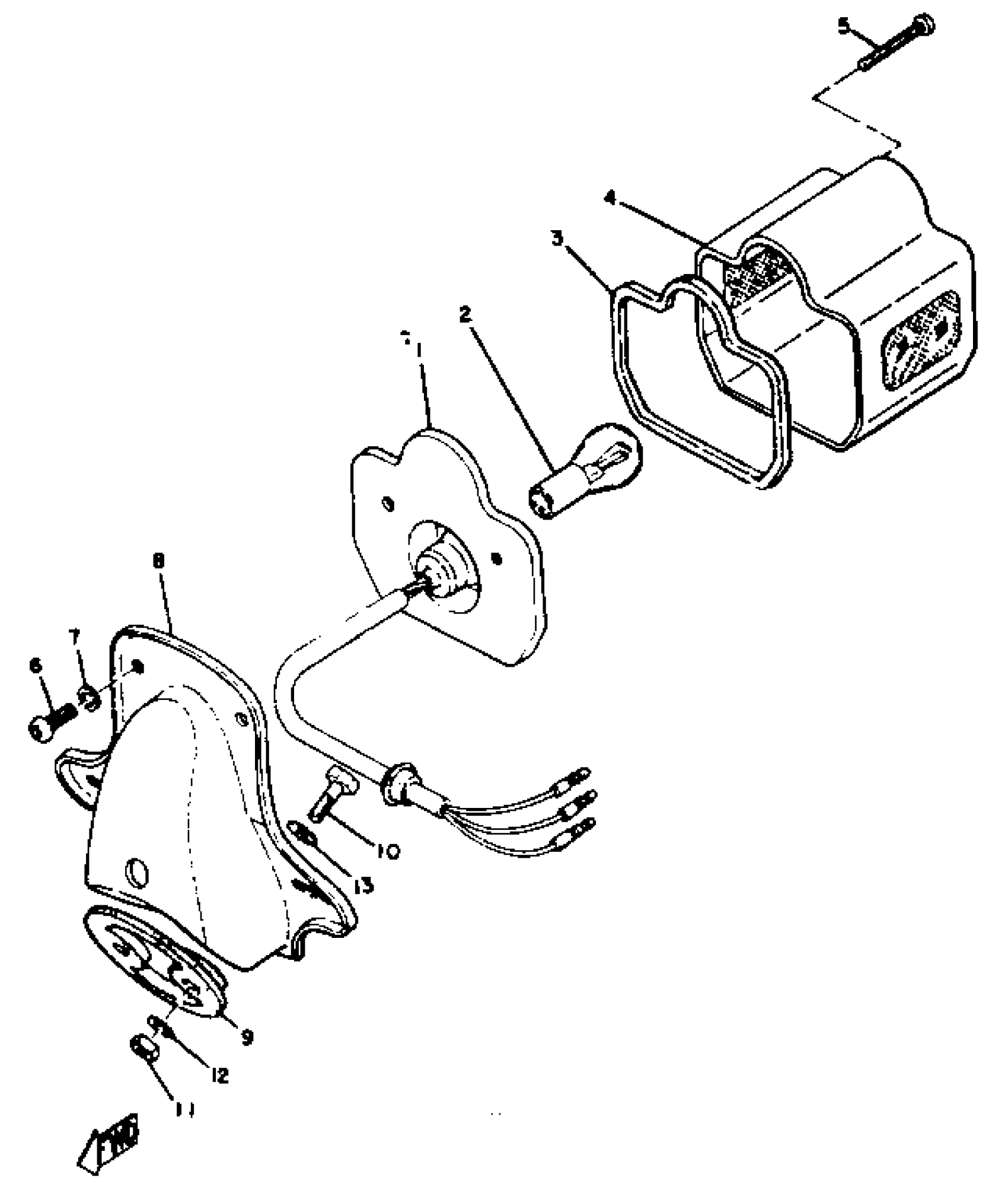

Yamaha HT1 (HT1) 1970 TAIL LAMP (HT1) Diagram

#

Description

Price

1

TAILLIGHT UNIT ASSEMBLY

(251-84510-60-00)

Unavailable

1

BASE, TAILLIGHT

(261-84711-60-00)

Unavailable

2

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

Unavailable

3

SEAT, BASE

(168-84712-60-00)

Unavailable

4

. LENS, TAILLIGHT

(168-84721-60-00)

Unavailable

5

. SCREW, RIM ADJUSTING

3AA-84331-00-00

Unavailable

6

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

7

WASHER, SPRING

92995-06100-00

Unavailable

8

BRACKET, LICENSE

(164-84751-60-35)

Unavailable

9

DAMPER

(248-84553-00-00)

Unavailable

10

BOLT 337847520000

90109-06005-00

$7.49

11

NUT, HEXAGON

95380-06600-00

Unavailable

12

WASHER, SPRING

92995-06100-00

Unavailable

13

WASHER, PLATE (5J0)

90201-085E6-00

$10.49
