1970 Yamaha HT1 (HT1) Kick Diagram

← All diagrams

Find the part on the Kick diagram for your 1970 Yamaha HT1 (HT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

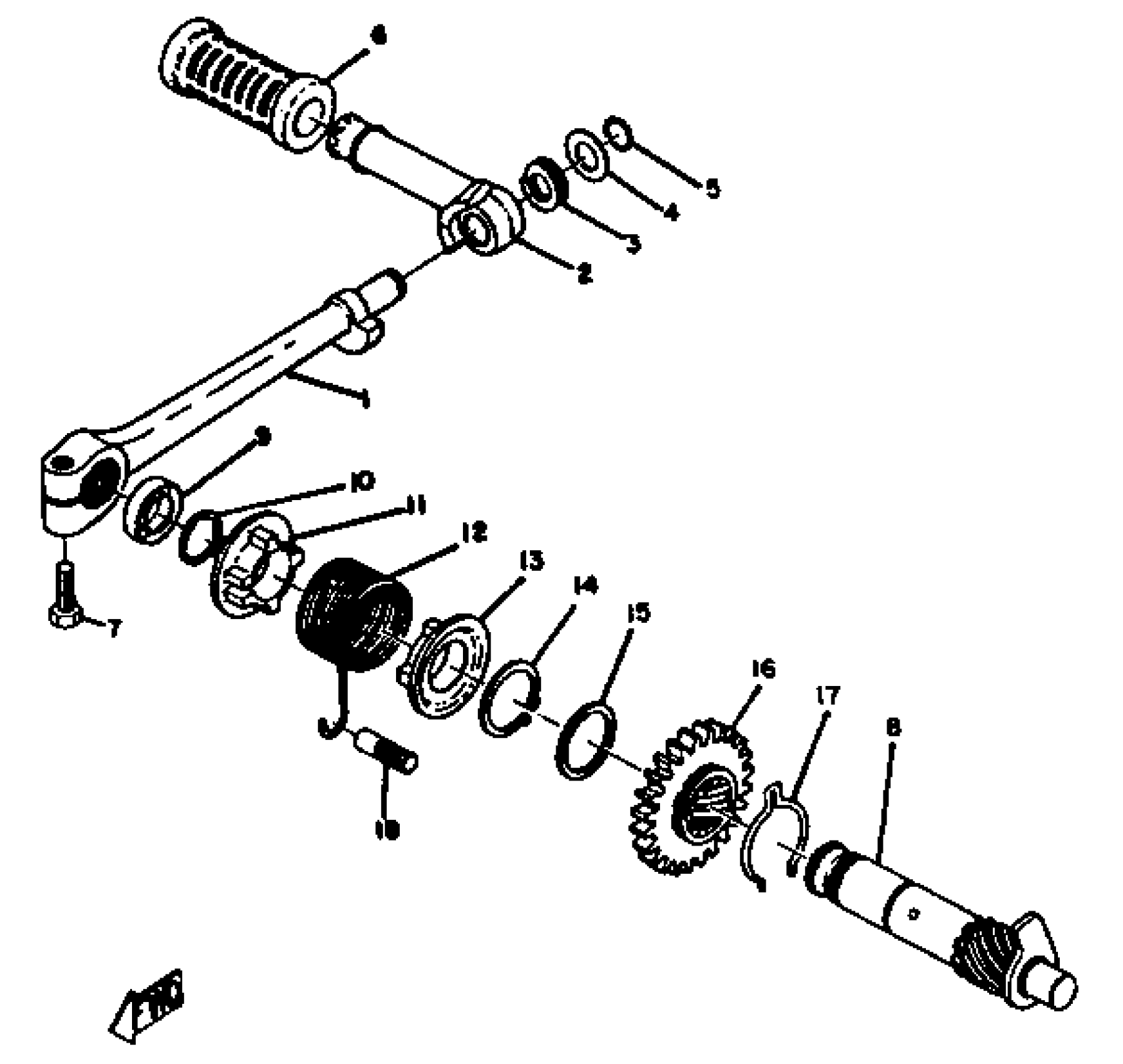

1970 Yamaha HT1 (HT1) Kick Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK CRANK ASSY

4BC-15620-00-00

1
Out of stock

2

LEVER, KICK

(214-15612-09-00)

1
Out of stock

3

SPRING,KICK CRANK

214-15625-00-00

1
Out of stock

4

WASHER,SPEC'L SHAPE

90209-10210-00

1
Out of stock

5

. CIRCLIP, OUTER

93440-10028-00

1
Out of stock

6

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

7

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

8

KICK AXLE ASSY

99999-01740-00

1
Out of stock

9

OIL SEAL (15X26X6-102)

93109-15001-00

1

$7.42

In stock

10

CIRCLIP(1AR)

99009-15400-00

1

$5.10

In stock

11

COVER, KICK SPRING

132-15676-01-00

—

$9.02

In stock

12

SPRING TORSION 304156650000

90508-26136-00

—
Out of stock

13

GUIDE, KICK SPRING

132-15664-01-00

1
Out of stock

14

CIRCLIP (256)

93410-25017-00

1
Out of stock

15

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

16

GEAR, KICK

251-15641-01-00

1
Out of stock

17

CLIP 315156870000

90468-26048-00

—
Out of stock

18

STOPPER, KICK SPRING

257-15668-00-00

1
Out of stock
